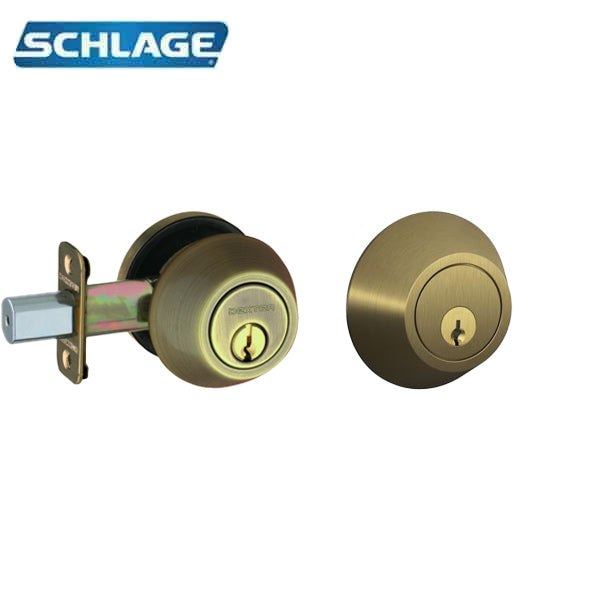

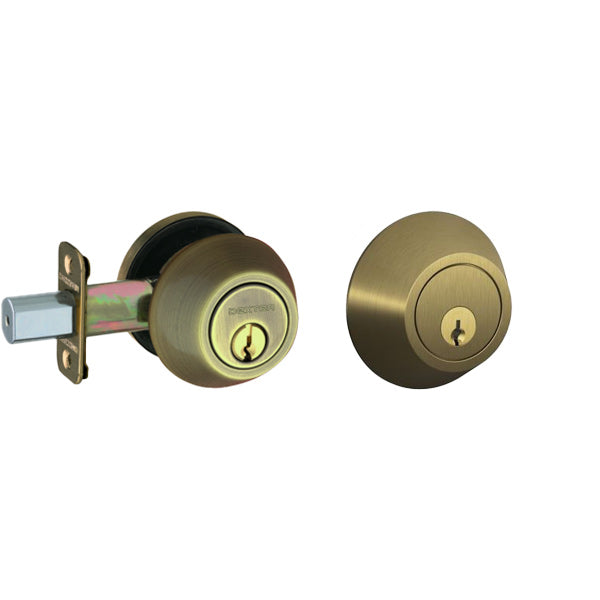

Schlage - JD60 - Single Cylinder Deadbolt Lock - 5-Pin - C-Keyway - Antique Brass - Grade 3
In Stock
SKU:
SCH-JD60-609
NSID:
76238
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $27.32
-
$32.07 - $27.32
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Designed and certified to the ANSI/BHMA rating of CCC (GOOD) in security, durability, and finish, Schlage's J Series line delivers dependable door hardware at an exceptional value. Backed by the 100-year legacy of Schlage, this single-cylinder deadbolt offers a reliable and stylish option to upgrade or refresh your door hardware, no matter your budget. Installs in minutes with a screwdriver and comes with a limited lifetime mechanical warranty, Schlage makes updating your home easy and achievable.
Features:
- Single Cylinder Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Applications: Residential single and multi-family doors
- Backset: Universal deadbolts fit 2-3/8" or 2-3/4" backset
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification: ANSI/BHMA A156.36-2010 Grade 3 Residential Standard Certification: ANSI/BHMA A156.40-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5-Year Finish Warranty
- Keying: 5-pin, C keyway with 2 keys
- UL Listed: Available in box pack for JD60, JD80 and JD81
Specifications:
| Keying | 5-pin, C keyway with 2 keys |
| UL Listed | Available in box pack for JD60, JD80, and JD81 |
| Warranty | Manufacturer's lifetime Mechanical Warranty and 5-year finish warranty |
| Backset | Universal deadbolts fit 2-3/8" or 2-3/4" backset |
| Door Thickness | Door thickness range: 1-3/8" to 1-3/4" standard |
| Certifications | ANSI/BHMA A156.36-2010 Grade 3 |
| Projection | 1.0000 |
| Rose/Escutcheon | Round Rose |
| Bore Size | 2.1250 |
| Door Cross Bore | 2.125 inch |
| Keying Charges | Residential Conventional |
| ADA Compliant | No |
| Door Edge Bore | 1 inch |
| Cylinder Included | Yes |
| Strike Size | 2-1/4" x 1" |
| Latch Bolt Type | Deadbolt |
| Latch Bolt Faceplate Size | 2-1/4" x 1" |
| Latch Bolt Face Type | Drive-in, Round Corner, Square Corner |
| Knob/Lever Style | Inside Thumbturn |
| Latch Bolt Throw | 1" |
