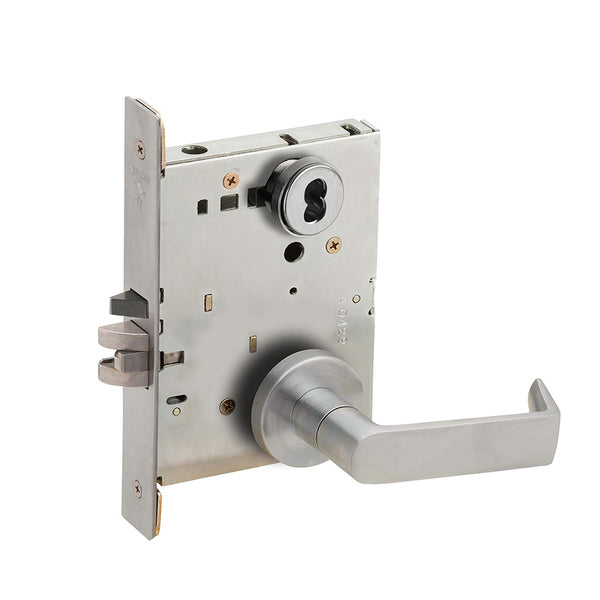

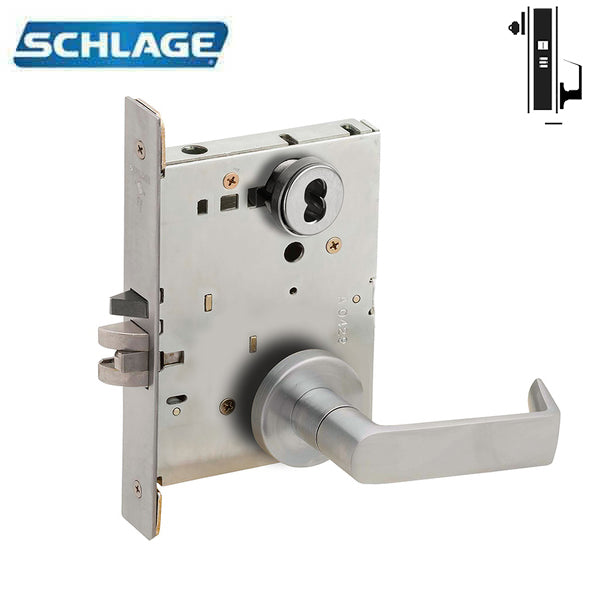

*Discontinued* Schlage - L9026J - L Series Mortise Lock with Latchbolt - Less FSIC - Fire Rated - Satin Chrome - Grade 1

*Discontinued* Schlage - L9026J - L Series Mortise Lock with Latchbolt - Less FSIC - Fire Rated - Satin Chrome - Grade 1

Discontinued
SKU SCH-L9026J-06A-626 NSID 38015
$455.00$546.00On Sale You save $91.00 (17%)


The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today.

Features

  • Fire Rated
  • Grade 1
  • Non-Handed Field Reversible
  • Less FSIC Cylinder

View full details

Details

Specifications

Lock Function

9026-Exit Lock with Cylinder
Handing Non-Handed - Field Reversible
Door Thickness 1 3/4" (44 mm)
Cylinder 6-pin Schlage Classic FSIC (Not Included)
Backset 2 3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Material Stainless Steel / Zinc
Case size 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)
Keyway
 Schlage C Keyway
Strike 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box
Certifications
 ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fire Door
Manufacturer Warranty 3 Years
