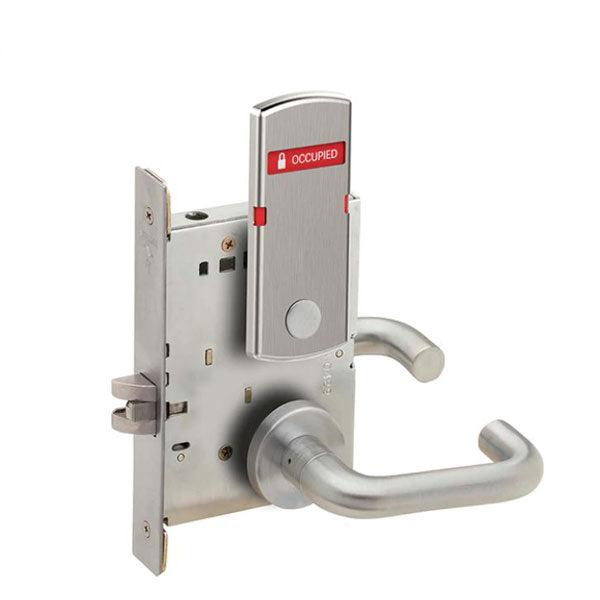

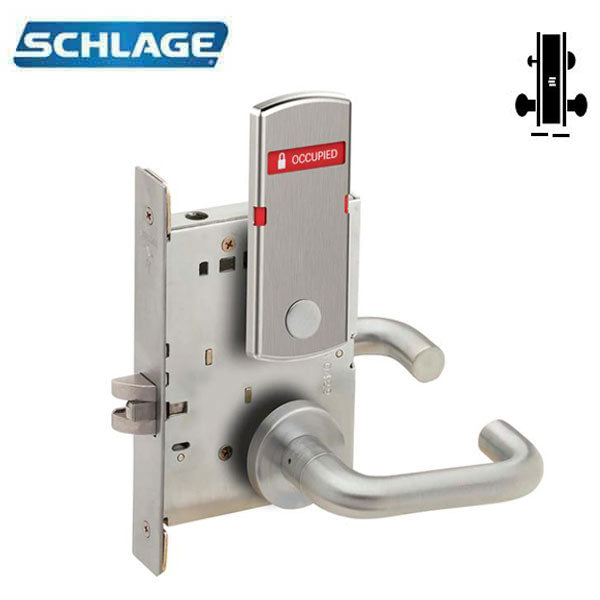

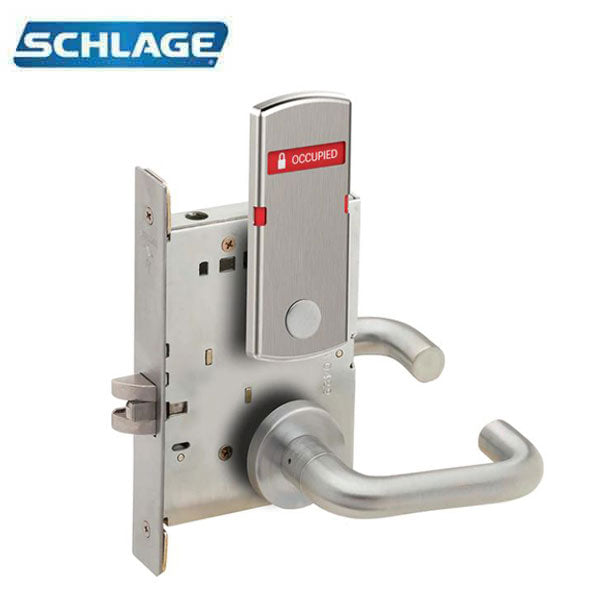

Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Exit Indicator - Privacy - Fire Rated - Satin Chrome - Grade 1

Available to Order
SKU: SCH-L9040-03A-626-L283-722
NSID: 32793

Please Note: This product ships within 2 Days

$620.00
$744.00
$620.00


The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The 180 degree visibility indicator offers unparalleled visibility and flexibility. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.

Features

  • 2" x 1⁄2" display for easy viewing at a distance
  • 180° window for visibility at any angle
  • High-mount placement for quick assessment
  • High contrast colors for ease of reading
  • Available for over 30 functions, inside or outside of door
  • Retrofit kit allows indicator upgrades to already installed L Series mortise locks
  • Indicator text available in English or French

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Lock Function

9040-Privacy - Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn.
Actuating inside lever or closing door unlocks outside lever.
To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate• Inside lever always free for immediate egress.

Exit Indicator Vacant/Occupied
Handing Non-Hand
Door Thickness 1-3/4" (44 mm)
Cylinder Non-Keyed
Backset 2-3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Strike ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16" (30 mm) lip to center with dust box
Lever 03 Lever
Rose A Rose - 2 1⁄8" (54 mm) diameter
Material Stainless Steel / Zinc
Case size 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Strike 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box
Fire Rated 3 Hour Fire Door
Certifications
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
UL/cUL Listed, UL 10C
Manufacturer Warranty 3 year limited mechanical
