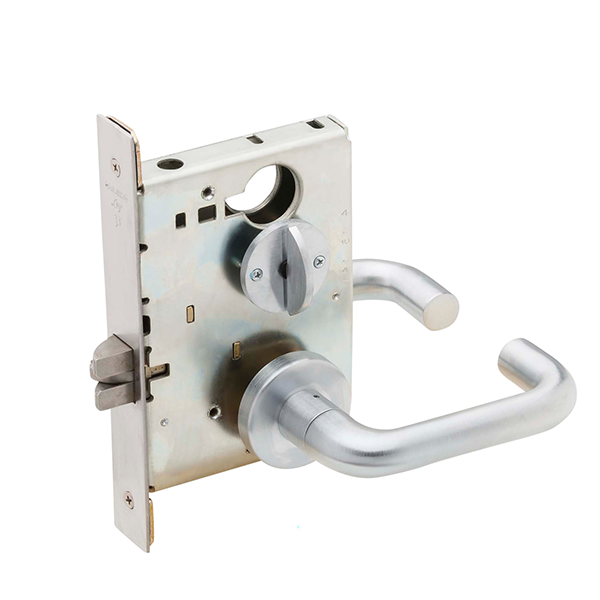

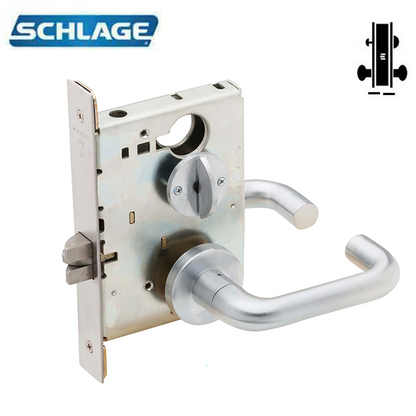

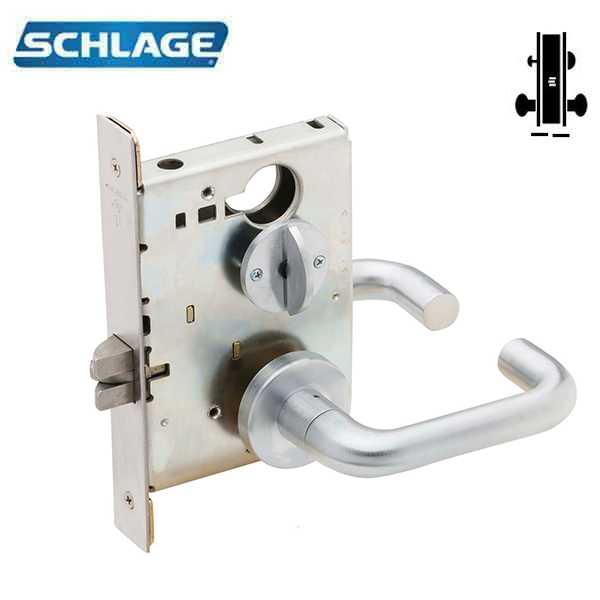

Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1
Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1
Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1
Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1
Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1

Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Privacy - Fire Rated - Satin Chrome - Grade 1

$525.92 $744.00
Availability: In Stock
Wishlist
  • Product SKU: SCH-L9040-03A-626
  • NSID: 38458
  • SCH-L9040-03A-626

    The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.

    More Information Below:

    •


    $525.92
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

Lock Function

9040-Privacy - Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn.
Actuating inside lever or closing door unlocks outside lever.
To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate• Inside lever always free for immediate egress.

Handing Non-Hand
Door Thickness 1-3/4" (44 mm)
Cylinder Non-Keyed
Backset 2-3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Strike ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16" (30 mm) lip to center with dust box
Lever 03 Lever
Rose A Rose - 2 1⁄8" (54 mm) diameter
Material Stainless Steel / Zinc
Case size 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Strike 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box
Fire Rated 3 Hour Fire Door
Certifications
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
UL/cUL Listed, UL 10C
Manufacturer Warranty 3 year limited mechanical



Downloads

SCH-L9040-03A-626

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.

More Information Below:

  •

Specifications

Lock Function

9040-Privacy - Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn.
Actuating inside lever or closing door unlocks outside lever.
To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate• Inside lever always free for immediate egress.

Handing Non-Hand
Door Thickness 1-3/4" (44 mm)
Cylinder Non-Keyed
Backset 2-3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Strike ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16" (30 mm) lip to center with dust box
Lever 03 Lever
Rose A Rose - 2 1⁄8" (54 mm) diameter
Material Stainless Steel / Zinc
Case size 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Strike 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box
Fire Rated 3 Hour Fire Door
Certifications
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
UL/cUL Listed, UL 10C
Manufacturer Warranty 3 year limited mechanical
