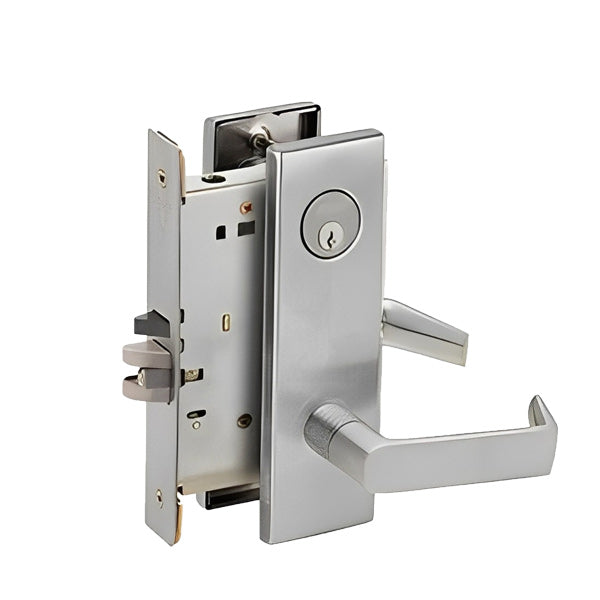

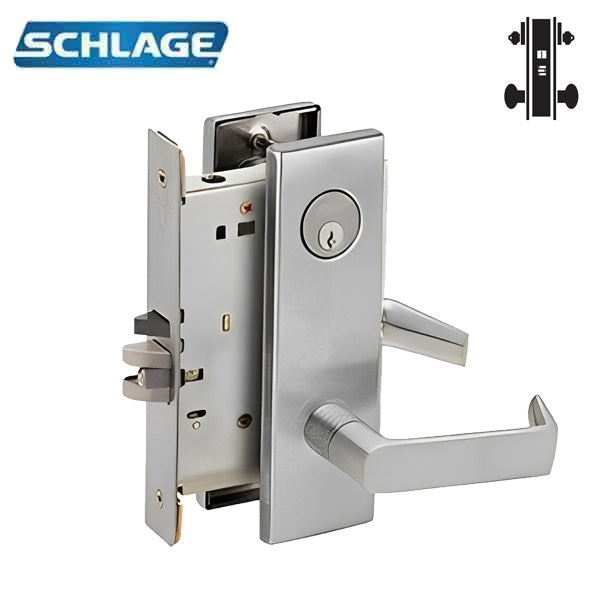

*Discontinued* Schlage - L9060P - Mortise Lock with 06 Lever - Schalge C Keyway - 6 Pin Cylinder - Apartment Entrance Lock - Satin Chrome - Grade 1
*Discontinued* Schlage - L9060P - Mortise Lock with 06 Lever - Schalge C Keyway - 6 Pin Cylinder - Apartment Entrance Lock - Satin Chrome - Grade 1
$954.80$1,145.76On Sale
You save $190.96 (17%)
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Features
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
- 478 ANSI Strike
Details
Specifications
| Lock Function |
9060 - Apartment Entrance Lock - Latchbolt retracted by knob/ lever from either side unless outside is locked by key from inside When locked, latchbolt retracted by outside key or inside knob/lever Auxiliary latch deadlocks latchbolt when door is closed Inside lever always free for immediate egress |
| Door Thickness | 1-3/4" |
| Cylinder | 10-072 cylinder keyed different, with 2 keys |
| Backset | 2-3/4" |
| Keyway | Schlage C Keyway |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4-7⁄16" x 6-1⁄16" x 1" |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Armored Row | 1-1/4" x 8" x 7/32" standard |
| Fire Rating | “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Certifications |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
Downloads
