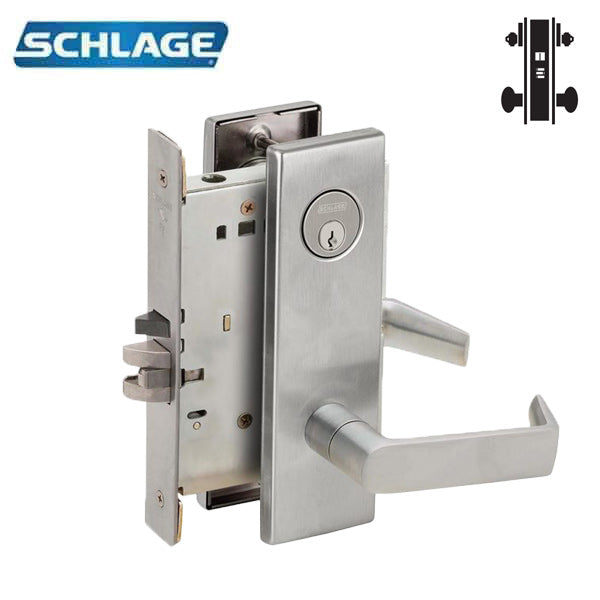

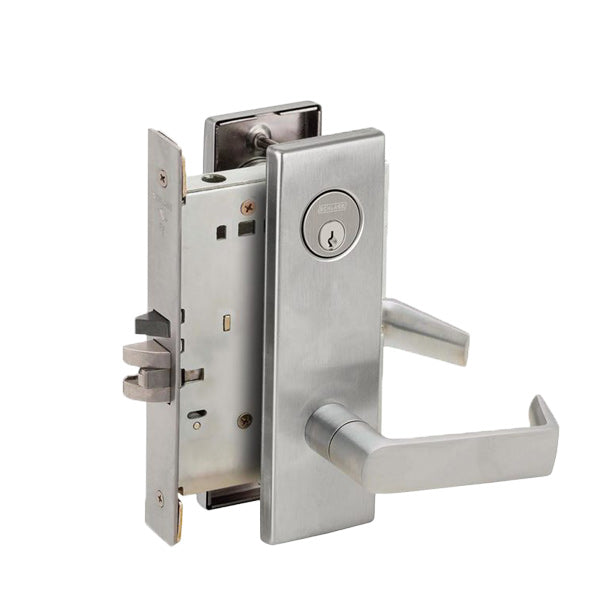

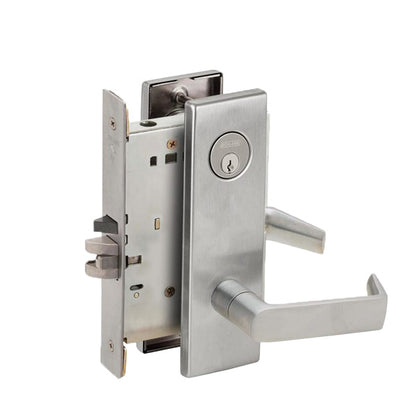

*Discontinued* Schlage - L9071 - Mortise Lock with 06 Lever - Schalge C Keyway - 6 Pin Cylinder - Classroom - Satin Chrome - Grade 1
Out of Stock
SKU:
SCH-L9071-06N-626
NSID:
67481
- $954.80
-
$1,145.76 - $954.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Features
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
- 478 ANSI Strike
- $954.80
-
$1,145.76 - $954.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Lock Function |
9071 - Classroom - Latchbolt retracted by lever (or knob) from |
| Door Thickness | 1-3/4" |
| Cylinder | 10-072 cylinder keyed different, with 2 keys |
| Backset | 2-3/4" |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4-7⁄16" x 6-1⁄16" x 1" |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Armored Row | 1-1/4" x 8" x 7/32" standard |
| Fire Rating | “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Certifications |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
