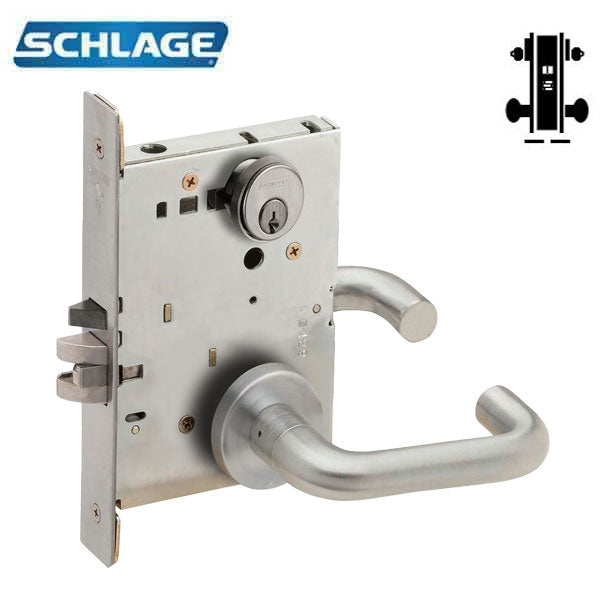

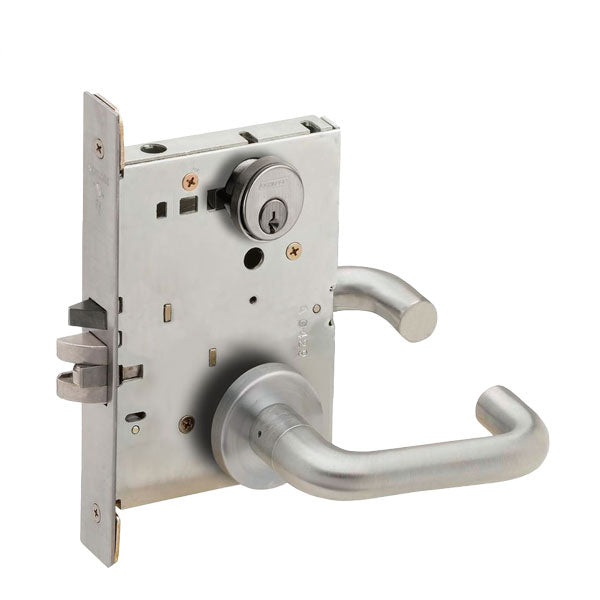

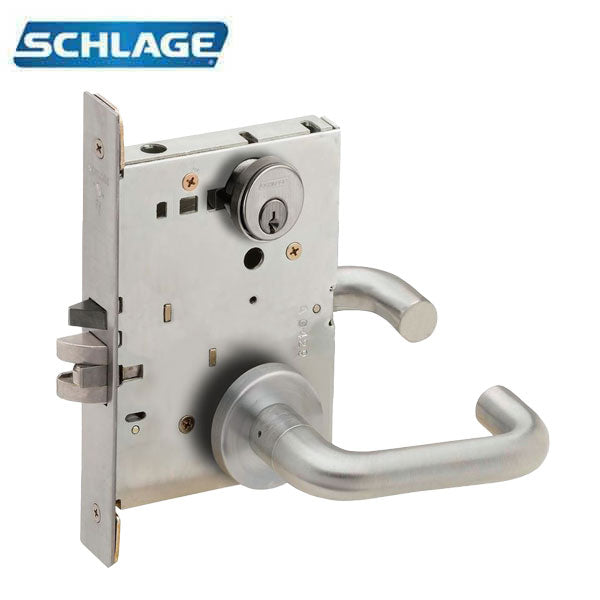

Schlage - L9082P - L Series Mortise Lock - Institutional - Keyed Cylinder - Fired Rated - Satin Chrome - Grade 1
Available to Order
SKU:
SCH-L9082P-03A-626
NSID:
32794
- $672.00
-
$806.40 - $672.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application
More Information Below
| Lock Function | ANSI F30 Institution lock - Latchbolt Retracted by Key From Either Side, Knob/Lever on Both Sides Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked |
| Handing | Non-Handed |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | 6-pin Cylinder |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Lever | 03 Lever |
| Rosa | A Rose |
| Material | Stainless Steel / Zinc |
| Case size | 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm) |
| Strike | ANSI curved lip strike: 1-1/4" x 4-7/8" (32 mm x 124 mm) x 1-3/16" (30 mm) lip to center with dust box |
| Fire Rated | 3 Hour Fire Door |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL/cUL Listed UL 10C |
| Manufacturer Warranty | 3 year limited mechanical |
