Schlage

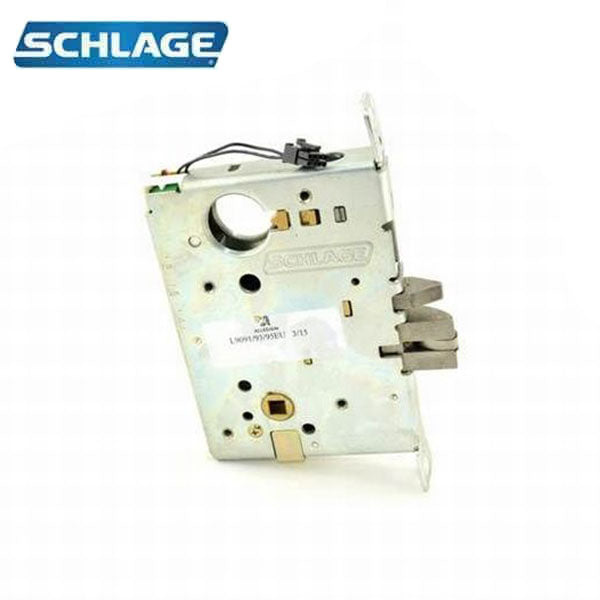

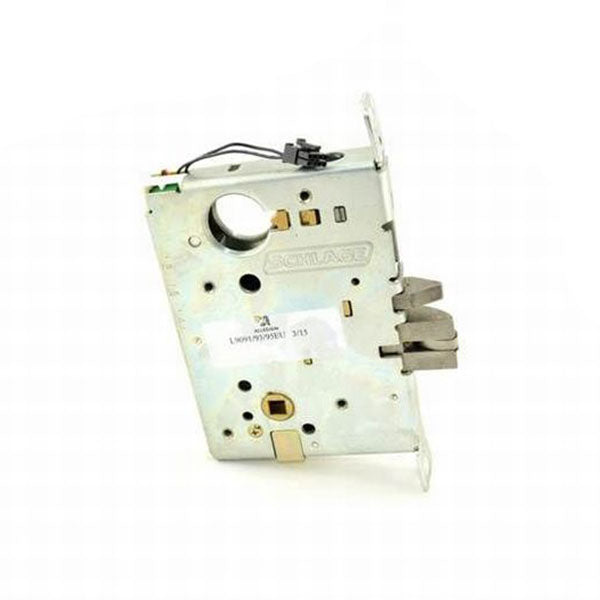

Schlage - L9091LB - Electrified Mortise Lock Body - Safe/Fail Secure - 12/24VDC - Grade 1

Schlage - L9091LB - Electrified Mortise Lock Body - Safe/Fail Secure - 12/24VDC - Grade 1

Available to order
SKU SCH-L9091LB NSID 68397
$465.20$558.24On Sale You save $93.04 (17%)
Please Note: This product has a lead time

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today.

Features

  • Electrified Lock Body
  • L Series
  • Grade 1
  • Made With Strong Materials
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Lock Function

9091LB-Electrified Mortise Lock Body
Field Selectable (Safe/Secure)
Handing Non Handed - Field Reversible
Door Thickness 1 3/4" (44 mm)
Backset 2 3/4" (70 mm) only
Bolt Projection 3/4 In.
Material Stainless Steel / Zinc
Amp Draw
 400mA
Lock Face Size 8 In. X 1-1/4 In.
Strike 10-072 Strike
Certifications
 ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fire Door
Manufacturer Warranty 3 year limited mechanical and 1 year limited electromechanical
