Details
Specifications

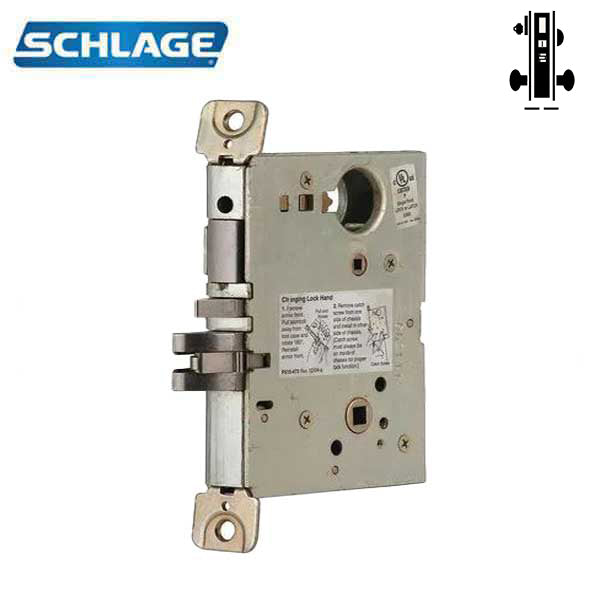

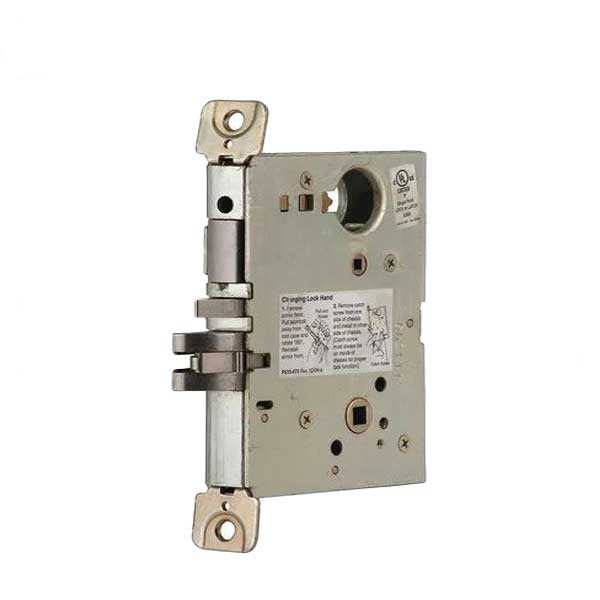

| Lock Function | 9453-Entrance Office Lock with Deadbolt |
| Handing | RH (Right Handed) |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fide Door |
| Manufacturer Warranty | 3 Years |
