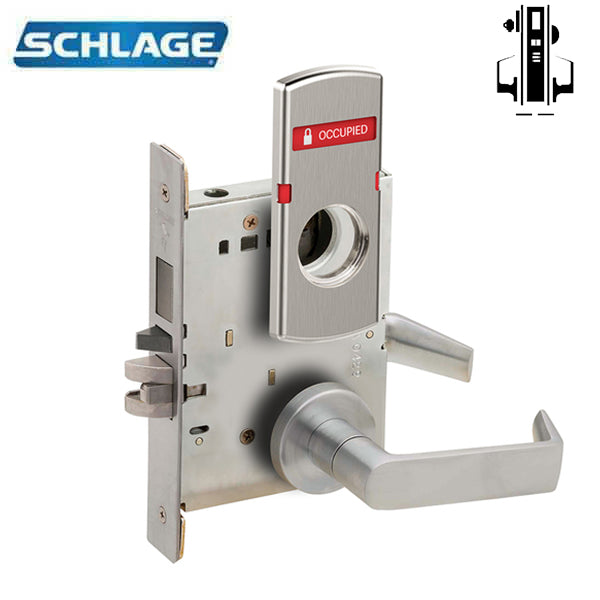

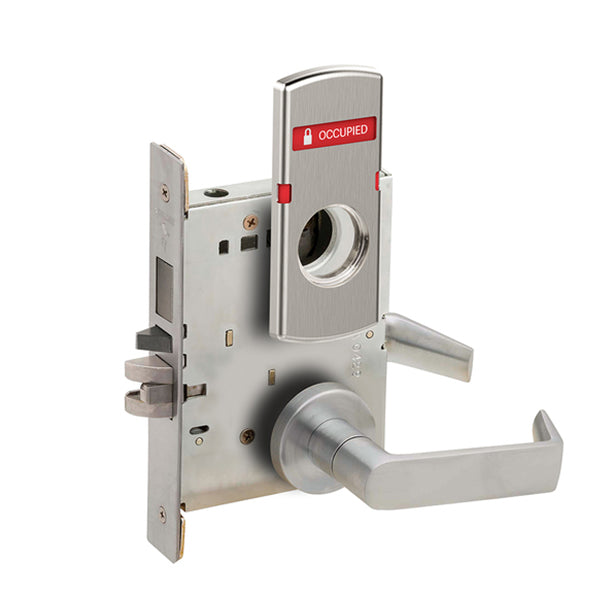

*Discontinued* Schlage - L9485B - L Series Mortise Lockset w/ Deadbolt - Faculty Restroom - Less SFIC - Vacant / Occupied Indicator - Fire Rated - Satin Chrome - Grade 1
*Discontinued* Schlage - L9485B - L Series Mortise Lockset w/ Deadbolt - Faculty Restroom - Less SFIC - Vacant / Occupied Indicator - Fire Rated - Satin Chrome - Grade 1
SCH-L9485B-06A-L283-722-626
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement. Lock bodies are field-reversible without disassembly.
More Information Below:
Details
| Function |
9485 - Faculty Restroom Lock
|
| Lever/Knob Design | 06 Lever |
| Rose/Escutcheon Design | A Rose |
| Cylinder Type | Less - Small Format Interchangeable Core (SFIC) |
| Keying | Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying. |
| Cylinder and Keys |
6-pin Everest C123 keyway cylinder with two patented keys standard. |
| Cylinder Length | 1-1/2 In. |
| Handing | Non-Handed - Field Reversable |
| Door Thickness | 1 3/4” (44 mm) |
| Backset | 2-3/4” (70 mm) only. |
| Lock Face Size | 1 1/4” x 8” x 7/32” |
| Bolt Projection |
3/4" Latch, 1" Deadbolt
|
| Strike | ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. |
| Fire Rated | 3 hours |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
Downloads:
