Schlage

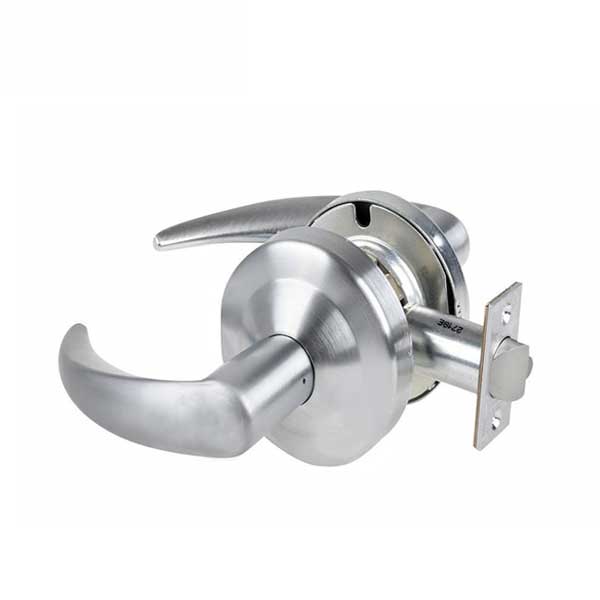

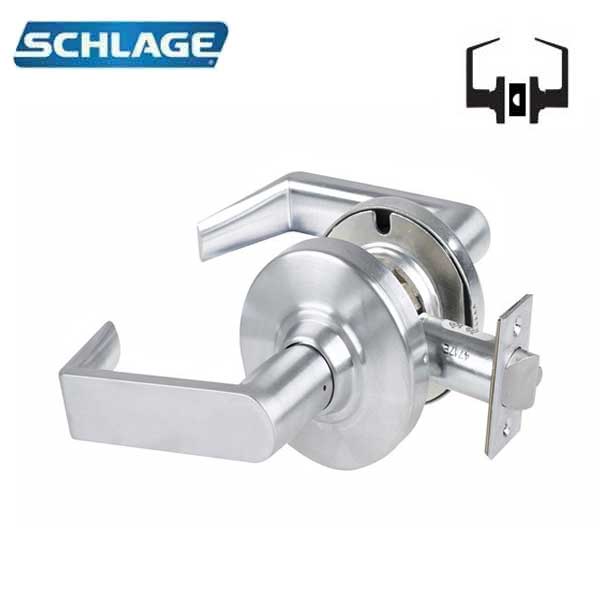

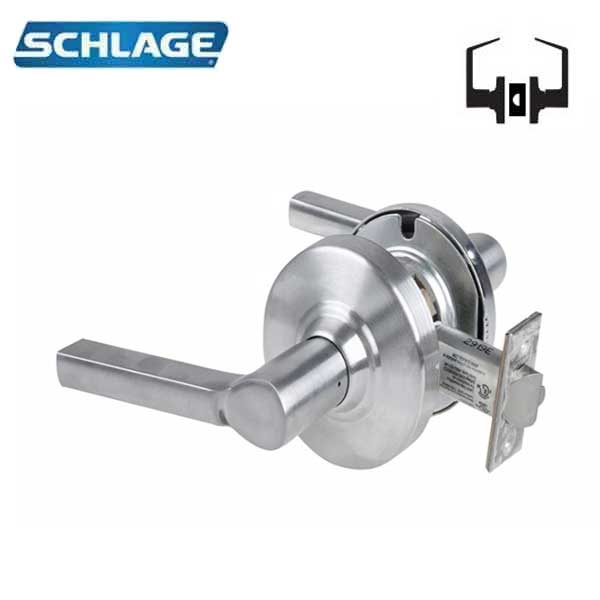

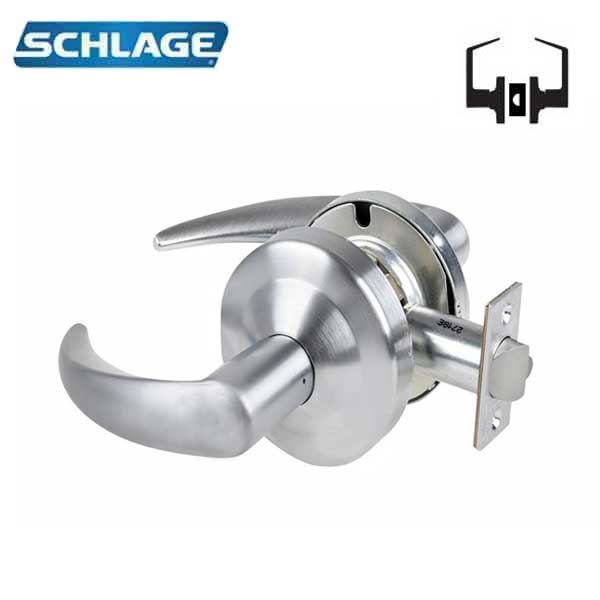

Schlage - ND10S - Commercial Lever Set - Passage - Satin Chrome - Optional Levers - Fire Rated - Grade 1

Schlage - ND10S - Commercial Lever Set - Passage - Satin Chrome - Optional Levers - Fire Rated - Grade 1

Available to order
SKU SCH-ND10S-RHO-626 NSID 26329
$325.08$390.10On Sale You save $65.02 (17%)
Please Note: This product has a lead time
Lever



The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Features

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • Supports standard, SFIC and FSIC cylinder formats
  • Fire Rated for 3 Hours
  • TLR - Tubular Lever Style
  • Support for 10 non-Schlage cores

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

    Chassis
    Material Stainless Steel / Zinc
    Door Thickness 1 5⁄8" to 2 1⁄8"
    Trim
    Lock Function Passage latch - Both levers always unlocked.
    Handing Non-Handed
    Lever Multiple Lever Options
    Finish 626 - Satin Chrome
    Latches
    Backset 2 3⁄4"
    Faceplate Size 1 1⁄8" x 2 1⁄4"
    Bolt 1⁄2" throw
    Strike ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"
    Keying
    Formats 3 Schlage
    Access security 6-Pin
    Fire Rated 3 Hour Positive pressure
    Certifications
    		 ANSI/BHMA, ICC, UL/cUL
    Manufacturer Warranty 10 years mechanical, 1 year wired electrified


    Dimensions ATHENS

    Dimensions RHODES


    Dimensions LATITUDE
