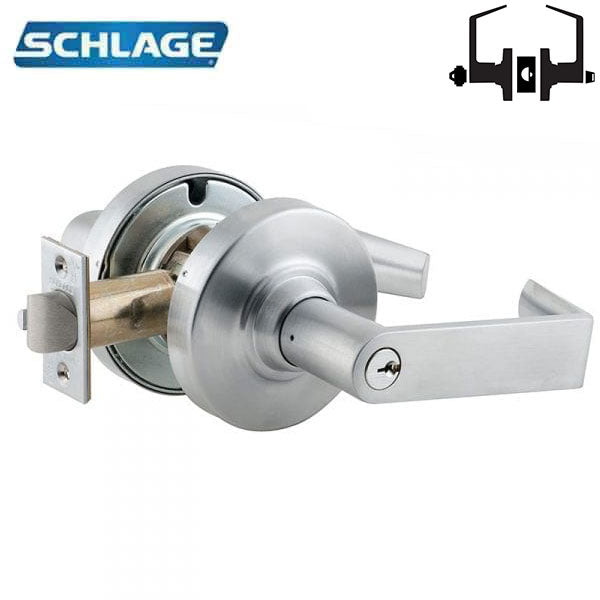

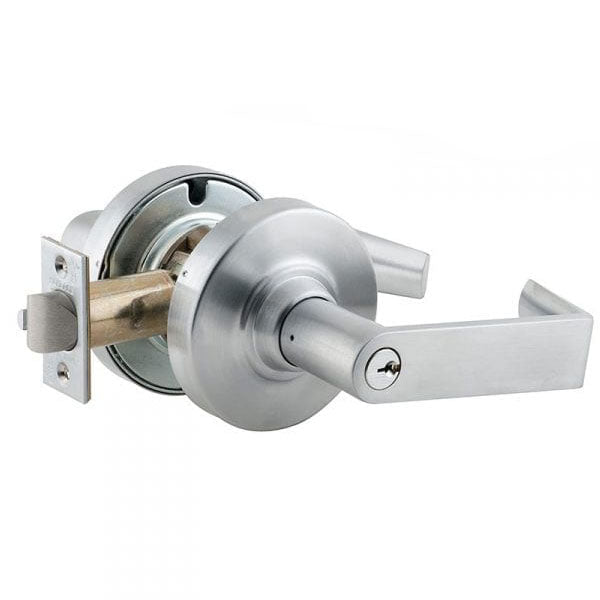

Schlage - ND53PD - Commercial Lever Set - Entrance - Standard Cylinder - Satin Chrome - Rhodes Lever - Fire Rated - Grade 1

Schlage - ND53PD - Commercial Lever Set - Entrance - Standard Cylinder - Satin Chrome - Rhodes Lever - Fire Rated - Grade 1

Available to order
SKU SCH-ND53PD-RHO-626 NSID 66442
$478.17$573.80On Sale You save $95.63 (17%)
Please Note: This product ships within 2 Days

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Features

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • 6-Pin Cylinder (Standard)
  • Fire Rated for 3 Hours
  • RHO - Rhodes Lever
  • Turn/push-button locking: Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked.
  • Push-button locking: Pushing button locks outside lever until unlocked by key or by turning the inside lever.
  • Inside lever always free for immediate egress.
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details



Specifications

    Chassis
    Material Stainless Steel / Zinc
    Door Thickness 1 5⁄8" to 2 1⁄8"
    Trim
    Lock Function Entrance - Turn/Push-button locking
    Handing Non-Handed
    Lever Rhodes Lever
    Finish 626 - Satin Chrome
    Latches
    Backset 2 3⁄4"
    Faceplate Size 1 1⁄8" x 2 1⁄4"
    Bolt 1⁄2" throw
    Strike ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"
    Keying
    Formats

    3 Schlage
    Cylinder 6-Pin cylinder (standard)
    Fire Rated 3 Hour Positive pressure
    Certifications
    		 ANSI/BHMA, ICC, UL/cUL
    Manufacturer Warranty 10 years mechanical, 1 year wired electrified



    Dimensions RHODES
