Schlage

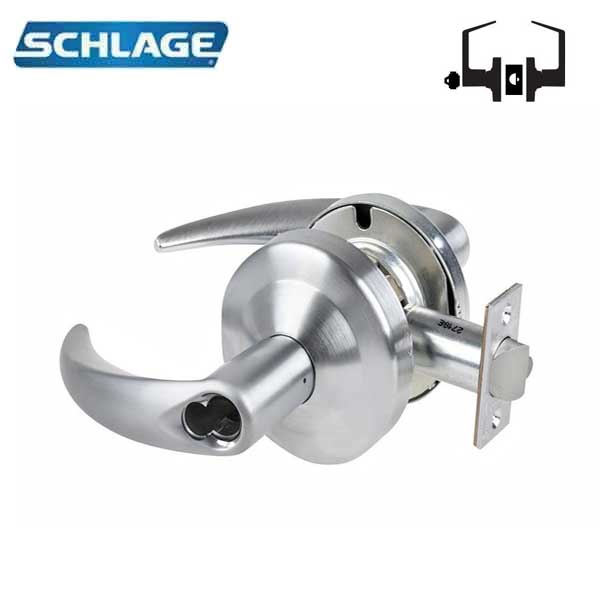

Schlage - ND80BD - Commercial Lever Set - Storeroom - Less SFIC - Satin Chrome - Optional Levers - Fire Rated - Grade 1

Schlage - ND80BD - Commercial Lever Set - Storeroom - Less SFIC - Satin Chrome - Optional Levers - Fire Rated - Grade 1

In stock
SKU SCH-ND80BD-ATH-626 NSID 29901
$414.54$497.45On Sale You save $82.91 (17%)
Get it shipped Today! Order within:
Lever



The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Features

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • Prepped for SFIC cylinder formats
  • Fire Rated for 3 Hours
  • TLR - Tubular Lever Style
  • Support for 10 non-Schlage cores
  • Cylinder NOT INCLUDED
  • Outside lever is fixed.
  • Entrance by key only.
  • Inside lever always free for immediate egress.
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

    Specifications

      Chassis
      Material Stainless Steel / Zinc
      Door Thickness 1 5⁄8" to 2 1⁄8"
      Trim
      Lock Function Storeroom lock - Outside lever is fixed
      Handing Non-Handed
      Lever Multiple Lever Options
      Finish 626 - Satin Chrome
      Latches
      Backset 2 3⁄4"
      Faceplate Size 1 1⁄8" x 2 1⁄4"
      Bolt 1⁄2" throw
      Strike ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"
      Keying
      Formats

      3 Schlage
      Cylinder SFIC Prep Less Core Cylinder Not included
      Access security 6-Pin
      Fire Rated 3 Hour Positive pressure
      Certifications
      		 ANSI/BHMA, ICC, UL/cUL
      Manufacturer Warranty 10 years mechanical, 1 year wired electrified

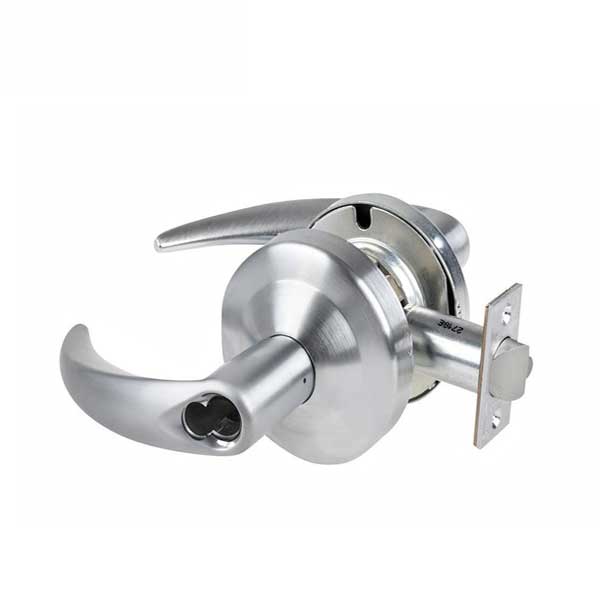

      Dimensions ATHENS

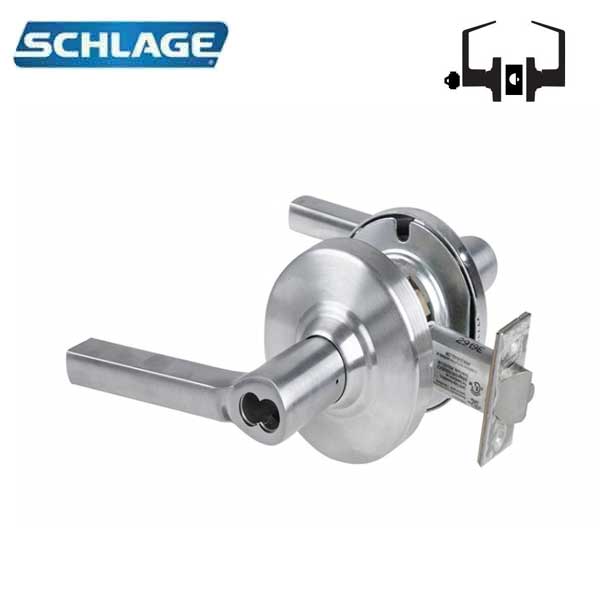

      Dimensions RHODES

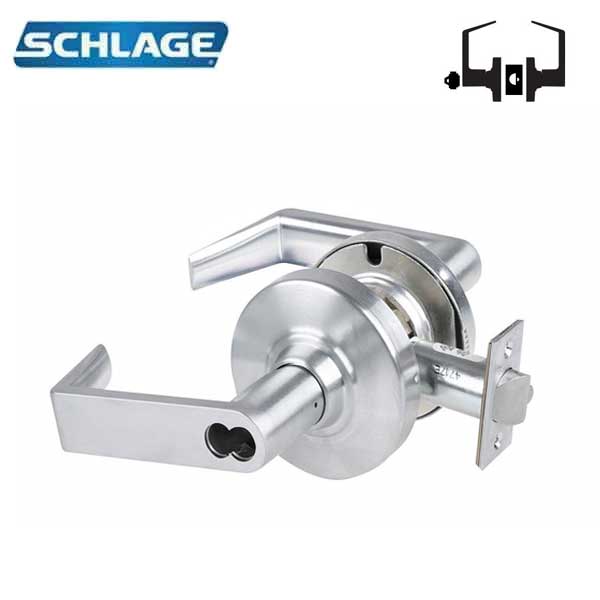

      Dimensions LATITUDE

      Downloads
