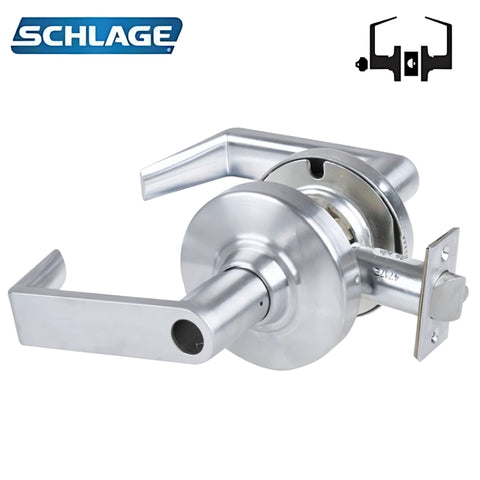

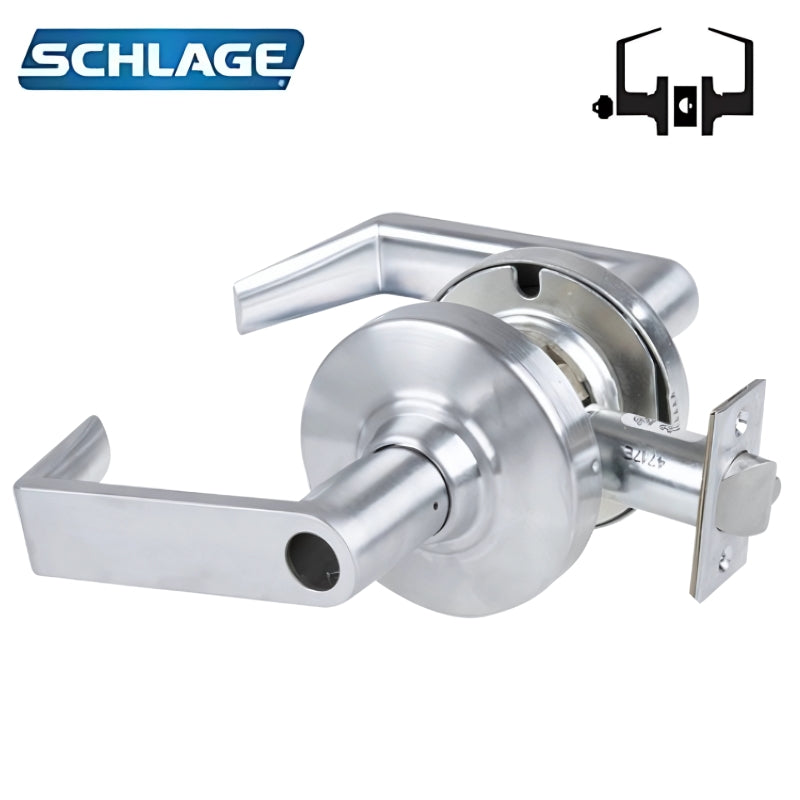

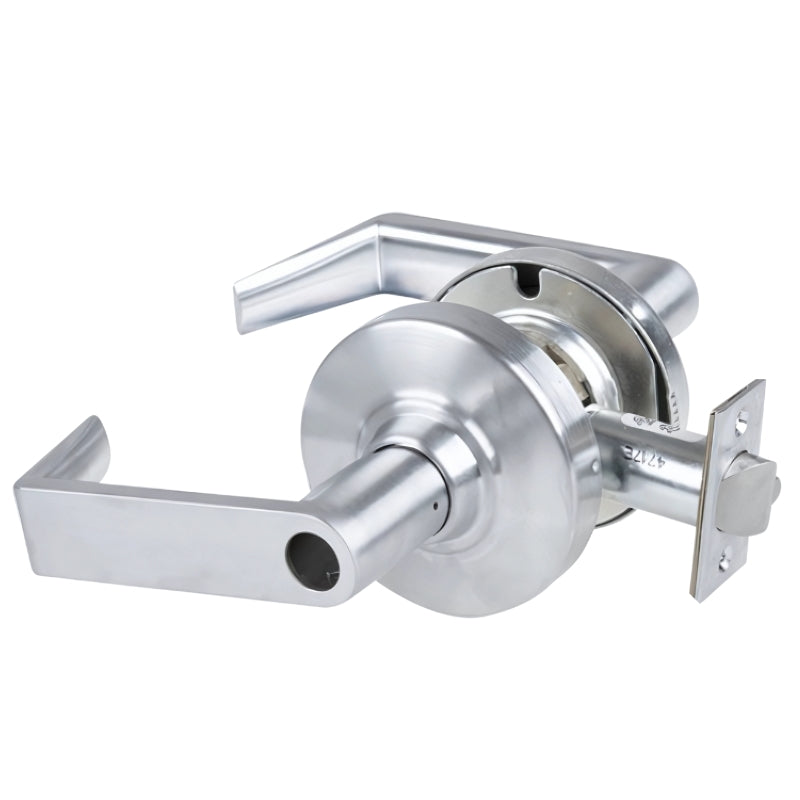

• Schlage ND80LD-RHO-626 storeroom lock with Rhodes lever in satin chrome finish
  • Side profile of Schlage ND80LD commercial door lock showing heavy-duty construction
1 2
Archive

*Discontinued* Schlage - ND80LD - Less Cylinder - Storeroom Lock - Rhodes Lever - Non-Handed - Satin Chrome - Grade 1

*Discontinued* Schlage - ND80LD - Less Cylinder - Storeroom Lock - Rhodes Lever - Non-Handed - Satin Chrome - Grade 1

Discontinued
SKU SCH-ND80LD-RHO-626 NSID 76661
$429.19$515.03On Sale You save $85.84 (17%)

The Schlage ND80LD is a Grade 1 storeroom lock designed for high-security commercial applications. This lock features a Rhodes lever design and comes in a Satin Chrome (626) finish. It is non-handed, allowing for flexible installation on both left and right-handed doors.

Features:

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • Fire Rated for 3 Hours
  • RHOĀ -Ā Rhodes Lever Style
  • Support for 10 non-Schlage cores
View full details

Details

Ā

Specifications

    Lock Function F86 - Storeroom - Outside Lever is Fixed; Entrance by Key Only; Inside Lever Always Unlocked
    Handing Non-Handed
    Door Thickness 1-5/8" to 2-1/8" (41 to 54 mm)
    Faceplate Size 1-1/8" x 2-1/4"
    Cylinder 6-Pin Patented Everest 29
    Keyway Schlage C - KD
    Backset 2 3/4" (70 mm) only
    Bolt 1/2" throw via Oil Impregnated Stainless Steel
    Latch
    		 1"
    Lever RHO - Rhodes Lever Style
    Material Stainless Steel / Zinc
    Rose
    		 3-7/16"
    Strike 1-1/4" x 4-7/8" x 1-3/16"
    Finish 626 - Satin Chrome
    Certifications
    		 ANSI/BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification, Grade 1, Fire Rated for 3 Hours
    Manufacturer Warranty 10 years mechanical
