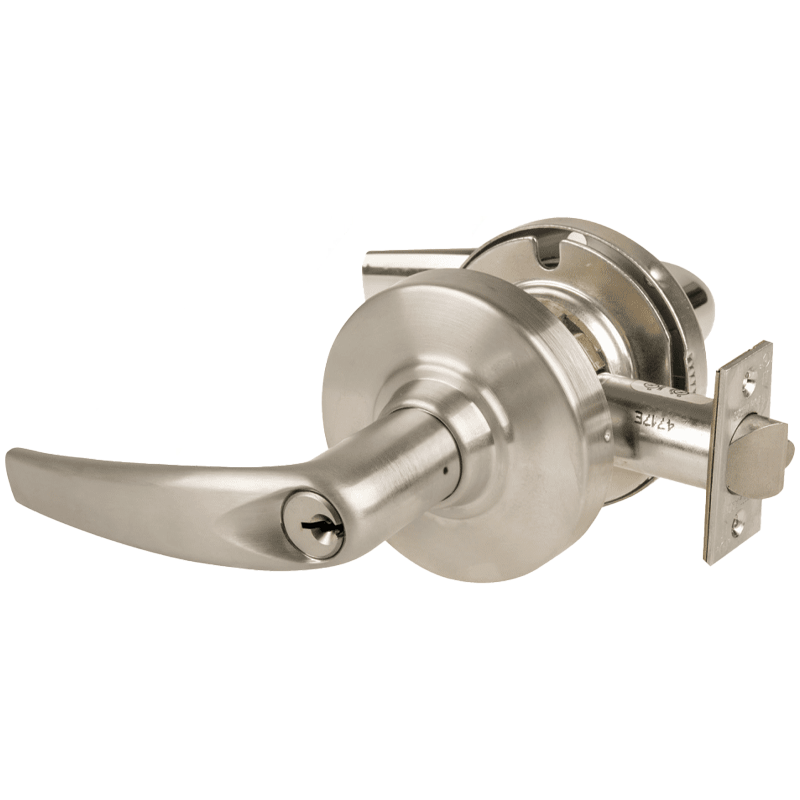

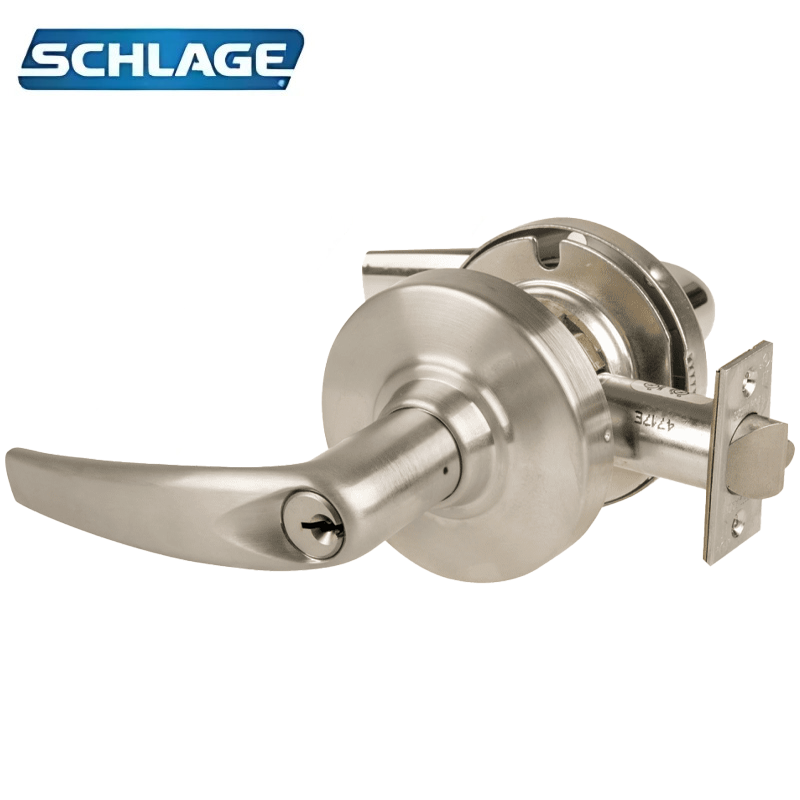

*Discontinued* Schlage - ND80PD - Electrified Cylindrical lock - Storeroom - Athens Lever - Non-Handed - Satin Nickel - Grade 1
Out of Stock
SKU:
SCH-ND80PD-ATH-619
NSID:
79771
- $569.25
-
$683.10 - $569.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features:
- Significantly exceeds ANSI/BHMA A156.2 requirements for grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- Supports standard, SFIC, and FSIC cylinder formats
- Support for 10 non-Schlage cores
- Withstands 3,100 in-lb of abusive lever torque, as well as 1,600 lbs of offset lever pull for protection against pry bar attacks
- Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
- $569.25
-
$683.10 - $569.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Material | Modular design of zinc and steel components plated for corrosion protection |
| Door Thickness | Standard: 1-5/8" to 2-1/8" |
| Lever | Athens |
| Backset | 2-3/4" |
| Faceplate | 1-1/8" x 2-1/4" |
| Bolt | 1/2" throw via Oil impregnated stainless steel |
| Strike | ANSI Curved Lip 1-1/4" x 4-7/8" x 1-3/16" |
| Formats | Standard 3 Schlage (KIL or FSIC or SFIC) |
| Access Security | 6-Pin Patented Everest 29 |
| Warranty | 10-year manufacturer's mechanical warranty, 1-year Wired Electrified, 1-Year Wireless Electronic |
| ICC | Complies with ICC A117.1 Accessible and usable buildings and facilities |
| FL Building Code | Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami-Dade (TAS 201, 202, 203) requirements for hurricanes |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Latch | 1/2" throw, deadlocking - 1-1/8" x 2-1/4" face |
| Usage | Heavy-Duty |
| ADA Compliance | Meets ADA requirements - A117.1 Accessibility Code |
| Rose Escutcheon | 3-7/16" Rose Diameter |
| Bore Hole Diameter | 2-1/8in |
| Handing | Non-Handed |
