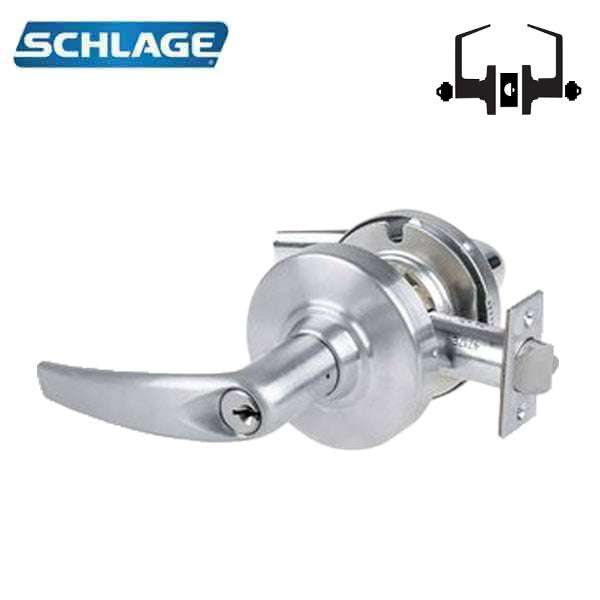

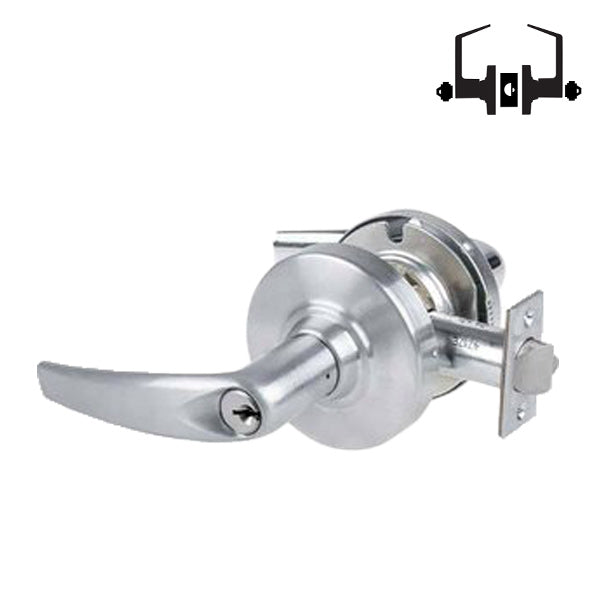

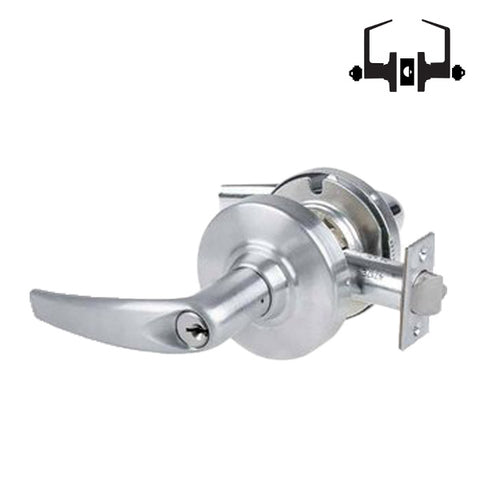

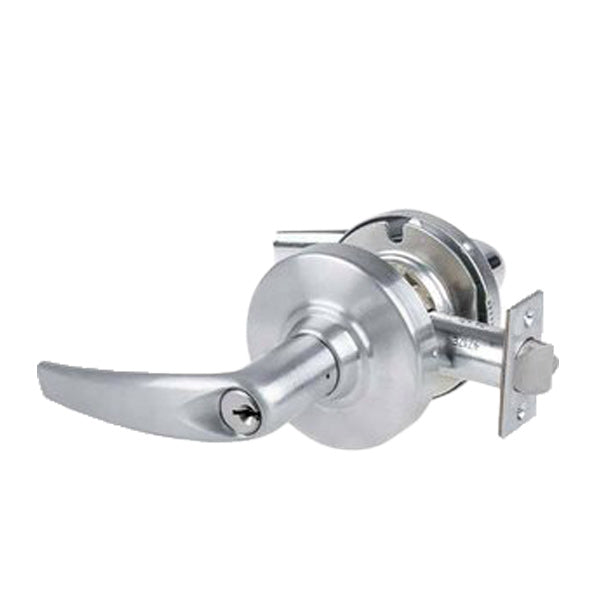

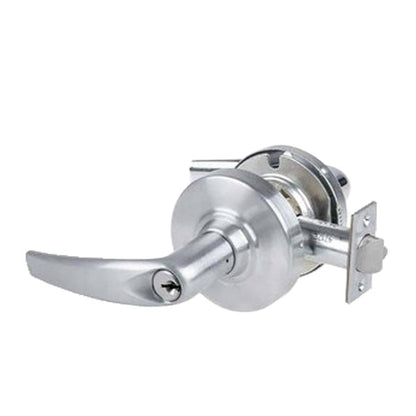

*Discontinued* Schlage - ND82PD - Commercial Lever Set - Institution - Standard Cylinder - Satin Chrome - Athens Levers - Fire Rated - Grade 1
*Discontinued* Schlage - ND82PD - Commercial Lever Set - Institution - Standard Cylinder - Satin Chrome - Athens Levers - Fire Rated - Grade 1
$547.89$657.47On Sale
You save $109.58 (17%)
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Fire Rated for 3 Hours
- TLR - Tubular Lever Style
- Support for 10 non-Schlage cores
- Standard Cylinder Included
- Both Levers always fixed
- Entrance by key in either lever
- Inside lever always free for immediate egress
Details
Specifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 5⁄8" to 2 1⁄8" |
| Trim | |
| Lock Function | Storeroom lock - Outside lever is fixed |
| Handing | Non-Handed |
| Lever | Athens |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Keying | |
| Formats |
3 Schlage |
| Cylinder | Standard Cylinder Included |
| Access security | 6-Pin |
| Fire Rated | 3 Hour Positive pressure |
| Certifications |
ANSI/BHMA, ICC, UL/cUL |
| Manufacturer Warranty | 10 years mechanical, 1 year wired electrified |
Dimensions ATHENS
