SDC - 101-KDENA - Delayed Egress Controller - Selectable Delay - Keyswitch - 12/24VDC - Aluminum - Fire Rated - Grade 1
In Stock
SKU:
SDC-101-KDENA-628
NSID:
32133
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $615.26
-
$738.31 - $615.26
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

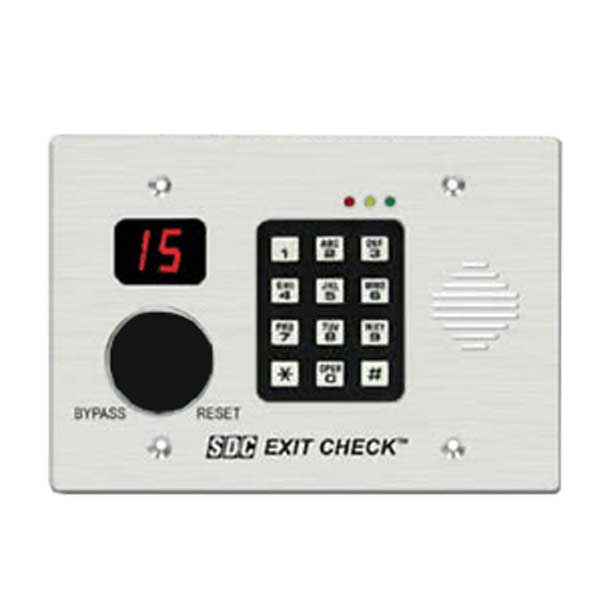

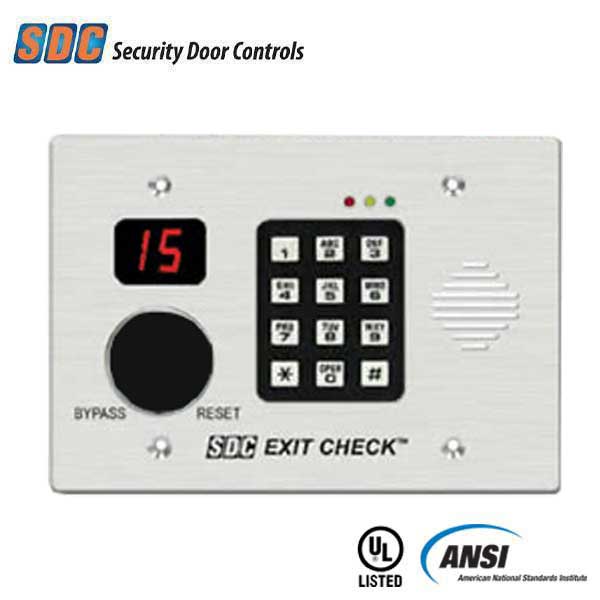

SDC’s 101-DE series delayed egress controllers incorporate all ExitCheck® features into a two piece delayed egress system where the door is closed and secured by delayed egress locking hardware. The 101-DE series delayed egress controller sends power to the slave operating magnetic locks or exit devices to lock the door in a secured position. No Cylinder included
For slave operating magnetic locks SDC-1511DEV-628
Features:
- Activation by door movement or exit bar
- Locked & egress mode status outputs
- Adj. timed bypass 1-30 sec.
- Keypad reset, sustained bypass & timed bypass.
- Mortise keyswitch control (101-KDE)
- UBC & California compliant manual power up
- Auto sensing 12/24VDC voltage Input
- UL, CSFM, MEA Listed
- 3 Gang Controller, Surface Box Optional
Specifications:
| Type: | Keypad & Key Switch Control |
| Construction: | Aluminum |
| Operation: | Selectable Egress Delay |
| Dimensions: | 4-1/2” x 6-7/16” x 2” |
| Voltage: | 12/24 VDC ± 10%; Auto-sensing |
| Current: | 180 mA @ 12/24 VDC (Max) |
| Egress Delay: | Selectable 15 or 30 sec |
| Nuisance Time: | Selectable 1 or 2 sec |
| Reset After Alarm: | Manual |
| Lock On Power Up: | Selectable Locked or Unlocked |
| Finish: | 628 - Aluminum |
| Fire Rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Certifications: | UL, CSFM, MEA, NFPA 101, UBC, IBC, IFC, SBC |
| Manufacturer's Warranty | 5 years |
