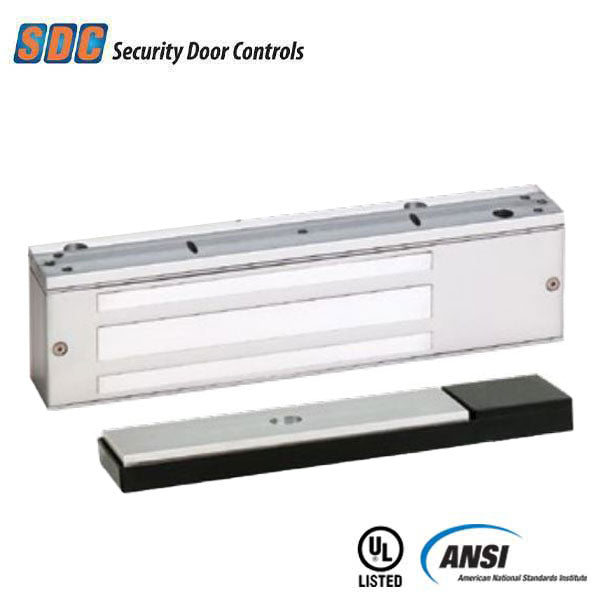

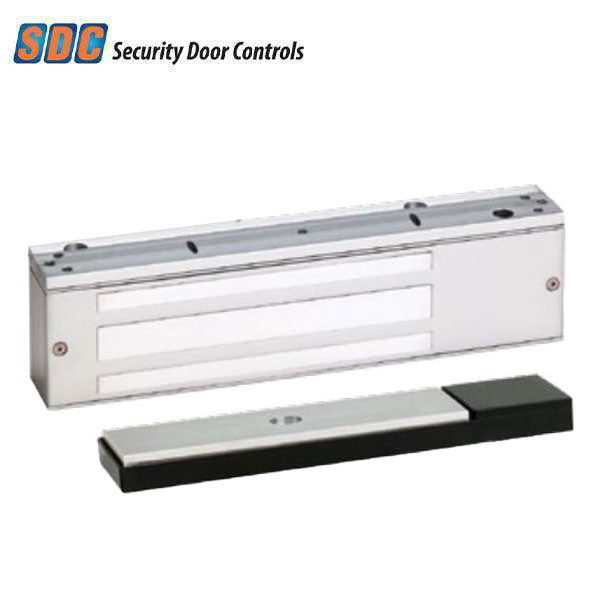

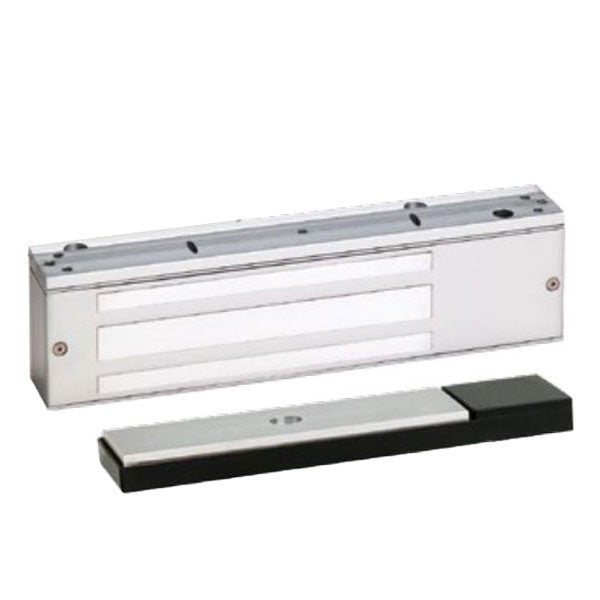

SDC - 1511DEV - Single Slave Magnetic Lock - Delayed Egress - Surface Mount - 1650lbs. - 12/24VDC - Aluminum - Fire rated - Grade 1
In Stock
SKU:
SDC-1511DEV-628
NSID:
32134
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $354.91
-
$425.89 - $354.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Slave operating magnetic locks secure the door in a two piece delayed egress system. A door movement sensor in the lock activates the 101-DE series controller’s trigger input which initiates the 15 or 30 second unlock cycle. Slave operating delayed egress magnetic lock models are available for indoor or outdoor applications.
The 1511DEV works ONLY when connected to 101-DE series controller's SDC-101-KDENA-628 or SDC-101-DENA-628
Features:
- Works ONLY with 101-DE series controller's SDC-101-KDENA-628 or SDC-101-DENA-628
- Comes with 1650lb Holding Forces
- Autosensing 12/24 VDC Voltage Input
- Uniform Design & Installation
- Identical Housing, Template & Accessories
- Quick Mount Assembly
- Modular Design & Modular Field Upgrade Kits
- Field Upgradeable Without Removing From Frame
- ANSI/BHMA Grade 1 Compliant
- UL, CSFM, MEA Listed
Specifications:
| Construction: | Solid Metal |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 1650 LB / 748 KG |
| Voltage: | 12/24VDC Voltage Sensing Input |
| Current: | 350mA @ 24VDC; 670mA @ 12VDC |
| Dimensions: | 11” L x 2-7/8” H x 1-5/8” D |
| Nuisance Time: | Selectable 1 or 2 sec |
| Reset After Alarm: | Manual |
| Lock On Power Up: | Selectable Locked or Unlocked |
| Egress Delay: | Selectable 15 or 30 sec |
| Finish: | Satin Aluminum - 628 |
| Certifications: | ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed |
| Fire rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Warranty: | 5 Years |
