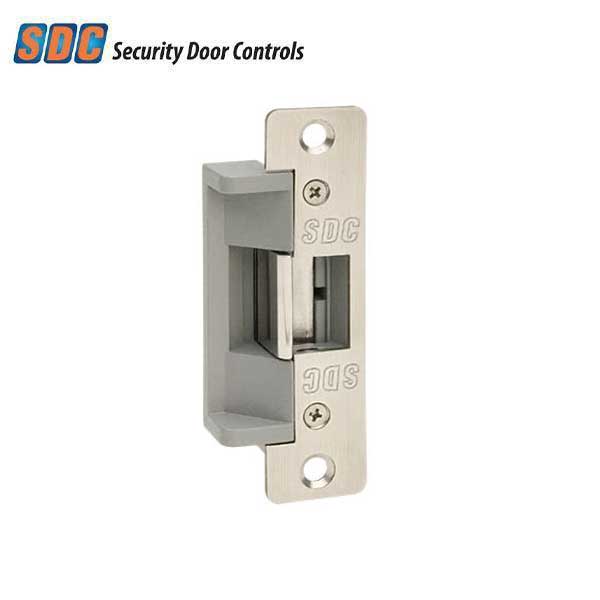

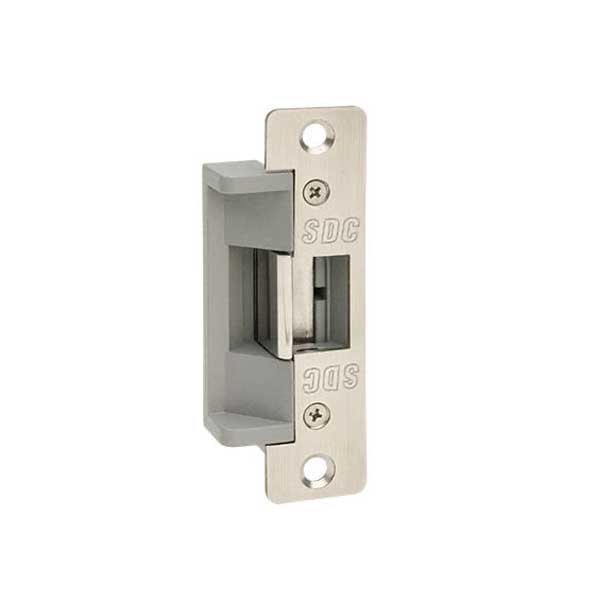

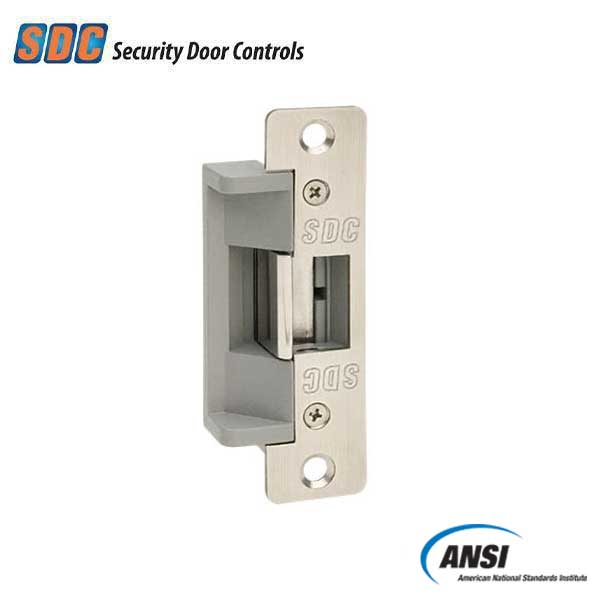

SDC - 15 - Electrified Cylindrical Strike - Fail Secure - 12VDC - 4-7/8” Faceplate - Satin Stainless Steel
$56.00
$67.00
Available:
Out of Stock
Wishlist
- Product SKU: SDC-15-4S12U
-
SDC-15-4S12U
The SDC 15 Series Electric Strike is a Centerline Latch Entry* strike designed for use with Cylindrical lockset with up to ¾” (19mm) throw latchbolts. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.
Features:
- For use with 5/8’’ latchbolt, or up to 3/4’’ latchbolt with 1/8’’ door gap
- Fail Secure
- Non-handed
- All stainless steel parts with durable die case body for corrosion resistance
- 630 Satin stainless steel face plate
- ANSI A156.31 compliant 12VDC
- Screw terminals
- Not recommended for wood applications
$56.00
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Lock Function: | Failsecure - Electronically Unlocked - Deadlocking |
| Voltage: | 12VDC Continuous |
| Current: | 200mA @ 12VDC |
| Fits Latch Bolt: | 5/8’’, or up to 3/4’’ latchbolt with 1/8’’ door gap |
| Solenoid: | Internally mounted |
| Dimensions: | 1-1/4” W x 4-7/8” H x 1-1/2” D |
| Finish: | Satin Stainless Steel - 630 |
| Certifications: | ANSI A156.31 compliant |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
SDC-15-4S12U
The SDC 15 Series Electric Strike is a Centerline Latch Entry* strike designed for use with Cylindrical lockset with up to ¾” (19mm) throw latchbolts. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.
Features:
- For use with 5/8’’ latchbolt, or up to 3/4’’ latchbolt with 1/8’’ door gap
- Fail Secure
- Non-handed
- All stainless steel parts with durable die case body for corrosion resistance
- 630 Satin stainless steel face plate
- ANSI A156.31 compliant 12VDC
- Screw terminals
- Not recommended for wood applications
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Lock Function: | Failsecure - Electronically Unlocked - Deadlocking |
| Voltage: | 12VDC Continuous |
| Current: | 200mA @ 12VDC |
| Fits Latch Bolt: | 5/8’’, or up to 3/4’’ latchbolt with 1/8’’ door gap |
| Solenoid: | Internally mounted |
| Dimensions: | 1-1/4” W x 4-7/8” H x 1-1/2” D |
| Finish: | Satin Stainless Steel - 630 |
| Certifications: | ANSI A156.31 compliant |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
