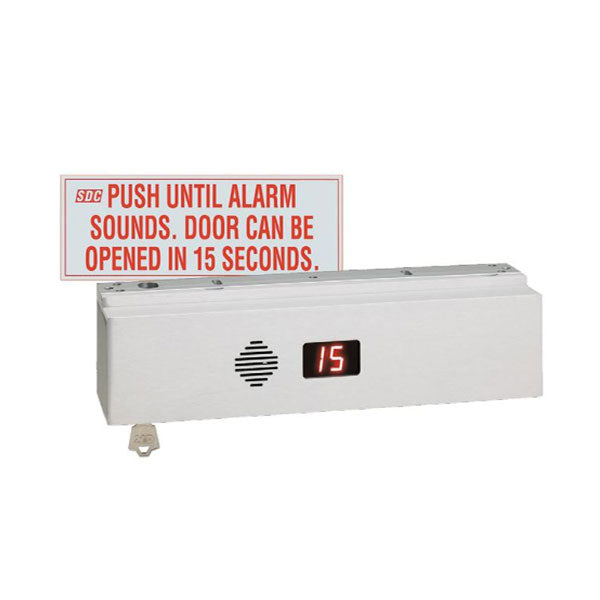

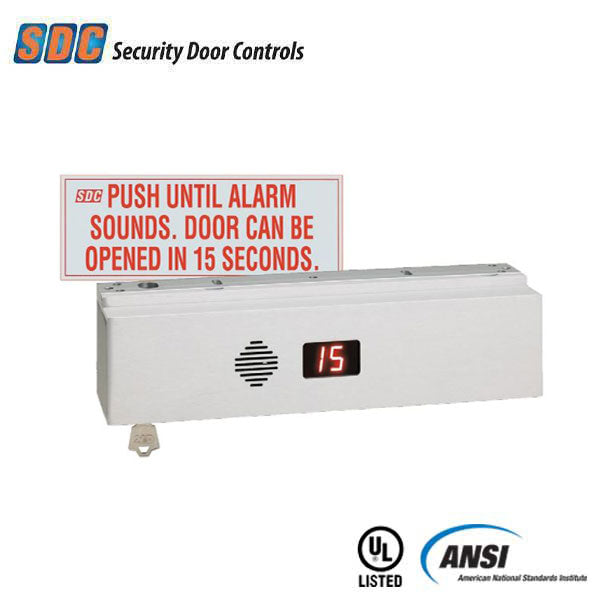

SDC - 1511SNAKV - Single Delayed Egress - EM Lock - Selectable Delayed - Surface Mount - 1650lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1

The 1511S series incorporates all ExitCheck® features for single door applications with an integrated three position key switch for reset; manual power-up and bypass settings for convenience. The patented design revolutionized delayed egress by incorporating an alternating verbal message, verbal countdown and alarm tone, plus a large digital countdown display and door release indicator to provide a clear warning for the safety of persons without prior knowledge of door operation, including the blind and hearing impaired. Designed to delay egress through perimeter exit doors for 15 or 30 seconds, alert security and personnel to unauthorized egress, and are compatible with access controls and patient wandering systems.

Features:

• Integrated delayed egress magnetic lock
• Selectable 15 or 30 sec Egress Delay
• Keyswitch reset
• Comes with 1650lb Holding Forces
• Autosensing 12/24 VDC Voltage Input
• Uniform Design & Installation
• Identical Housing, Template & Accessories
• Quick Mount Assembly
• Fire/emergency release
• Modular Design & Modular Field Upgrade Kits
• Field Upgradeable Without Removing From Frame
• ANSI/BHMA Grade 1 Compliant
• UL, CSFM, MEA Listed
