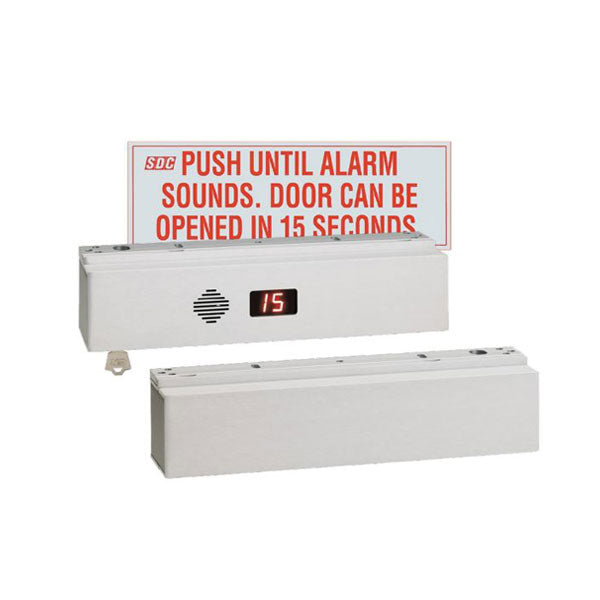

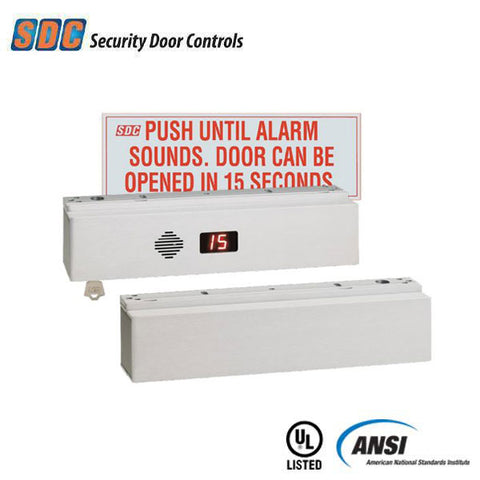

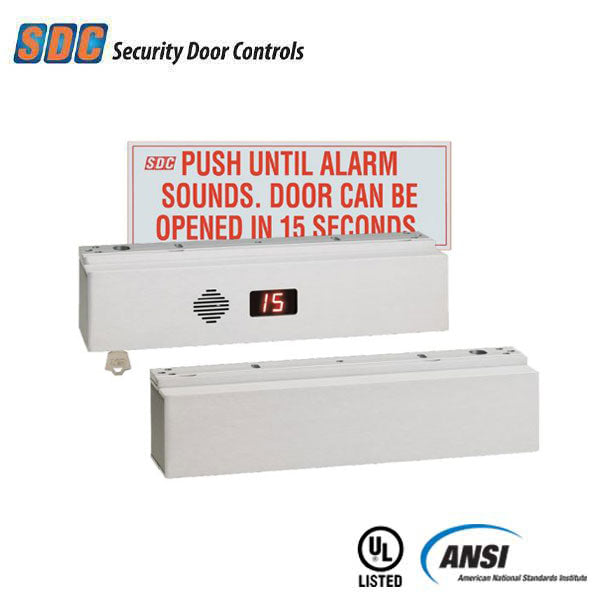

SDC - 1511TNDKV - Tandem Delayed Egress - EM Lock - Fixed Delayed - Surface Mount - 1650lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1 - UHS Hardware
SDC - 1511TNDKV - Tandem Delayed Egress - EM Lock - Fixed Delayed - Surface Mount - 1650lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1 - UHS Hardware

SDC - 1511TNDKV - Tandem Delayed Egress - EM Lock - Fixed Delayed - Surface Mount - 1650lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1

Available to Order
SKU: SDC-1511TNDKV-628
NSID: 32128

Please Note: This product has a lead time

$1,340.04
$1,608.05
$1,340.04


The 1511T series incorporates all ExitCheck® features for double door applications through a slave lock output to enable the use of two units for pairs of doors to ensure pushing either door leaf will cause both doors to release.. The patented design revolutionized delayed egress by incorporating an alternating verbal message, verbal countdown and alarm tone, plus a large digital countdown display and door release indicator to provide a clear warning for the safety of persons without prior knowledge of door operation, including the blind and hearing impaired. Designed to delay egress through perimeter exit doors for 15 or 30 seconds, alert security and personnel to unauthorized egress, and are compatible with access controls and patient wandering systems.

Features:

  • Integrated delayed egress magnetic lock
  • Fixed 15 Second Egress Delay
  • Keyswitch Reset
  • Comes with 1650lb Holding Forces
  • Autosensing 12/24 VDC Voltage Input
  • Uniform Design & Installation
  • Identical Housing, Template & Accessories
  • Quick Mount Assembly
  • Fire/emergency release
  • Modular Design & Modular Field Upgrade Kits
  • Field Upgradeable Without Removing From Frame
  • ANSI/BHMA Grade 1 Compliant
  • UL, CSFM, MEA Listed


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Construction: Solid Metal
Lock Function: Tandem Delayed Egress
Holding Force: 1650 LB / 748 KG
Voltage: 12/24VDC Voltage Sensing Input
Current: 1.5 Amps @ 12VDC; 850 mA @ 24VDC
Egress Delay: Fixed 15 sec
Nuisance Time: Selectable 0 or 1 sec
Reset After Alarm: Manual
Lock On Power Up: Selectable Locked or Unlocked
Dimensions: 11” x 23/4” x 25/8”
Finish: Aluminum - 628
Fire Rated: UL 10C - Positive Pressure Fire Tests of Door Assemblies
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, NFPA 101, IBC, IFC
Warranty: Manufacturer Lifetime Warranty
