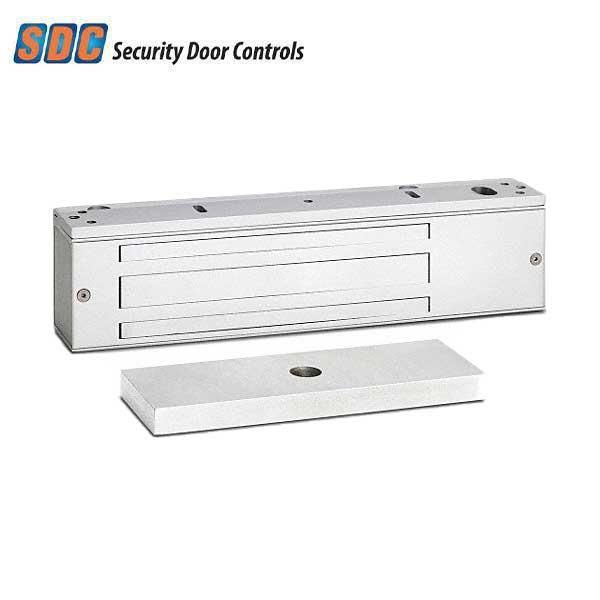

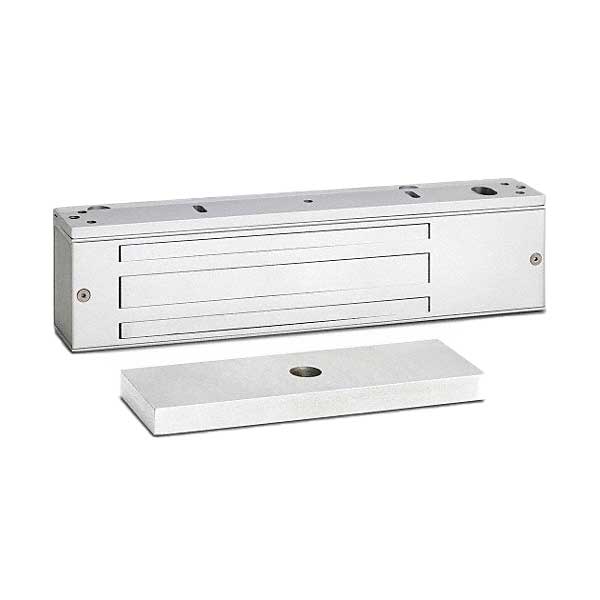

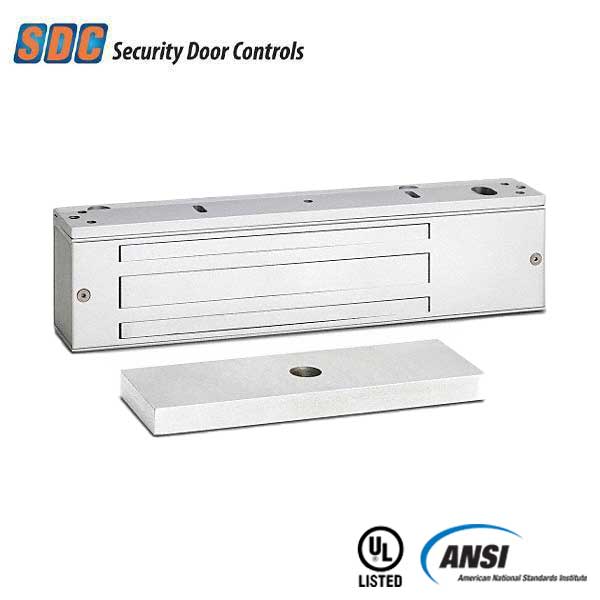

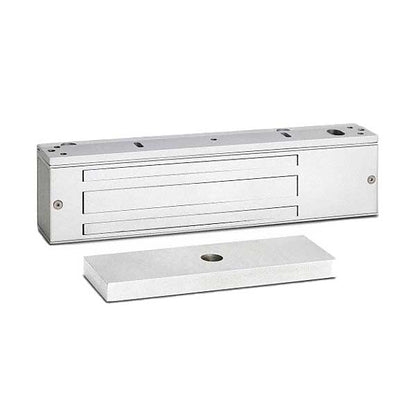

*Discontinued* SDC - 1571VD - Single Electromagnetic Lock - Door Position Sensor - Surface Mount - 1200lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1

*Discontinued* SDC - 1571VD - Single Electromagnetic Lock - Door Position Sensor - Surface Mount - 1200lbs. - 12/24VDC - Aluminum - Fire Rated - Grade 1

Discontinued
SKU SDC-1571VD-628 NSID 32067
$365.50$438.60On Sale You save $73.10 (17%)


The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 1200lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.

Features:

  • Comes with 1200lb Holding Forces
  • Door position sensor that Indicates door open and door closed
  • Autosensing 12/24 VDC Voltage Input 3 Watt Power Saver
  • Uniform Design & Installation
  • Identical Housing, Template & Accessories
  • Quick Mount Assembly
  • Field Upgradeable Without Removing From Frame
  • ANSI/BHMA Grade 1 Compliant
  • UL, CSFM, MEA Listed


View full details

Details

Specifications:

Construction: Solid Metal
Lock Function: Electromagnetic Lock
Holding Force: 1200 LB / 544 KG
Voltage: 12/24VDC Voltage Sensing Input. 3 Watt Max
Current: 125mA @ 24VDC; 250mA @ 12VDC
Dimensions: 11”L x 2-7/8”H x 1-5/8”D
Door Position Status (DPS): SPDT
Finish:

Satin Aluminum - 628
Fire Rated: Positive Pressure Fire Tests of Door Assemblies
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed, UL 10C
Warranty: Manufacturer Lifetime Warranty
