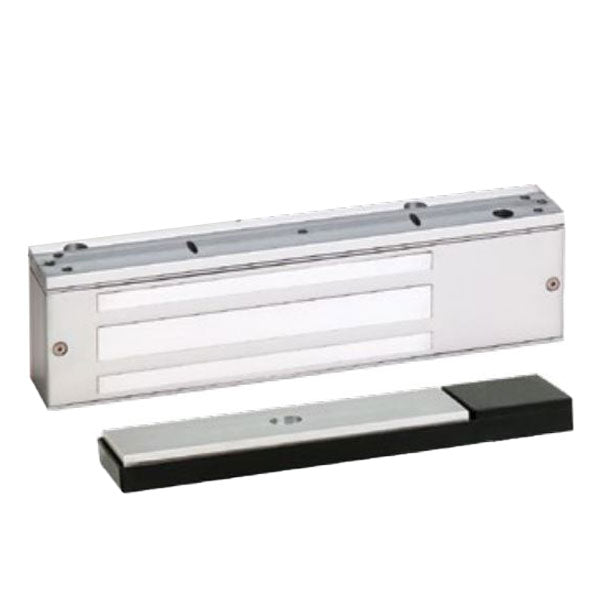

SDC - 1581DEV - Single Slave Magnetic Lock - Delayed Egress - Surface Mount - 650lbs - 12/24VDC - Aluminum - Fire rated - Grade 1
In Stock
SKU:
SDC-1581DEV-628
NSID:
32135
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $333.18
-
$335.40 - $333.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Slave-operating magnetic locks secure the door in a two-piece delayed egress system. A door movement sensor in the lock activates the 101-DE series controller’s trigger input which initiates the 15 or 30-second unlock cycle. Slave operating delayed egress magnetic lock models are available for indoor or outdoor applications.
Please Note: Delayed Egress feature is NOT available solely by itself out of the box. In order to make it "Delayed Egress" SDC-101-DENA-628 NEEDS to be purchased separately.
The 1511DEV works ONLY when connected to 101-DE series controller's SDC-101-KDENA-628 or SDC-101-DENA-628
Features:
- Works ONLY with 101-DE series controller's SDC-101-KDENA-628 or SDC-101-DENA-628
- Comes with 650lb Holding Forces
- Autosensing 12/24 VDC Voltage Input
- Uniform Design & Installation
- Identical Housing, Template & Accessories
- Quick Mount Assembly
- Modular Design & Modular Field Upgrade Kits
- Field Upgradeable Without Removing From Frame
- ANSI/BHMA Grade 1 Compliant
- UL, CSFM, MEA Listed
Specifications:
| Construction: | Solid Metal |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 650 LB |
| Voltage: | 12/24VDC Voltage Sensing Input |
| Current: | 440/220 mA @12/24 VDC |
| Dimensions: | 11” L x 2-7/8” H x 1-5/8” D |
| Nuisance Time: | Selectable 1 or 2 sec |
| Reset After Alarm: | Manual |
| Lock On Power Up: | Selectable Locked or Unlocked |
| Egress Delay: | Selectable 15 or 30 sec |
| Finish: | Satin Aluminum - 628 |
| Certifications: | ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed |
| Fire rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Warranty: | 5 Years |
