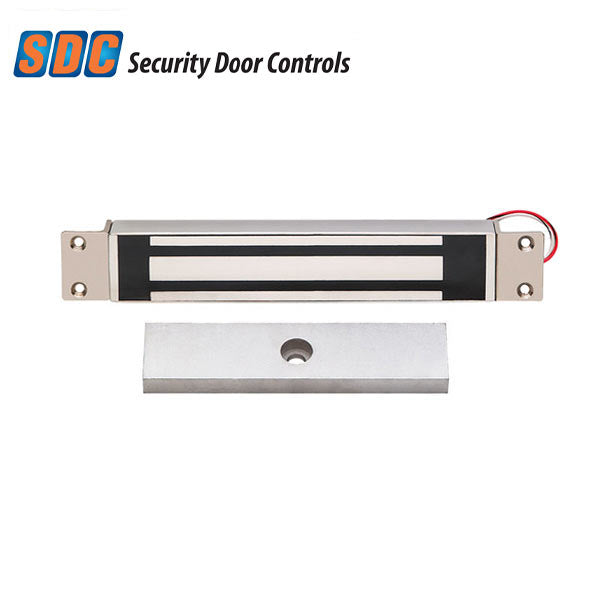

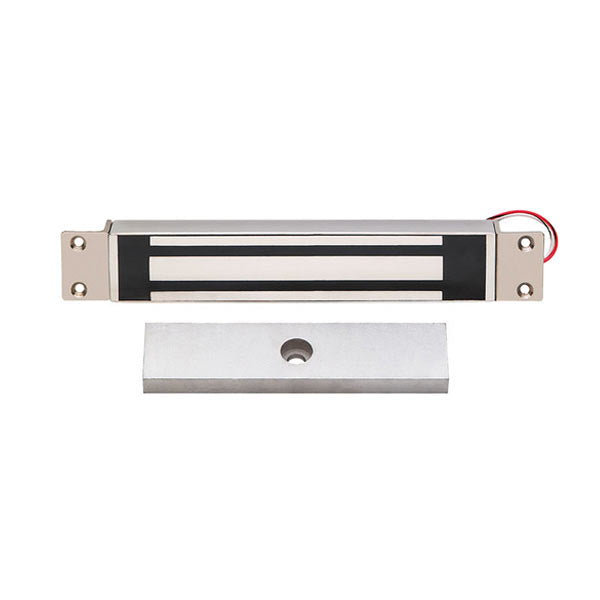

SDC - 1591U - Mortise Sliding Door Single Magnetic Lock - 850lbs. - 12/24VDC - Stainless Steel - Grade 1
Available to Order
SKU:
SDC-1591U-630
NSID:
32081
- $244.19
-
$299.97 - $244.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SDC's sliding door magnetic mortise lock series is a compact mortise electromagnetic lock with 850lbs of holding power packed into a small steel case. The lock is ideal for securing sliding or swinging, manual or automatic doors. Its durability for high-frequency use and its mortise installation make it the choice of specification writers, owners, and architects.
With only two parts, the lock mortised in the frame and the armature in the door, the lock secures the door in a closed position. When power is cut the lock releases instantly. When used with industrial sliding doors, two locks may be used to provide up to 1700lbs of holding power.
Features:
- Compact mortise stainless steel case
- ANSI/BHMA Grade 1 Compliant
- Field selectable dual voltage
- Voltage and current spike protection
- UL Listed
Specifications:
| Construction: | Stainless Steel |
| Lock Function: | Sliding Electromagnetic Lock |
| Holding Force: | 850 lbs |
| Voltage: | 12/24 VDC ± 10% Field Selectable |
| Current: | 350 mA @ 24 VDC 700 mA @ 12 VDC |
| Lock Dimensions: | 10"L x 1-7/16"W x 1-1/4"D |
| Armature Dimensions: | 6-5/16"L x 1-1/2"W x 1-1/4"D |
| Certifications: | ANSI/BHMA Grade 1 Compliant, UL Listed |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
