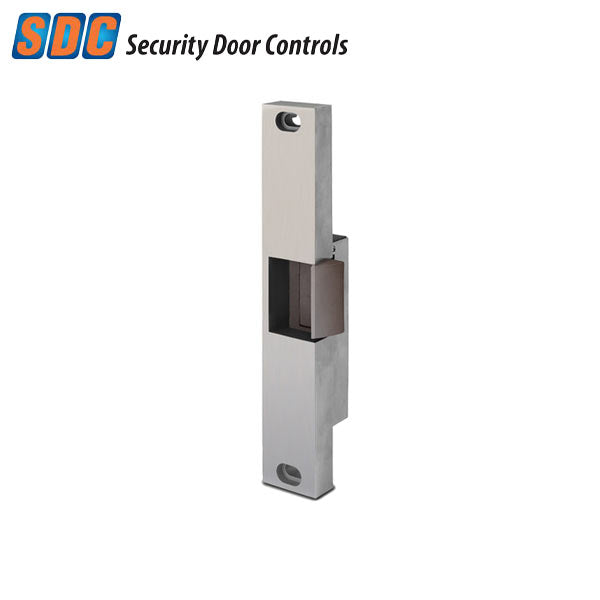

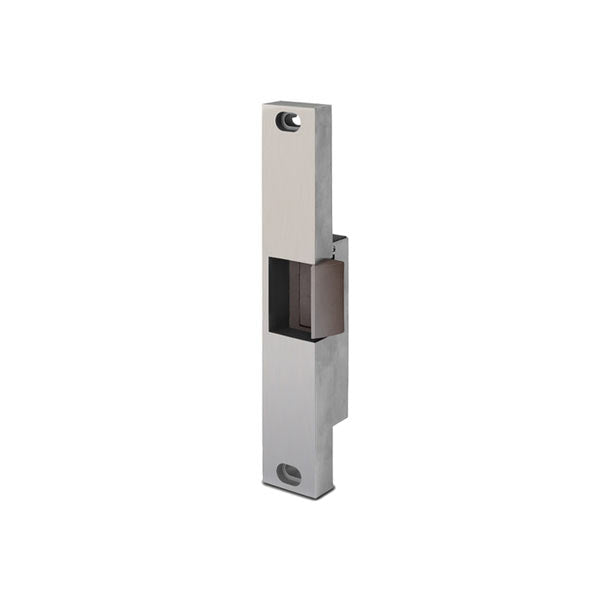

SDC - 30 - Pullman Latchbolt Strike - Fail Safe/Fail Secure - 24VDC - Satin Stainless Steel - Grade 1
Available to Order
SKU:
SDC-30-4-24U-630
NSID:
32139
- $561.39
-
$649.99 - $561.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SDC’s 30 series 3/4” pullman latchbolt electric strikes are designed for use with rim mount exit devices having pullman type latchbolts. 30 series strikes accept 3/4” throw pullman style latchbolts. Built with all stainless steel parts and stainless steel housing
for maximum lifespan, corrosion and tamper resistance, the heavy duty construction makes 30 series strikes ideal for high traffic applications. Additionally, 30 series strikes feature in-frame horizontal adjustability, set screws to allow for adjustment lockdown, milled ramps to better accommodate deadlatches, and an integrated space plate shim for quick customization of faceplate thickness,
Features:
- Pullman keeper
- Stainless steel components
- Stainless steel housing and faceplate
- Corrosion and tamper resistant
- Horizontal alignment adjustment
- Integrated spacer plate shim
- Non-handed
- Internally mounted solenoid
- Fail secure operation
- Voltage and current spike protection
- Pigtail connectors
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Latchbolt: | 3/4” Throw, Pullman Style |
| Lock Function: | Field Reversible Failsecure or Failsafe - Deadlocking |
| Static Strength: | 1,500 lbs |
| Dynamic Strength: | 70 lbs |
| Endurance Cycles: | 500,000 |
| Keeper Depth: | 3/4” |
| Voltage: | 12/24 VDC ± 10% |
| Current: | 510 mA @ 12 VDC 250 mA @ 24 VDC |
| Monitoring Contacts: | SPDT; 3 Amps @ 30 VDC Resistive |
| Dimensions: | 9” x 1.75” x 2.5” |
| Finish: | Satin Stainless Steel - 630 |
| Certifications: | UL 294, UL 1034, UL 10B, UL 10C, ANSI/BHMA A156.31 Grade 1 |
| Warranty: | 5-Year Manufacturer Warranty |
