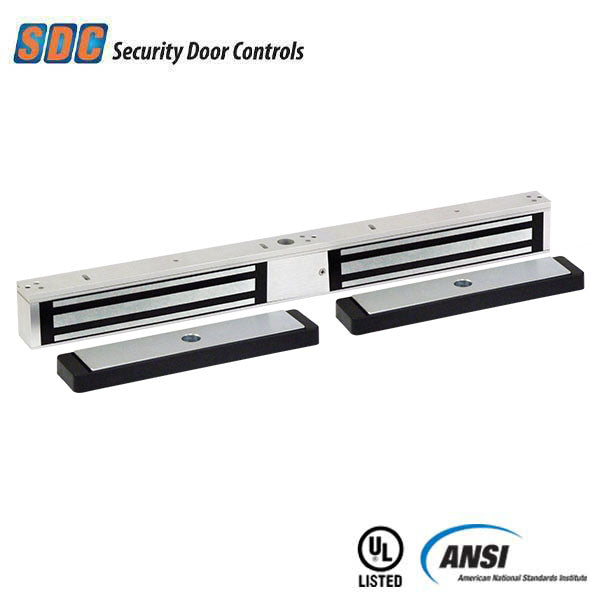

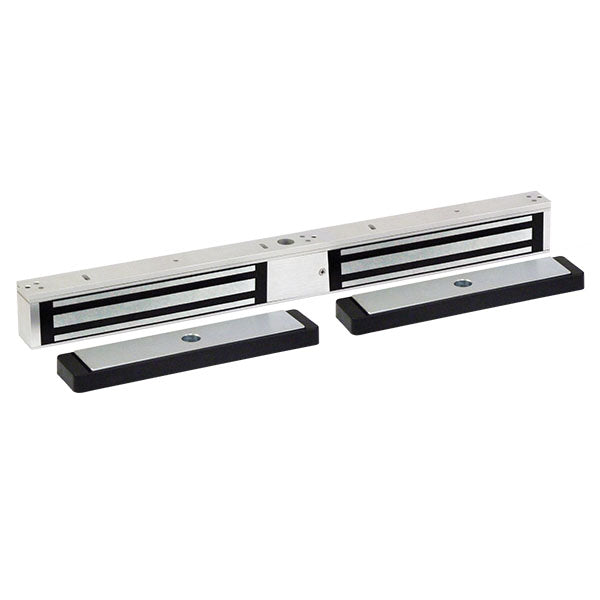

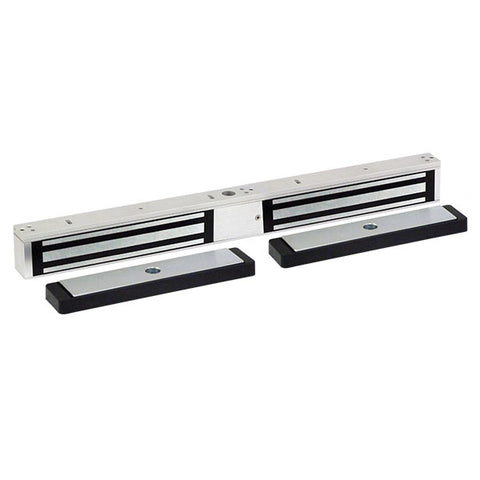

SDC - 352 - Double Narrow Line Magnetic Lock - Surface Mount - Full Monitoring - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1
Available to Order
SKU:
SDC-352V-628
NSID:
32080
- $513.51
-
$649.99 - $513.51
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 350 series Narrow Line Magnetic Lock provides 1200lbs holding force and failsafe access control for perimeter and interior doors that meets building security and fire life safety code requirements. The 350 series is specifically designed for high profile openings that require less obtrusive surface mount lock with architecturally superior appearance. Unlike typical surface mount magnetic locks the Narrow Line projects from the door frame less, enabling it to blend in exceptionally well with virtually any narrow frame. SDC narrow line magnetic locks are the best solution available to maintain the architectural aesthetics high profile door entrances.
Features:
- Comes with 1200lb Holding Forces
- Autosensing 12/24 VDC Voltage Input
- Magnetic Bond Sensor and Door Status Sensor and LED Status indicator are standard
- Internal wire chamber with PC board mounted terminal blocks permits wiring before or after lock mounting
- Captive lock mounting screws and Interlocking bracket holds lock in place, leaving installers hands free, eliminating awkward simultaneous holding and fastening of lock
- Armature housing prevents sagging, provides quieter operation and superior appearance
- Clear anodized aluminum standard
- ANSI/BHMA A156.23 Grade 1 compliant
Specifications:
| Construction: | Solid Metal |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 1200 LB / 544 kg |
| Dual Voltage: | 12/24VDC Voltage Sensing Input |
| Current: | 618mA @ 24VDC / 1020mA @ 12VDC |
| Magnetic Bond Sensor: | 1-SPDT output, 1A @ 30VDC |
| Door Position Sensor: | 1-SPDT output, 250mA max. @ 30VDC |
| Dimensions: | 25"L x 2-1/8H x 1-11/16W (635 x 54 x 43mm) |
| LED Indicator: | Green-Secure, Red-Unlocked |
| Finish: | Satin Aluminum - 628 |
| Certifications: | ANSI/BHMA Grade 1 Compliant. UL Listed |
| Warranty: | Manufacturer Lifetime Warranty |
