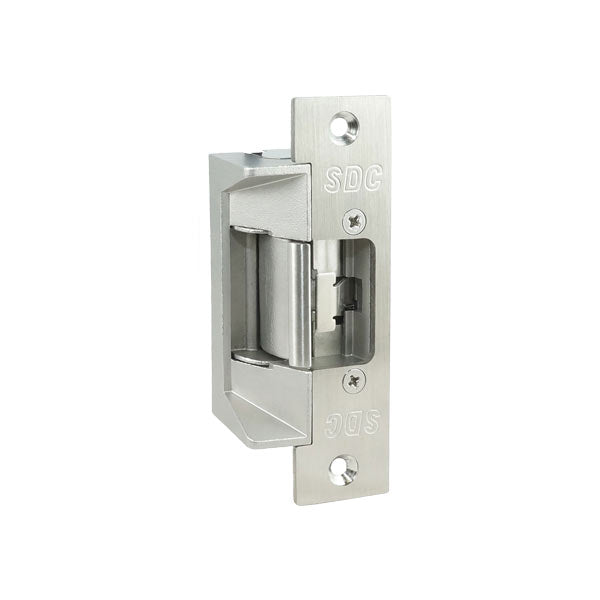

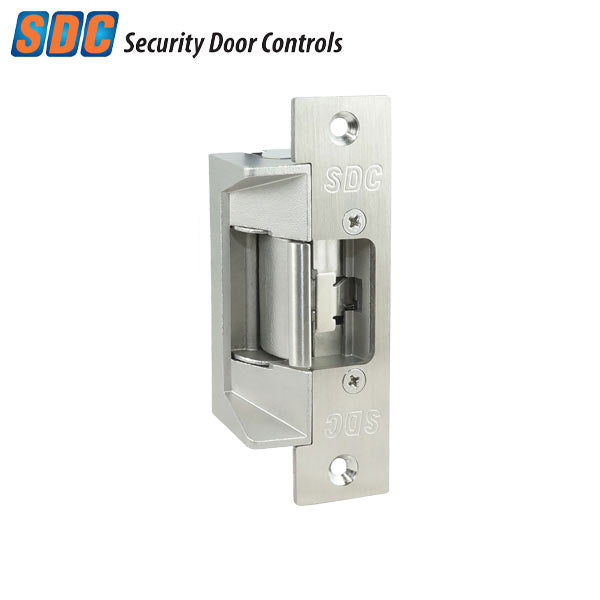

SDC - 45F-4SU - Electrified Cylindrical Strike - Fail Safe / Fail Secure - Full Monitoring - Fire Rated - Satin Stainless Steel - UHS Hardware
SDC - 45F-4SU - Electrified Cylindrical Strike - Fail Safe / Fail Secure - Full Monitoring - Fire Rated - Satin Stainless Steel - UHS Hardware

SDC - 45F-4SU - Electrified Cylindrical Strike - Fail Safe / Fail Secure - Full Monitoring - Fire Rated - Satin Stainless Steel

Available to Order
SKU: SDC-45F-4SU-630
NSID: 32142

Please Note: This product has a lead time

$263.34
$309.99
$263.34

SDC’s 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames. 45 series strikes accept 5/8” throw latchbolts or up to ¾” throw latch bolts with 1/8” door gap. Built with all stainless steel parts, a durable die cast body and fewer moving parts for maximum lifespan and corrosion resistance, the quality construction makes 45 series strikes ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.

Features:

  • Low profile
  • Fewer moving parts
  • Stainless steel components
  • Durable die-cast housing body
  • Corrosion-resistant
  • Horizontal alignment adjustment
  • Mounting tabs included
  • Non-handed
  • Interchangeable faceplate design
  • Internally mounted solenoid
  • Field selectable operation
  • Field selectable dual voltage
Call 1-800-878-6604 for Bulk / Dealer Pricing!
Current Draw: 200 mA @ 12 VDC 100 mA @ 24 VDC
Monitoring Contacts: SPDT 3 Amp @ 30 VDC Resistive
Latchbolt: 9/16” Throw, Up to 5/8” Throw with 1/8” Door Gap
Input: 12/24 VDC ± 10%
Static Strength: 1,500 lbs
Dynamic Strength: 70 lbs
Endurance Cycles: 250,000
Keeper Depth: 0.8125"
Weight: 2 lbs
Faceplates: (4S) Square Corner Stainless Steel, 47/8” x 11/4”
Frame Application: (45F-4S) Hollow Metal
Manufacturer Warranty: 5 Years
Certifications: UL 1034, UL 10C, ANSI/BHMA A156.31
