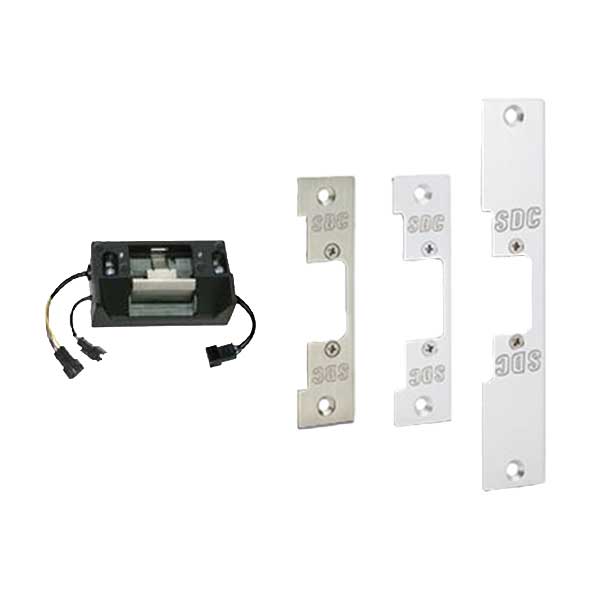

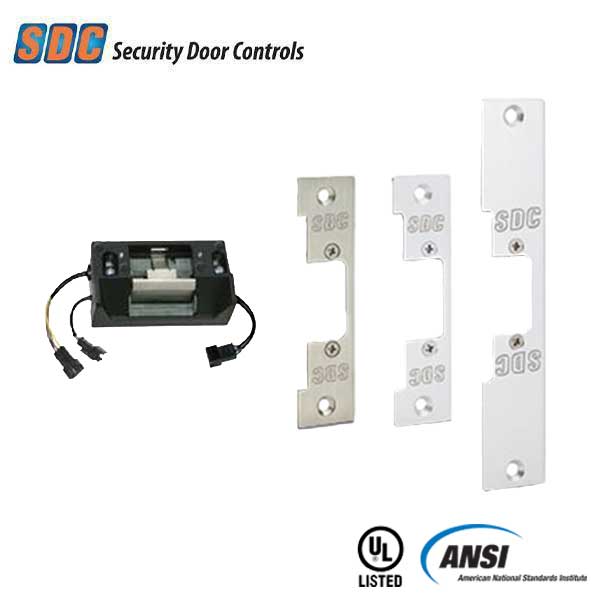

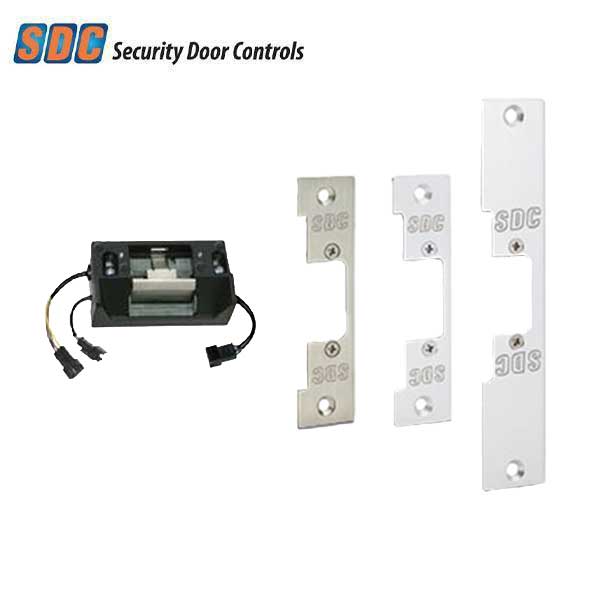

SDC - 45 - Electrified Cylindrical Strike - Fail Safe / Fail Secure - Full Monitoring - 12/24V AC/DC - 3 Faceplates - Grade 2
- Product SKU: SDC-45-A-630/628
- NSID: 32140
-
SDC-45-A
The SDC 45 Series Centerline Latch Entry Electric Strike is designed for use with Cylindrical and Mortise locksets with up to ¾” (19mm) throw latchbolts. The quality construction makes the 45 series ideal for high traffic applications. The compact low
profile design enables quick and easy installation where jamb space is limited. This 45 Series Universal Electric Strike comes with 3 different faceplatesFeatures:
- Field reversible for failsecure or failsafe operation
- For 3/4” latch or 5/8” latch with 1/8” door gap
- Field selectable voltage, 12/24V AC/DC, 1/4" Horizontal alignment adjustment
- Latch status output, 3Amp - SPDT
- Full Monitoring is Standard; Latched and Unlatched Status, Keeper Closed and
Deadlocked, or Unlocked - Low profile, 1-3/16" deep
- Plug-in wire connectors
- Mounting tabs Non-handed
- All stainless steel parts with durable die cast body for corrosion resistance
- Fewer moving parts for maximum life
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Lock Function: | Field Reversible Failsecure or Failsafe - Full Monitoring |
| Dual Voltage: | 12/24V AC/DC 1/4" Horizontal alignment adjustment |
| Current: | 200/100 mA @ 12/24V DC,140/70mA @ 12/24V AC |
| Latch Status: | SPDT, Dry 3Amp @ 30V (standard) |
| Keeper Closed & Locked Status: | SPDT, Dry 3Amp @ 30V (standard) |
| Fits Latch Bolt: | 3/4’’, or up to 5/8’’ latchbolt with 1/8’’ door gap |
| Low Profile Mount: | 1-3/16" deep |
| Faceplates: |
(1) 4.875" Square Corner (1) 4.875" Radius Corner (1) 7.9375" Radius Corner |
| Faceplate Finishes: | Square Corner: Satin Stainless Steel - 630 Radius Corner: Satin Aluminum - 628 |
| Certifications: | ANSI/ BHMA A156.31, Grade 2 |
| Warranty: | 5-Year Manufacturer Warranty |
