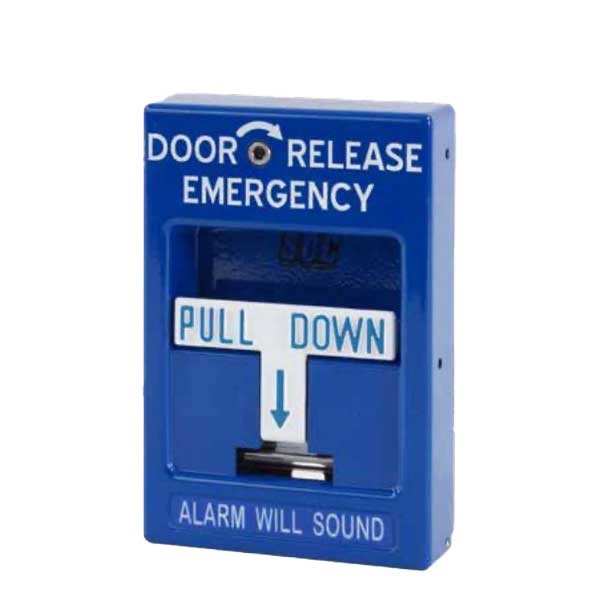

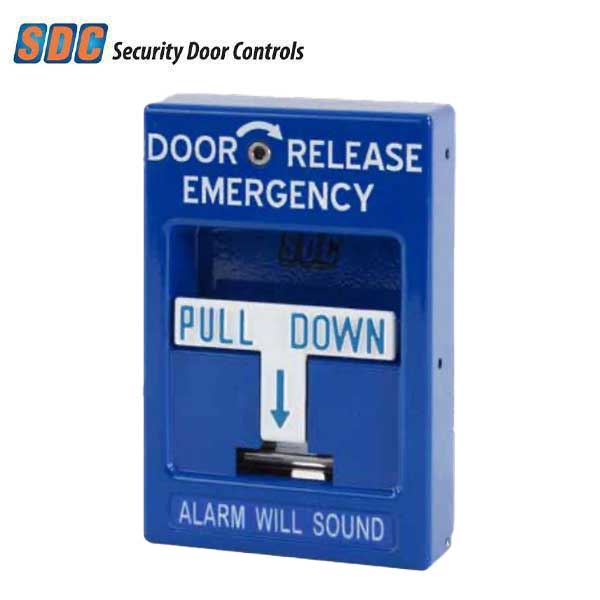

SDC - 492 - Pull Station Emergency Exit Door Release - Blue
- Product SKU: SDC-492
-
SDC-492
The SDC 492 Emergency Door Release Pull Station provides immediate unlocking of perimeter doors or interior doors that are equipped with fail-safe electric locks. The 492’s built in alarm may be used as a local door annunciator. The 492 is specifically designed for emergency door release and may influence the approval of an electric locking system.
Features:
- Blue housing with easy to read activation instructions avoids confusion with red fire alarm stations.
- The SDC 492 may initiate the release of an individual door or all doors on the same circuit.
- The SDC 492 may be mounted in a 2” deep single gang back box or double gang box with plaster ring cover. The SDC 492 may be surface mounted with a 492-BB surface mount back box
| Contacts: | 2-SPDT 10 Amp Contacts; 1-SPDT for lock release and 1-SPDT auxiliary contact for remote monitoring, CCTV activation or alarm activation |
| Replacement Glass Rods: | 2 Replacement glass rods included |
| Dimensions: | 4.75” H x 3.25” W x 1.375” D |
Downloads:
