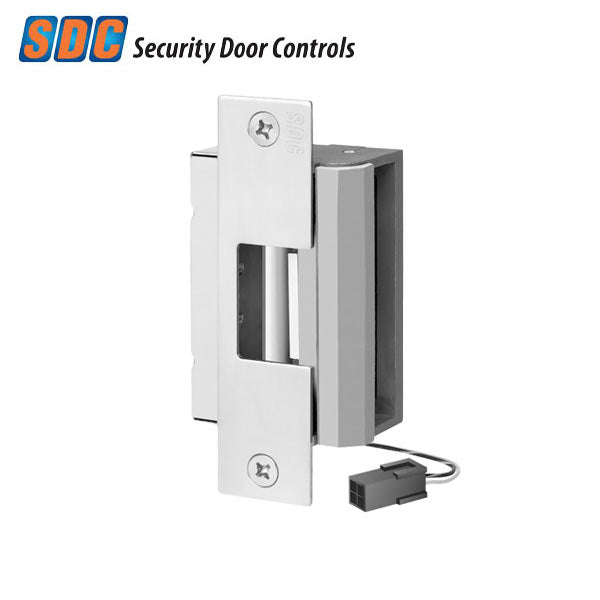

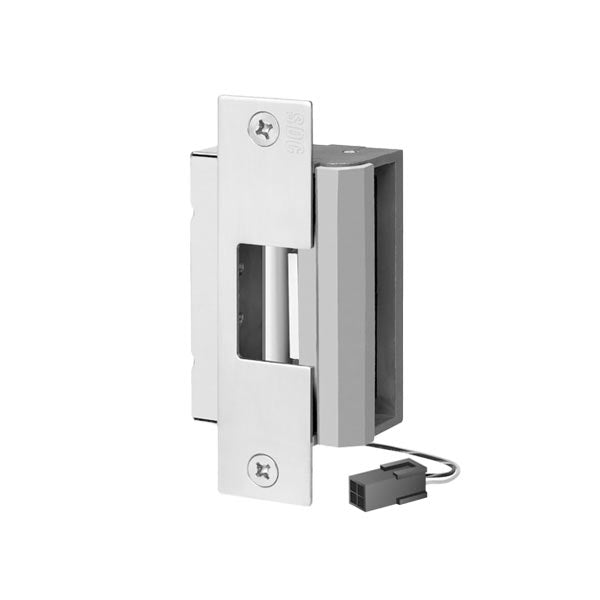

SDC - 55-AU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin stainless Steel - Grade 1

SDC - 55-AU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin stainless Steel - Grade 1

Available to order
SKU SDC-55-AU-630 NSID 32144
$343.82$412.58On Sale You save $68.76 (17%)
Please Note: This product has a lead time

SDC’s 55 series 3/4” latchbolt electric strikes are heavy duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.

Features:

  • All Stainless Steel Corrosion Resistant
  • Field reversible for failsecure or failsafe operation
  • Up to ¾” Latchbolt and 1” Deadbolt
  • No Centerline Relocation
  • 1/8” Horizontal alignment adjustment
  • Factory tested 2500 lbs. exceeds 1,000,000 cycles
  • UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
  • Tamper Resistant
  • Non-handed
  • Plug-in pig tail connectors


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Construction: Stainless steel parts with durable die case body
Application: Cylindrical locksets
ANSI centerline latch entry locksets
Compatible Locks: Cylindrical locksets with 1/2” to
5/8” latchbolts
ANSI centerline latch entry
locksets with up to 3/4” latchbolt
Function: No deadbolt
Dual Voltage: 12/24 VDC ± 10%
Current: 600 mA @ 12 VDC
300 mA @ 24 VDC
Monitoring Status: SPDT
5 Amps @ 30 VDC Resistive
Fits Latch Bolt: 5/8'', or up to 3/4'' with 1/8'' door gap
Faceplates:
 Cylindrical Locksets
Finishes: Satin Stainless Steel - 630
Certifications: ANSI/BHMA A156.31 Grade 1, UL 10C, UL 1034
Warranty: 5-Year Manufacturer Warranty
