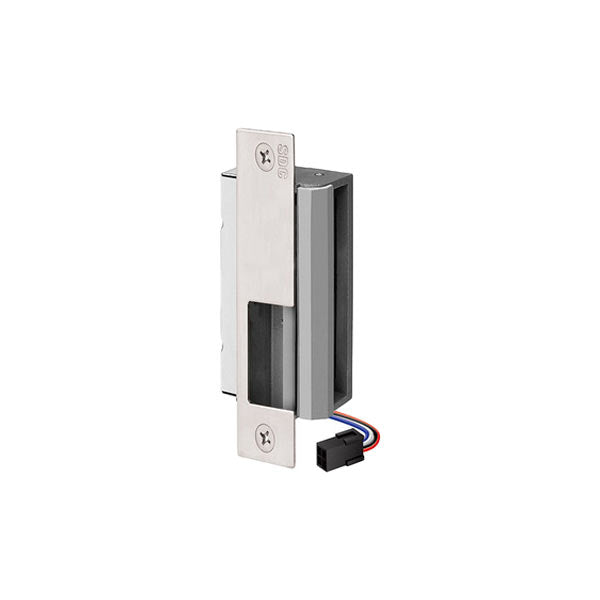

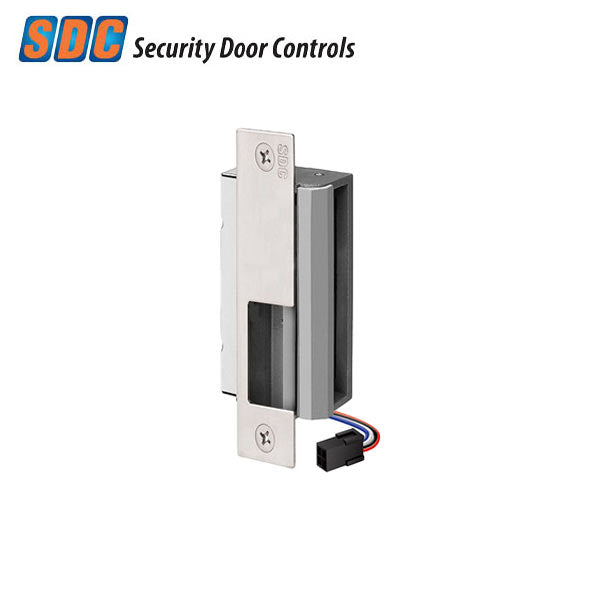

SDC - 55-CU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin stainless Steel - Grade 1 - UHS Hardware
SDC - 55-CU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin stainless Steel - Grade 1 - UHS Hardware

SDC - 55-CU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin stainless Steel - Grade 1

Available to Order
SKU: SDC-55-CU-630
NSID: 32146

Please Note: This product has a lead time

$301.05
$399.00
$301.05

SDC’s 55 series 3/4” latch bolt electric strikes are heavy-duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.

Features:

  • All Stainless Steel Corrosion Resistant
  • Field reversible for failsecure or failsafe operation
  • Up to ¾” Latchbolt and 1” Deadbolt
  • No Centerline Relocation
  • 1/8” Horizontal alignment adjustment
  • Factory tested 2500 lbs. exceeds 1,000,000 cycles
  • UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
  • Tamper Resistant
  • Non-handed
  • Plug-in pig tail connectors


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Construction: Stainless steel parts with durable die case body
Application: • Mortise locksets without
deadbolt
• Mortise exit devices with or
without deadlatch
• Deadlatch located above the
latchbolt
Compatible Locks: Baldwin, Hager, Schlage, SDC
Dual Voltage: 12/24 VDC ± 10%
Current: 600 mA @ 12 VDC
300 mA @ 24 VDC
Monitoring Status: SPDT
5 Amps @ 30 VDC Resistive
Fits Latch Bolt: 5/8'', or up to 3/4'' with 1/8'' door gap
Faceplates:
Mortise Locksets without Deadbolt & Mortise Exit Devices - Deadlatch Above
Finishes: Satin Stainless Steel - 630
Certifications: ANSI/BHMA A156.31 Grade 1, UL 10C, UL 1034
Warranty: 5-Year Manufacturer Warranty
