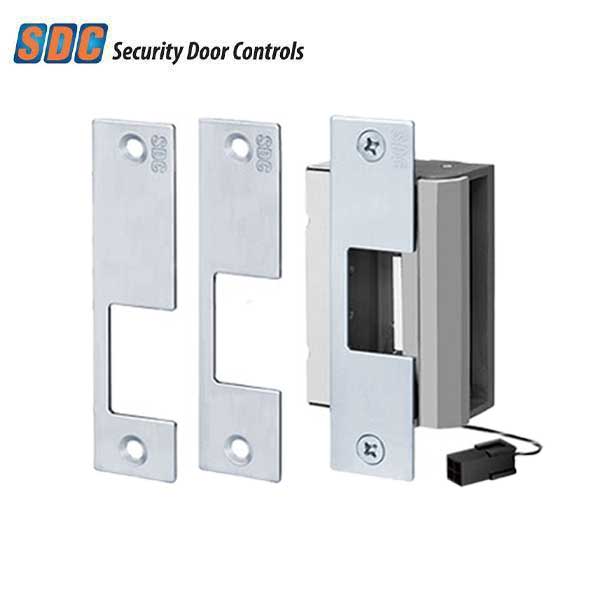

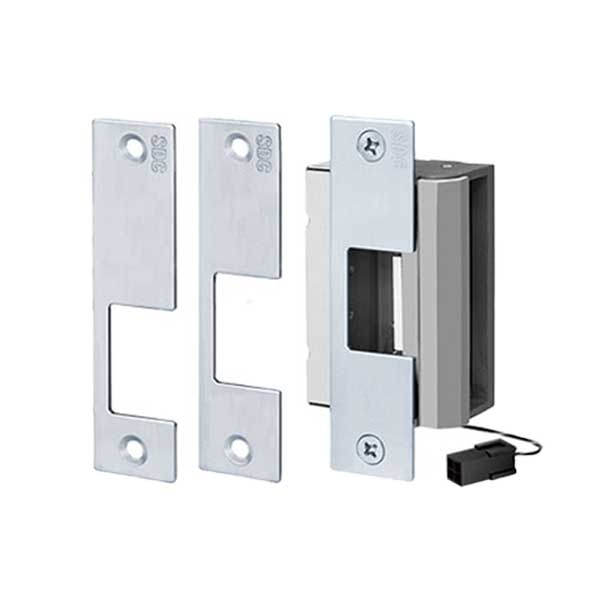

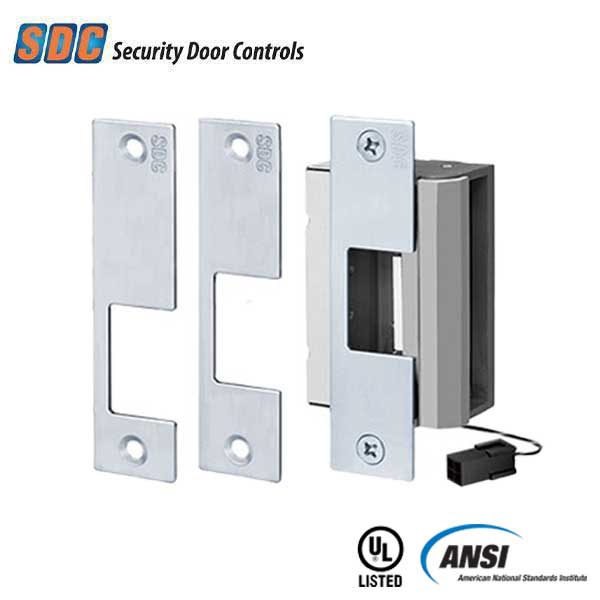

SDC - 55 - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - 3 Faceplates - Satin stainless Steel - Grade 1
- Product SKU: SDC-55-ABCU
-
SDC-55-ABCU
UniFLEX™ 55 Series heavy duty electric universal strikes are designed for installation in hollow metal frames for access control of cylindrical and mortise locksets and mortise exit devices. The choice of 3 application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit, high security access control applications. Retrofits any existing ANSI 4-7/8” strike prep.
Features:
- All Stainless Steel Corrosion Resistant
- Field reversible for failsecure or failsafe operation
- Up to ¾” Latchbolt and 1” Deadbolt
- No Centerline Relocation
- 1/8” Horizontal alignment adjustment
- Factory tested 2500 lbs. exceeds 1,000,000 cycles
- UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
- Tamper Resistant
- Non-handed
- Plug-in pig tail connectors
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Lock Function: | Field Reversible Failsecure or Failsafe - Monitoring |
| Dual Voltage: | 12/24VDC 1/8" Horizontal alignment adjustment |
| Current: | 600/300Amps @ 12/24V DC |
| Monitoring Status: | SPDT, Dry, 5Amp @ 30V |
| Fits Latch Bolt: | 5/8'', or up to 3/4'' with 1/8'' door gap |
| Solenoid: | Internally Mounted; no heat in keeper |
| Faceplates: |
(1) For Cylindrical Locksets (1) Mortise locksets and exit mortise devices with or without a deadlatch located below the latchbolt. (1) Mortise locksets and mortise exit devices with or without a deadlatch located above the latchbolt. |
| Finishes: | Satin Stainless Steel - 630 |
| Certifications: | ANSI/BHMA A156.31 Grade 1 |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
