SDC - 55-FU - Electrified Universal Strike - Fail Safe / Fail Secure - 12/24VDC - Satin Stainless Steel - Grade 1
In Stock
SKU:
SDC-55-FU-630
NSID:
32149
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $315.41
-
$415.99 - $315.41
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

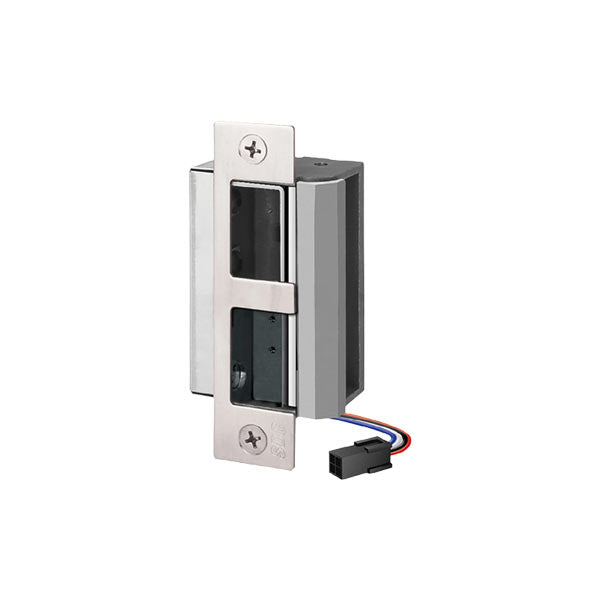

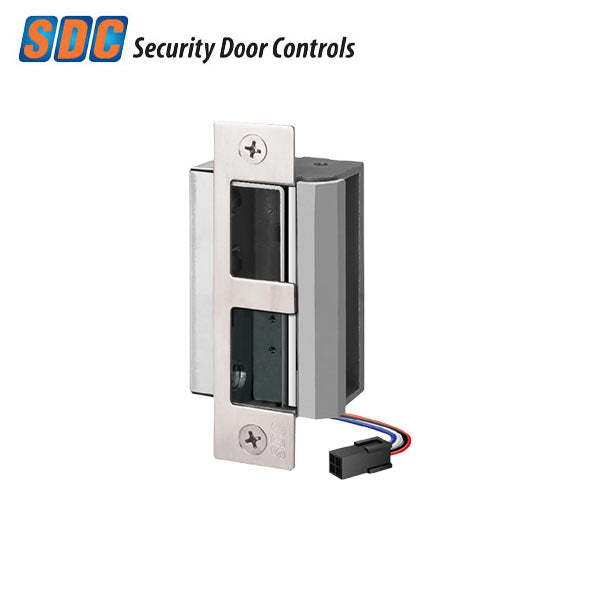

SDC’s 55 series 3/4” latchbolt electric strikes are heavy duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.
Features:
- All Stainless Steel Corrosion Resistant
- Field reversible for failsecure or failsafe operation
- Up to ¾” Latchbolt and 1” Deadbolt
- No Centerline Relocation
- 1/8” Horizontal alignment adjustment
- Factory tested 2500 lbs. exceeds 1,000,000 cycles
- UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
- Tamper Resistant
- Non-handed
- Plug-in pig tail connectors
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Application: | • Mortise locksets with deadbolt • Deadlatch located above the latchbolt |
| Compatible Locks: | Hager, Schlage, SDC |
| Dual Voltage: | 12/24 VDC ± 10% |
| Current: | 600 mA @ 12 VDC 300 mA @ 24 VDC |
| Monitoring Status: | SPDT 5 Amps @ 30 VDC Resistive |
| Fits Latch Bolt: | 5/8'', or up to 3/4'' with 1/8'' door gap |
| Faceplates: |
Mortise Locksets with Deadbolt - Deadlatch Above |
| Finishes: | Satin Stainless Steel - 630 |
| Certifications: | ANSI/BHMA A156.31 Grade 1, UL 10C, UL 1034 |
| Warranty: | 5-Year Manufacturer Warranty |
