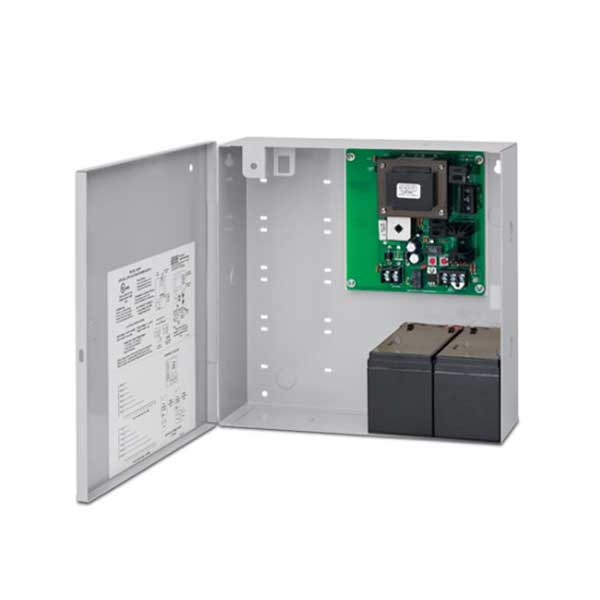

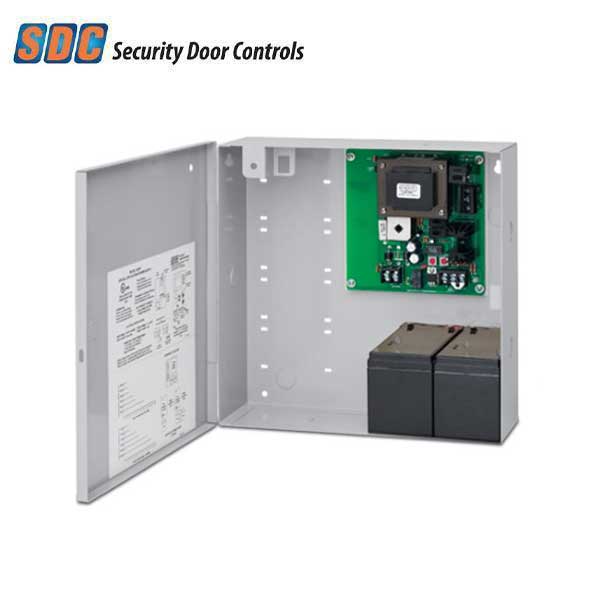

SDC - 602 - Low Voltage Power Supply - 12" Cabinet - 1 Amp - 12/24VDC - Battery Charger - Fire Rated - UHS Hardware
SDC - 602 - Low Voltage Power Supply - 12" Cabinet - 1 Amp - 12/24VDC - Battery Charger - Fire Rated - UHS Hardware
SDC - 602 - Low Voltage Power Supply - 12" Cabinet - 1 Amp - 12/24VDC - Battery Charger - Fire Rated - UHS Hardware

SDC - 602 - Low Voltage Power Supply - 12" Cabinet - 1 Amp - 12/24VDC - Battery Charger - Fire Rated

Available to Order
SKU: SDC-602RF
NSID: 21961

Please Note: This product has a lead time

$169.97
$203.99
$169.97

All SDC power supplies are equipped with a high performance transformer and highly
reliable electronic components. Filtering and output voltage regulation provide protection and ensure the longevity of all system components. With the addition of SDC programmable controllers or relay modules, the user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment.

Features:

  • Field selectable 12 or 24VDC, regulated and filtered
  • Modular design
  • Fire/Emergency release input
  • Field selectable manual reset input
  • Auto resetting output circuit protection
  • Isolated 13.5/27VDC battery charger
  • Low battery disconnect
  • Emergency release input
  • Field selectable UBC & California compliant manual power up
  • Input, output and battery status LED's
  • 12" x 12" x 3 3/4" enclosure
  • Choice of output and door control modules


Call 1-800-878-6604 for Bulk / Dealer Pricing!

      Specifications:

      Construction: Solid Stainless Steel
      Model: 1 Amp, Class 2 Output 12” W Cabinet
      Output Voltage: 12/24VDC Voltage 1 Amp
      Input Voltage: 115VAC, 600 mA, 50/60 Hz
      Input Current: 1.0 amps
      Output Current: 0.8 amps Max.
      Battery Charger: 13.5/27VDC, 250 mA
      Cabinet Dimensions: 12” x 12” x 4”, 20 GA
      Certifications: UL Listed, UL 294
      Warranty: 5-Year Manufacturer Warranty
