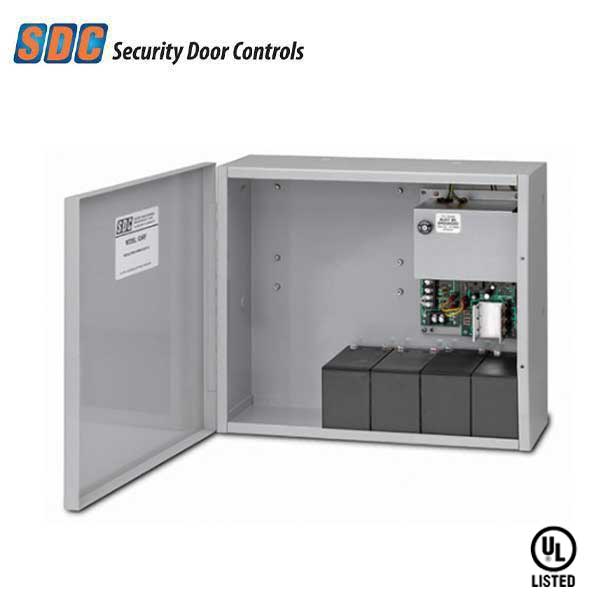

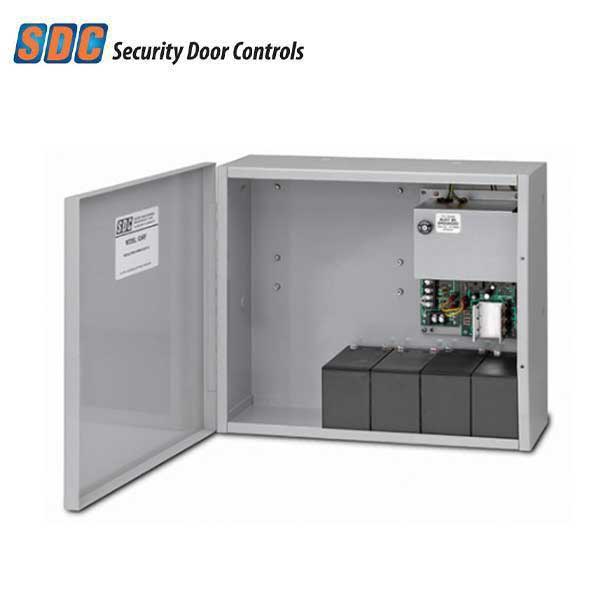

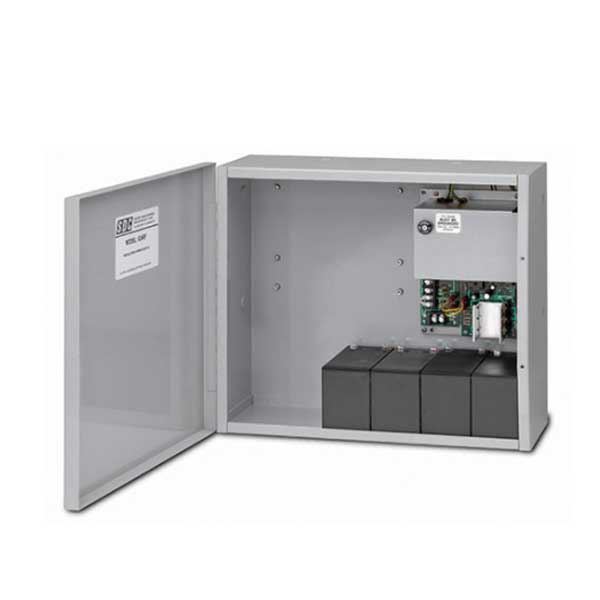

SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated
SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated

SDC - 634 - Low Voltage Power Supply - 16" x 14" Cabinet - 4 Amps - 12/24VDC - Battery Charger - Fire Rated

$475.99 $477.00
Availability: In Stock
Wishlist
  • Product SKU: SDC-634RF
  • NSID: 21963
  • SDC-634RF

    The SDC 634RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty 4 Amp circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. Documentation is provided to ensure a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and auxiliary emergency release interface.

    Features:

    • Field selectable 12 or 24VDC, regulated and filtered
    • Modular design
    • Fire/Emergency release input
    • Field selectable manual reset input
    • Auto resetting output circuit protection
    • Isolated 13.5/27VDC battery charger
    • Isolated Charging Circuit
    • Low battery disconnect
    • Emergency release input
    • Field selectable UBC & California compliant manual power up
    • Input, output and battery status LED's
    • 16” W x 14” H x 6.5” D enclosure
    • Choice of output and door control modules



    $475.99
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

      Specifications:

      Construction: Solid Stainless Steel
      Model: 4 Amp, field select one 4 Amp output, or two 2 Amp class 2 outputs. 16 Gauge Steel
      Output Voltage: 12/24VDC (Regulated)
      Input Voltage: 115 VAC @ 60hz
      Input Protection: 1 Amp, Manually Resettable Circuit Breaker
      Input Current: 1.2 amps Max.
      Output Current: 4 amps
      Battery Charger: 500 mA @ 13.5 or 27VDC
      Batter Charger Protection: Auto Resetting Poly Fuse per Output
      Cabinet Dimensions: 16” W x 14” H x 6.5” D
      Certifications: UL Listed, UL 294
      Warranty: 5-Year Manufacturer Warranty



      Downloads:

      SDC-634RF

      The SDC 634RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty 4 Amp circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. Documentation is provided to ensure a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and auxiliary emergency release interface.

      Features:

      • Field selectable 12 or 24VDC, regulated and filtered
      • Modular design
      • Fire/Emergency release input
      • Field selectable manual reset input
      • Auto resetting output circuit protection
      • Isolated 13.5/27VDC battery charger
      • Isolated Charging Circuit
      • Low battery disconnect
      • Emergency release input
      • Field selectable UBC & California compliant manual power up
      • Input, output and battery status LED's
      • 16” W x 14” H x 6.5” D enclosure
      • Choice of output and door control modules


          Specifications:

          Construction: Solid Stainless Steel
          Model: 4 Amp, field select one 4 Amp output, or two 2 Amp class 2 outputs. 16 Gauge Steel
          Output Voltage: 12/24VDC (Regulated)
          Input Voltage: 115 VAC @ 60hz
          Input Protection: 1 Amp, Manually Resettable Circuit Breaker
          Input Current: 1.2 amps Max.
          Output Current: 4 amps
          Battery Charger: 500 mA @ 13.5 or 27VDC
          Batter Charger Protection: Auto Resetting Poly Fuse per Output
          Cabinet Dimensions: 16” W x 14” H x 6.5” D
          Certifications: UL Listed, UL 294
          Warranty: 5-Year Manufacturer Warranty



          Downloads:
