SDC - 636 - Low Voltage Power Supply - 16" x 14" Cabinet - 6 Amps - 12/24VDC - Battery Charger - Fire Rated

Available to Order
SKU: SDC-636RF
NSID: 21964

Please Note: This product has a lead time

$464.44
$556.99
$464.44

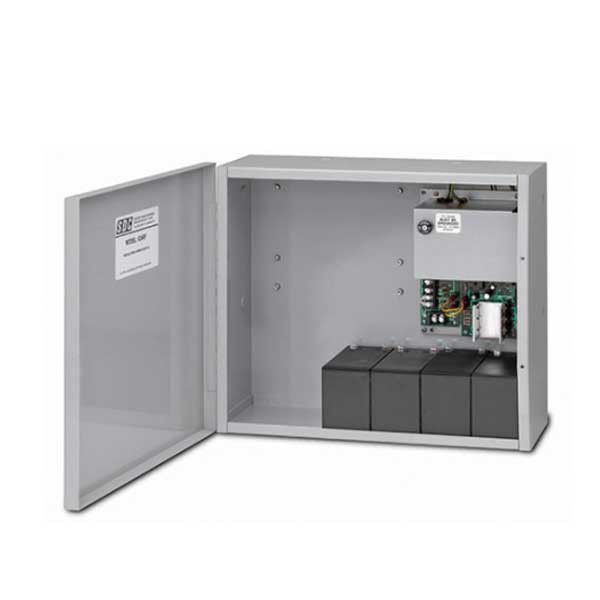

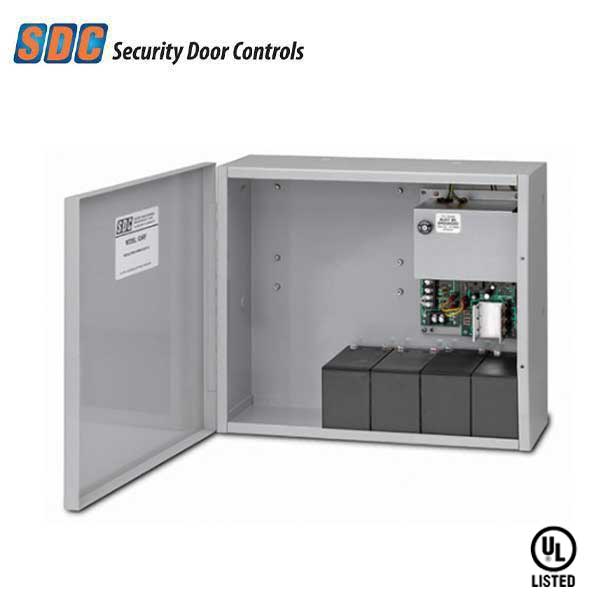

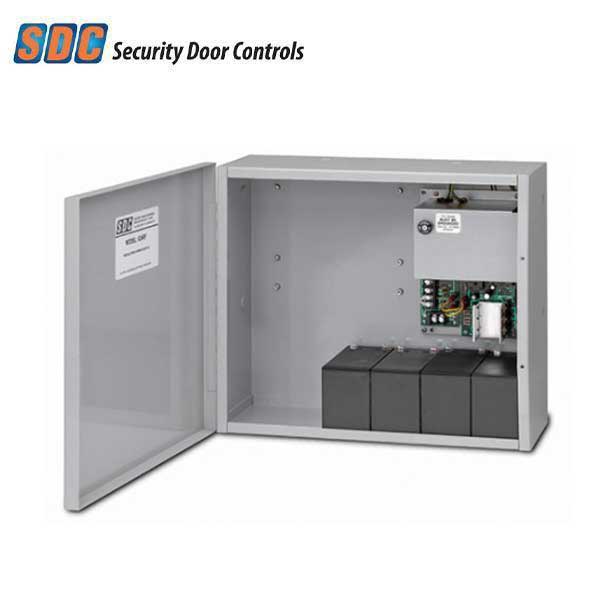

The SDC 636RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty 6 Amp circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. Documentation is provided to ensure a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and auxiliary emergency release interface.

Features:

  • Field selectable 12 or 24VDC, regulated and filtered
  • Modular design
  • Fire/Emergency release input
  • Field selectable manual reset input
  • Auto resetting output circuit protection
  • Isolated 13.5/27VDC battery charger
  • Isolated Charging Circuit
  • Low battery disconnect
  • Emergency release input
  • Field selectable UBC & California compliant manual power up
  • Input, output and battery status LED's
  • 16” W x 14” H x 6.5” D enclosure
  • Choice of output and door control modules


Call 1-800-878-6604 for Bulk / Dealer Pricing!

      Specifications:

      Construction: Solid Stainless Steel
      Model: Selectable One, 6 Amp @ 12VDC or 24VDC or Three, Class 2, 2 Amp @12VDC or 24VDC. 16 Gauge Steel
      Output Voltage: 12/24VDC (Regulated)
      Input Voltage: 1 Amp @115VAC 50/60 Hz
      Input Protection: 2 Amp, Manually Resettable Circuit Breaker
      Input Current: 1.8 amps Max.
      Output Current: 6 amps
      Battery Charger: 500 mA @ 13.5 or 27VDC
      Batter Charger Protection: Auto Resetting Poly Fuse per Output
      Cabinet Dimensions: 16” W x 14” H x 6.5” D
      Certifications: UL Listed, UL 294
      Warranty: 5-Year Manufacturer Warranty
