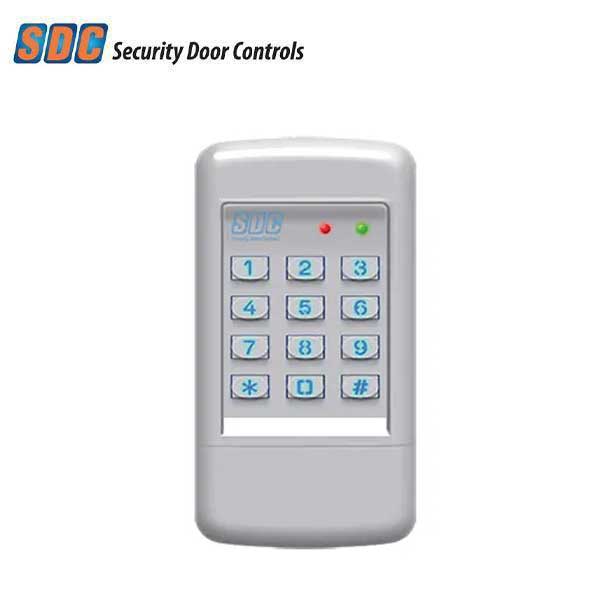

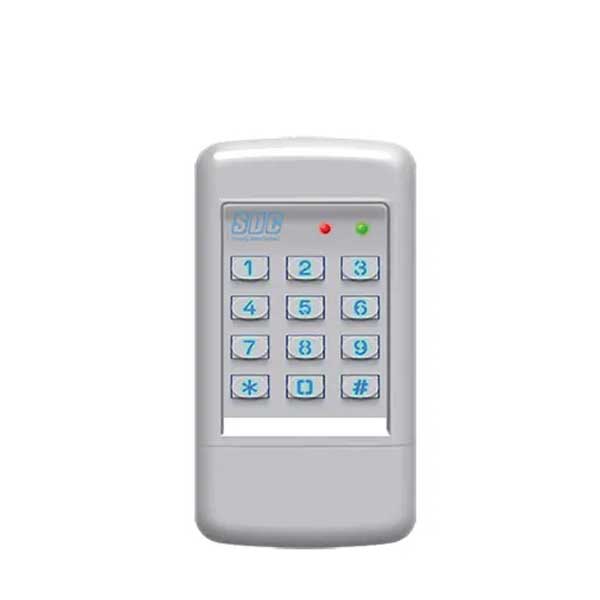

SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal
SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal
SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal
SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal
SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal

SDC - 920 - Weatherized Keypad - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal

$116.00 $138.00
Available: Out of Stock
Wishlist
  • Product SKU: SDC-920
  • SDC-920

    The SDC 920 EntryCheck™ series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

    Features:

    • Digital Keypad with or without Wiegand Output for Universal Compatibility
    • Weather & Vandal Resistant Housing with Tactile Metal Keys
    • 12-Key Illuminated, 3” x 4” Keypad
    • Surface or Single-Gang Mount
    • Built-In Tamper Switch
    • Dual LED Status Indicators
    • Adjustable Audible Annunciation
    • Configurable Illumination: On, Off, Timed


    $116.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification:

Construction: Heavy cast metal body and keypad
Voltage: 12/24 VAC/DC
Current: 30mA Typical, 150mA Maximum
Outputs: Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4
– 100mA @ 30VDC
Temp: -4ºF to +140ºF (-20ºC to +60ºC
Humidity: 5% to 95% Non-Condensing
Finish: Powder Coat Painted Cast Metal
Mount: Surface Mount
Dimensions: 3”W x 5-3/4”H x 1-7/16”D (1.5” Wall Projection)



Downloads:



SDC-920

The SDC 920 EntryCheck™ series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

Features:

  • Digital Keypad with or without Wiegand Output for Universal Compatibility
  • Weather & Vandal Resistant Housing with Tactile Metal Keys
  • 12-Key Illuminated, 3” x 4” Keypad
  • Surface or Single-Gang Mount
  • Built-In Tamper Switch
  • Dual LED Status Indicators
  • Adjustable Audible Annunciation
  • Configurable Illumination: On, Off, Timed


Specification:

Construction: Heavy cast metal body and keypad
Voltage: 12/24 VAC/DC
Current: 30mA Typical, 150mA Maximum
Outputs: Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4
– 100mA @ 30VDC
Temp: -4ºF to +140ºF (-20ºC to +60ºC
Humidity: 5% to 95% Non-Condensing
Finish: Powder Coat Painted Cast Metal
Mount: Surface Mount
Dimensions: 3”W x 5-3/4”H x 1-7/16”D (1.5” Wall Projection)



Downloads:



Compatible With
