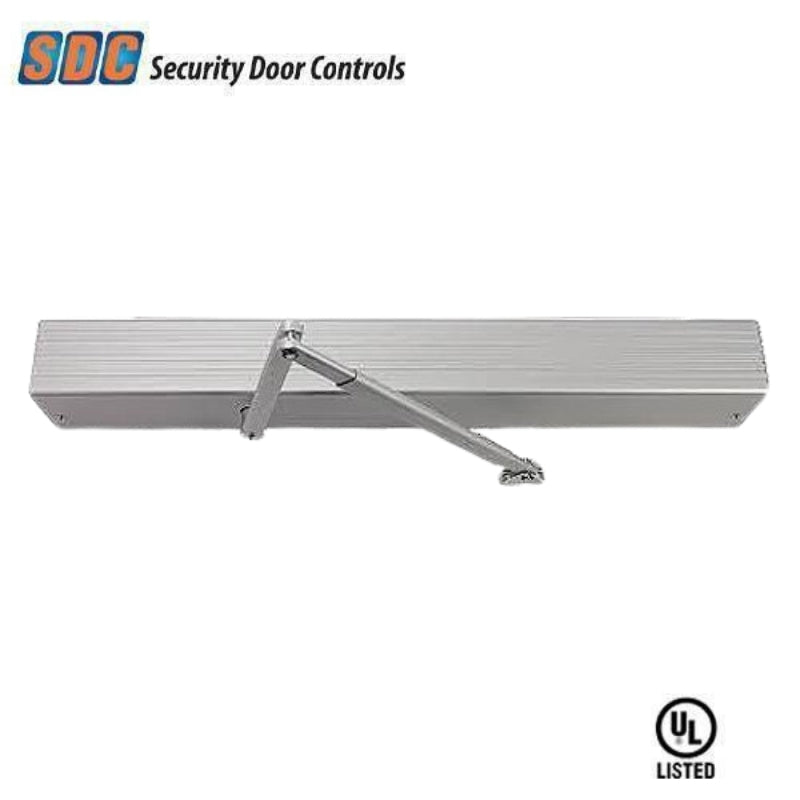

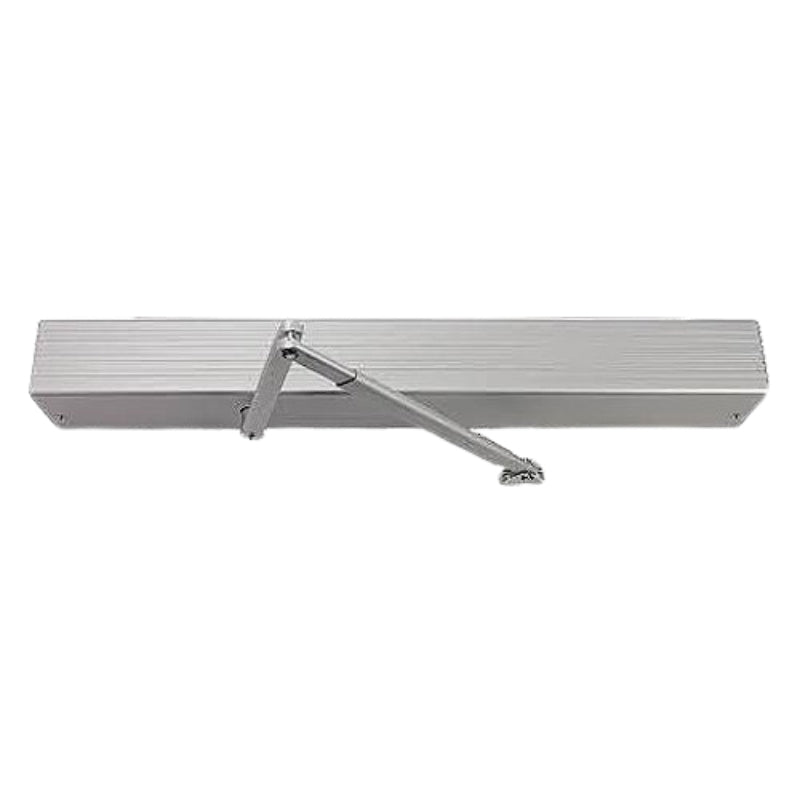

SDC - AUTO1V - AUTO Series Push Arm Assembly with Spindle - Dull Aluminum Finish
SDC - AUTO1V - AUTO Series Push Arm Assembly with Spindle - Dull Aluminum Finish

SDC - AUTO1V - AUTO Series Push Arm Assembly with Spindle - Dull Aluminum Finish

Available to Order
SKU: SDC-AUTO1V
NSID: 78653

Please Note: This product has a lead time

$224.99
$269.98
$224.99



The SDC AUTO1V is part of SDC’s renowned AUTO Series fair ADA-compliant, low-energy automatic door system. This specific model features a push arm assembly with an integrated 35 mm spindle designed for mounting on the push side of a single-swing door. The aluminum arm comes in a dull (unpolished satin) finish and is intended for surface-mounted, top-jamb installation.



Features:

  • AUTO Series compatibility with SDC AUTO1 operators
  • Push-side mechanical arm assembly
  • Includes a 35 mm spindle (standard for push configuration)
  • Constructed from dull aluminum (US28 satin) for a clean, durable aesthetic
  • Non-handed design suitable for left or right installations
  • Fully ADA and ANSI/BHMA A156.19 compliant when paired with the appropriate operator
Call 1-800-878-6604 for Bulk / Dealer Pricing!
SDC AUTO1V – Technical Specifications
Model Number AUTO1V
Application Push arm assembly for single-swing door (push side)
Spindle Size 35 mm
Finish Dull Satin Aluminum (US28)
Housing Width 39" (typical for 36" door opening)
Material Aluminum Alloy
Weight ~22 lb (complete operator assembly; arm is lighter)
Compatibility SDC AUTO Series Operators (non-handed)
Mounting Type Surface-mounted, top jamb
Certifications ANSI/BHMA A156.19, UL 325, ADA Compliant
Country of Origin USA
