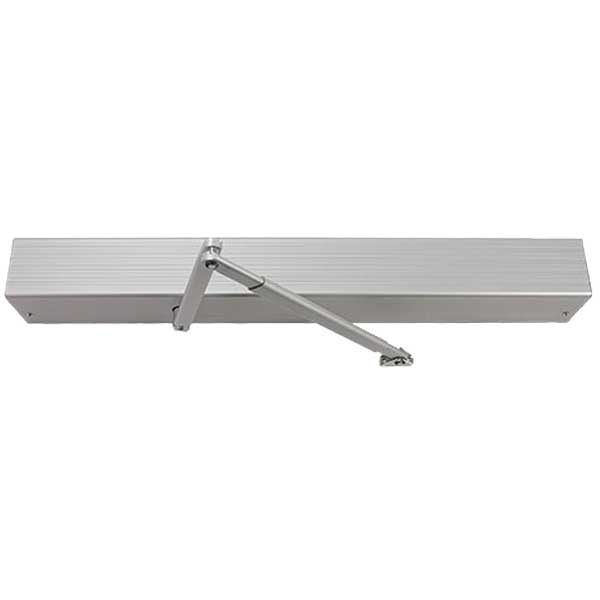

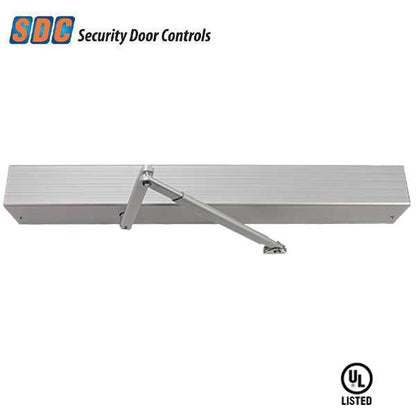

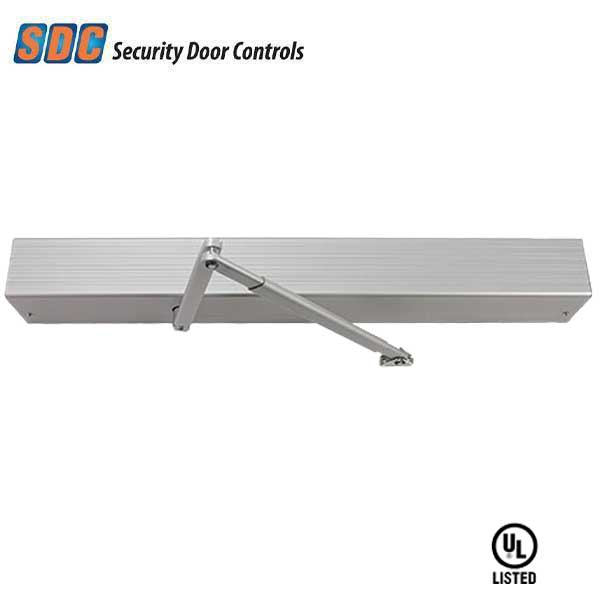

SDC - AUTOS136V - Low Energy Swing Door Operator - PUSH Arm - Non Handed - For Single Interior Doors - 36" - Dark Aluminum - 24V
SDC - AUTOS136V - Low Energy Swing Door Operator - PUSH Arm - Non Handed - For Single Interior Doors - 36" - Dark Aluminum - 24V
Couldn't load pickup availability
The SDC Auto EntryControl Low Energy Swing Door Operator offers true Plug N Play Access Control System Installation. It features an internal, 1.0 Amp+ Accessory/Lock Power Supply to allow for integration with electric latch retraction exit devices, electric strikes, and other electric locking system without adding an extra power supply. A time delay function is also built into the control system eliminating the need for supplemental relays or controls.
It provides hands-free, low-power point of entry door control to help meet all US and Canadian ADA requirements for door installations in retail storefronts, office buildings, campuses and healthcare facilities. The state-of-the-art microprocessor-based unit is self-tuning and self-learning while offering non-handed operation, full mechanical stops and a variety of interface options for sensors, push-plates, fire alarms and electrified locks.
Clear Aluminum Finish
Pull Arm included - Non Handed
36" doors
Details
Auto EntryControl’s non-pivot drive and combination of belt, gear and pulley requires less torque, requires less power, absorbs more abuse, and is quieter than other automatic door openers while complying with all US and Canadian ADA requirements. On-board diagnostics simplifies troubleshooting for ease of installation and all Auto EntryControl’s can be easily configured for surface mounted push/pull or overhead concealed applications.
Features:
- ADA Compliant
- Meets ANSI A156.19
- Certified for use as fire door operators (3 hour rating)
- Self-Tuning, Self-Learning
- Minimum 5 seconds from close to open
- Stays open for 5 seconds
- Force: 15 lbs -6.8 kg
- Push or Pull (In door, Out swing)
- Activation: Knowing Act
- Optional Safety Device
- Power: 1A, 100W
- Non-Handed
- Extremely Quiet Operation
| Application | Single Interior Doors |
| Header Size: | 39" |
| Power Supply: | 115 VAC (+6%, ‐10%) 60Hz |
| Motor: | 24 VDC Permanent Magnet With Belt Driven Encoder |
| Header Dimensions: | Width: 4‐1/2” Depth: 4‐7/8” Length: 39” (for 36" doors) |
| Fused Protection: | 3.5A Fuse (“F1” located on I/O Board) |
| Motor Assembly Weight: | 22 lbs. Per Operator Drive Assembly |
| Ambient Operating Temperature: | ‐4° to 131° F |
| Ingress Protection: | IP23 (protection from spray water up to 60° from vertical) |
| Maximum Door Weight: | 342 lbs. |
| 24 VDC Accessories/Lock Power Supply: | 24 VDC / 1A max |
| Adjustable Speeds & Timers Potentiometers: | Auto Opening Speed Auto Closing Speed Hold Open Time Closing Speed w/ Power Off |
| External Selector Switch Functions: | Automatic Hold Open Manual (Off/Night) |
| Standard Control Outputs: | 24 VDC Power Supply Lock Relay Door Status (Fully Open and Fully Closed) Malfunction Alarm Signal |
| Standard Control Inputs: | Interior Activation Exterior Activation Emergency Shutdown Fire Alarm Input Stop Safety Device Input (Pull side presence sensor) |
