SDC - E1200 - Single Magnetic Lock - Surface Mount - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1 - UHS Hardware
SDC - E1200 - Single Magnetic Lock - Surface Mount - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1 - UHS Hardware

SDC - E1200 - Single Magnetic Lock - Surface Mount - 1200lbs. - 12/24VDC - Satin Aluminum - Grade 1

Available to Order
SKU: SDC-E1200-628
NSID: 32077

Please Note: This product has a lead time

$186.89
$249.95
$186.89

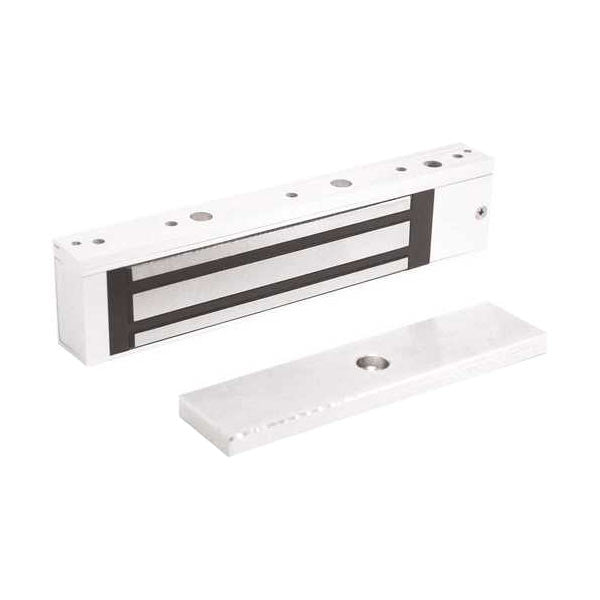

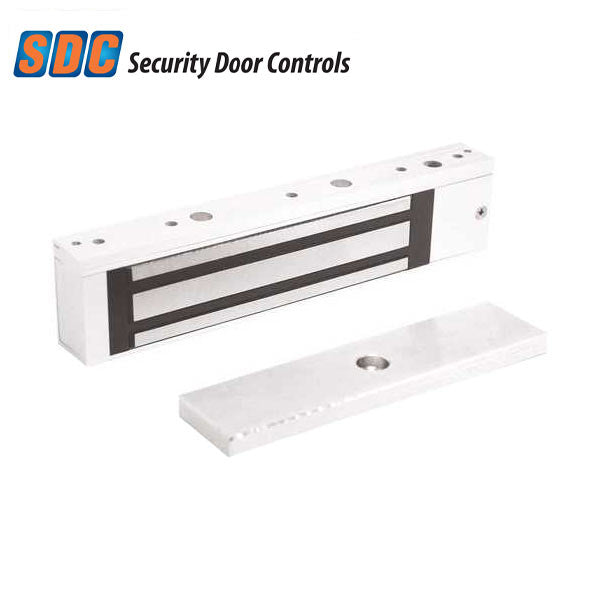

The SDC E1200 is a fully featured magnetic lock with a non-obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. The E1200 Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. They are easy to install with the included interlocking quick mount assembly.

Features:

  • Interlocking quick mount assembly
  • Uniform Design & Installation
  • Choice of self drilling and tapping mounting
    screws or machine screws
  • Field selectable dual voltage
  • Voltage and current spike protection
  • Instant release anti-residual magnetism
    circuitry
  • Wire access chamber with terminal block
  • Door position status (DPS)
  • Bond alert status (BAS)
  • Visual status indicator (LED)
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Housing: Aluminum
Lock Function: Electromagnetic Lock
Holding Force: 1,200 lbs
Voltage: 12/24VDC, field selectable
Current: 260 mA @ 24 VDC 505 mA @ 12 VDC
Dimensions: 10.5 (L) x 2.875 (H) x 1.625 (D) in
Armature Dimensions: 7.3125 (L) x 2.375 (H) x 0.625 (D) in
Finish: Satin Aluminum - 628
Certifications: Grade 1, UL Listed
Warranty: 5 Year Warranty
