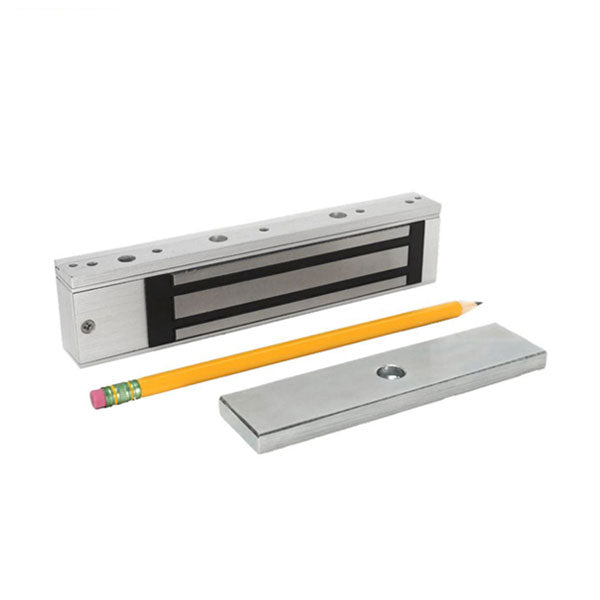

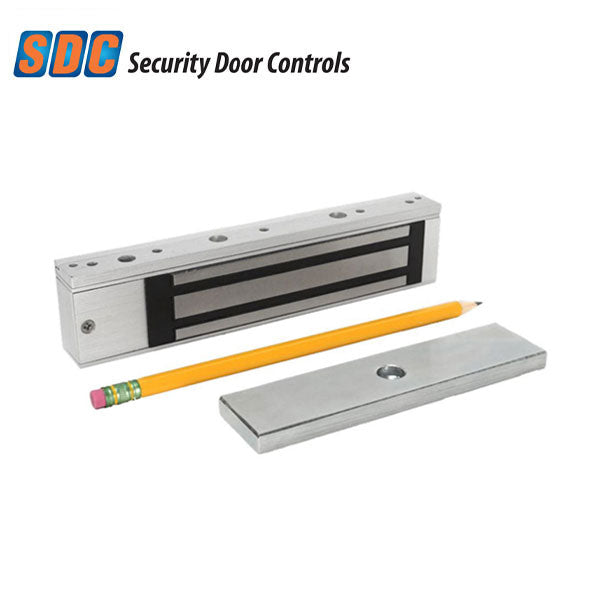

SDC - E300 - Micro Single Magnetic Lock - Surface Mount - 300lbs. - 12/24VDC - Satin Aluminum - Grade 1 - UHS Hardware
SDC - E300 - Micro Single Magnetic Lock - Surface Mount - 300lbs. - 12/24VDC - Satin Aluminum - Grade 1 - UHS Hardware

SDC - E300 - Micro Single Magnetic Lock - Surface Mount - 300lbs. - 12/24VDC - Satin Aluminum - Grade 1

In Stock
SKU: SDC-E300-628
NSID: 32082

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$120.82
$164.95
$120.82

Eliminate keys and expand the reach of access control systems to drawers, cabinets and lockers – any critical use - where the application of a compact, specialized electromagnetic lock provides a higher level of security. SDC’s E300 micro electromagnetic cabinet locks provide a connected access control solution that is virtually maintenance free and has a lock status output for remote monitoring and system application needs.

The compact size allows easy installation in small cabinets or restricted areas. No special tools are required.

Features:

  • Comes with 300lb Holding Forces
  • Interlocking quick mount assembly
  • Uniform Design & Installation
  • Field selectable dual voltage
  • Voltage and current spike protection
  • Captive lock mounting screws
  • Self-drilling and tapping sheet metal screws
  • Bond alert status (BAS)
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Housing: Aluminum
Lock Function: Electromagnetic Lock
Holding Force: 300 lbs
Voltage: 12/24VDC, field selectable
Current: 180 mA @ 24 VDC
360 mA @ 12 VDC
Dimensions: 7" L x 1.625" H x .875" D
Finish: Satin Aluminum - 628
Bond Alert Status (BAS): SPDT 250 mA @ 30 VDC Resistive
Certifications: Grade 1, UL Listed
Warranty: 5 Year Warranty
