SDC - E600 - Single Magnetic Lock - Surface Mount - 600lbs. - 12/24VDC - Satin Aluminum - Grade 1
Available to Order
SKU:
SDC-E600-628
NSID:
32078
- $153.82
-
$189.97 - $153.82
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

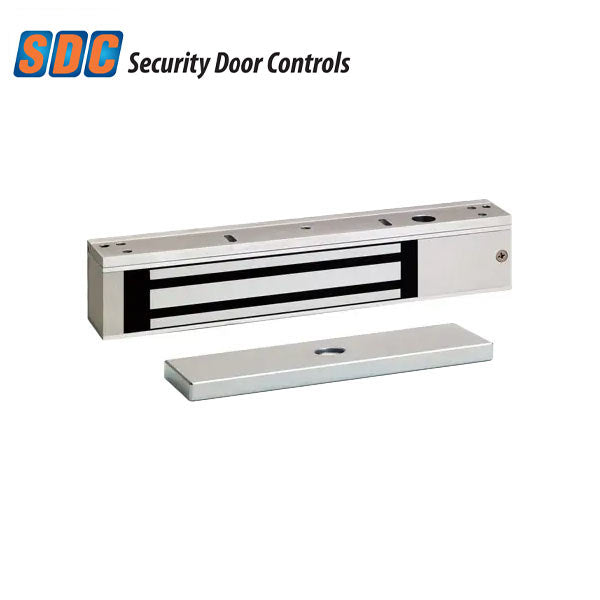

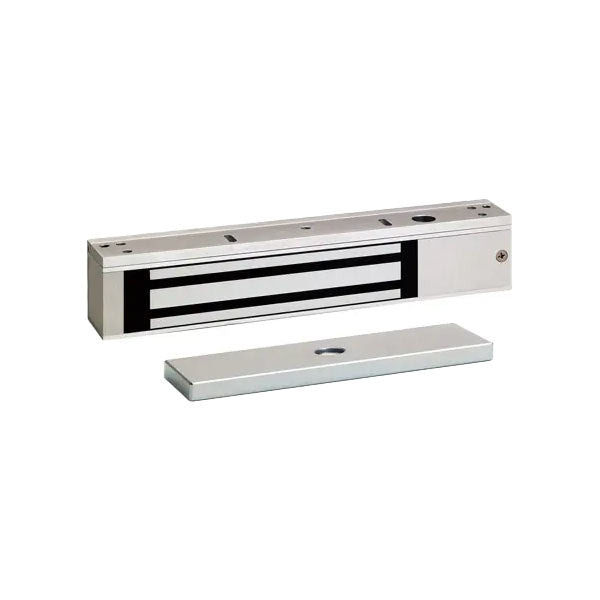

The SDC E600 is a fully featured magnetic locks with a non-obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. The E600 Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. They are easy to install with the included interlocking quick mount assembly.
Features:
- Comes with 600lb Holding Forces
- Interlocking quick mount assembly
- Uniform Design & Installation
- Choice of self drilling and tapping mounting
screws or machine screws - Field selectable dual voltage
- Voltage and current spike protection
- Instant release anti-residual magnetism
circuitry - Wire access chamber with terminal block
- Door position status (DPS)
- Visual status indicator (LED)
Specifications:
| Housing: | Aluminum |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 600 lbs / 272 kg |
| Voltage: | 12/24VDC, field selectable |
| Current: | 500 mA @ 12VDC; 250 mA @ 24VDC |
| Dimensions: | 9-7/8” L x 2-7/8” H x 1” D |
| Finish: | Satin Aluminum - 628 |
| Certifications: | Grade 1, UL Listed |
| Warranty: | 5 Year Warranty |
Downloads:
