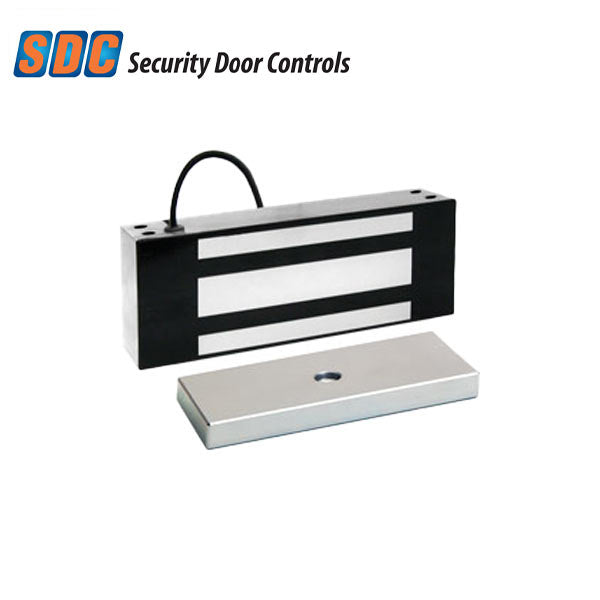

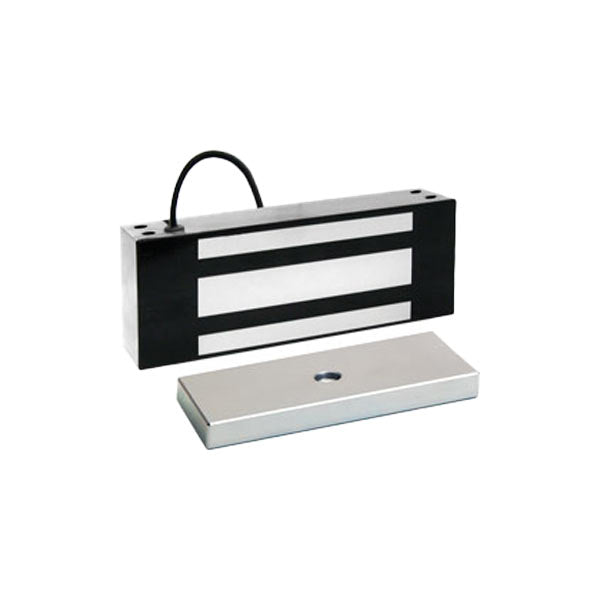

SDC - E6200 - Single Magnetic Lock - Surface Mount - Weatherized - 1200lbs. - 12/24VDC - Satin stainless steel - Grade 1

SDC - E6200 - Single Magnetic Lock - Surface Mount - Weatherized - 1200lbs. - 12/24VDC - Satin stainless steel - Grade 1

Available to order
SKU SDC-E6200-628 NSID 32076
$347.81$417.37On Sale You save $69.56 (17%)
Please Note: This product has a lead time

The SDC E6200 Series full featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. The E6200 Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands

Features:

  • Comes with 1200lb Holding Forces
  • Door position sensor. Indicates door open and door closed
  • Uniform Design & Installation
  • Identical Housing, Template & Accessories
  • Stainless steel machine screws and blind nuts
  • Epoxy sealed electronics, tamper resistant and weatherized for indoor and outdoor use
  • Magnetic Bond Sensor indicates door locked with full holding power

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Housing: Stainless steel epoxy filled, all internal components sealed and weatherized
Lock Function: Electromagnetic Lock
Holding Force: 1200 lbs / 545 kg
Wiring: 10 Ft [3.05m] jacketed, stranded conductor cable for power input and status outputs
Circuitry: Voltage and current spike protection and instant release anti-residual magnetism circuitry
Voltage: 12/24VDC, field selectable
Current: 250mA @ 12VDC; 125mA @ 24VDC
Dimensions: 8-3/4”L x 2-1/8”H x 1-1/4”D
Finish: Satin Stainless Steel - 630
Warranty: 5 Year Warranty
