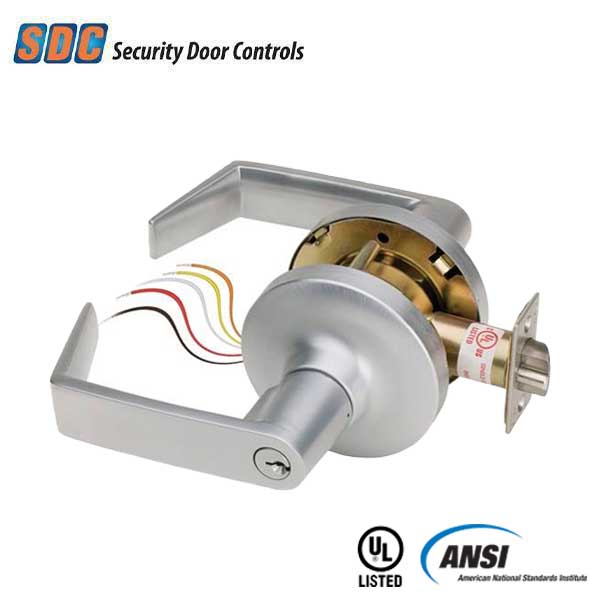

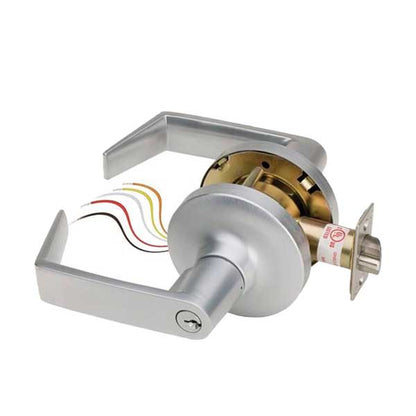

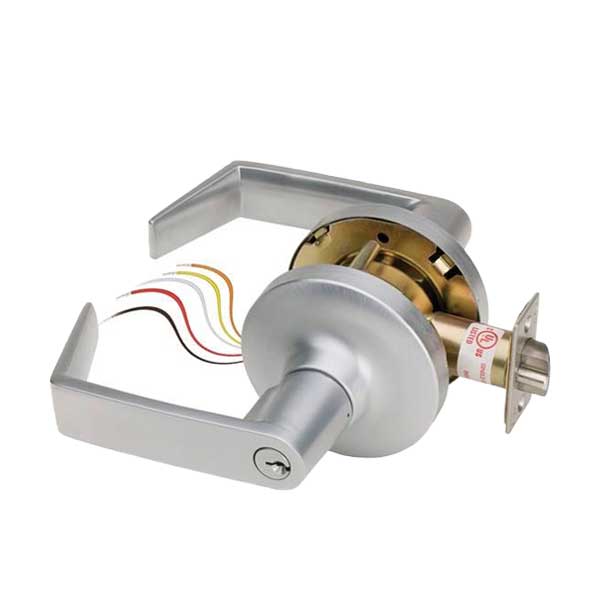

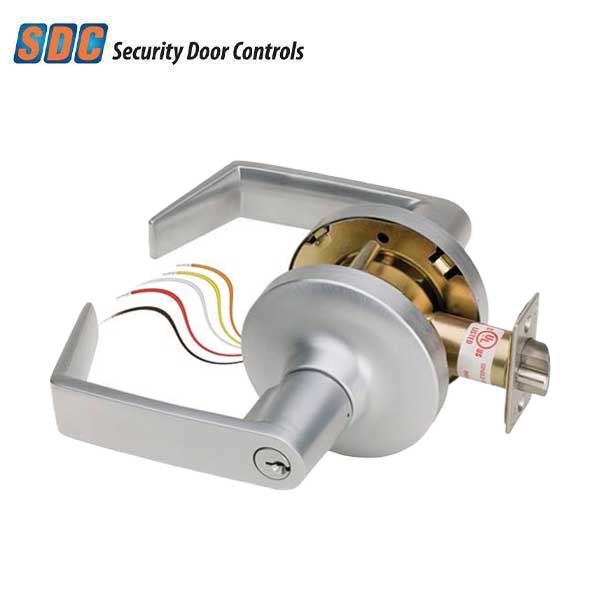

SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Eclipse Lever - 12/24VDC - Satin Chrome - Grade 1
- Product SKU: SDC-Z7250EQ-626
- NSID: 32157
-
SDC-Z7250EQ-626
The Electra Pro Z7200 SDC's premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard. These Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.
Features:
- Ideal for high usage environments
- Eclipse lever
- Vandal resistant lever clutch mechanism
- Independent power return springs for effective lever action and prevention of lever sag
- ANSI Grade 1 Heavy Duty
- CSFM and MEA Listed
- ADA compliant
- UL Listed for 3 Hr 'A' Label Fire Rated Doors
Specifications:
| Lock Function: | Failsafe - Electronically Locked - Clutch, SPDT Output |
| Lever | Eclipse Lever Trim |
| Cylinder: | Schlage "C" Keyway |
| Voltage: | Dual 12/24VDC input |
| Current: | 600/300mA @ 12/24VDC |
| Latch Status Output: | SPDT 3 Amps @ 30VDC |
| Latch Bolt: | 9/16” Throw |
| Backset: | 2-3/4” |
| Strike: | 4-7/8” ANSI A115.2 |
| Door Thickness: | 1-3/4” to 2-1/8” |
| Finish: | Satin Chrome - 626 |
| Certifications: | ANSI Certified Grade 1 - UL Listed for 3 Hr 'A' Label Fire Rated Doors - CSFM and MEA Listed - ADA Compliant |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
