SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1
SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1

SDC - Z7250 - Electrified Cylindrical Lockset - Fail Safe - Galaxy Lever - 12/24VDC - Satin Chrome - Grade 1

$273.00 $327.99
Available: Out of Stock
Wishlist
  • Product SKU: SDC-Z7250GQ
  • SDC-Z7250GQ

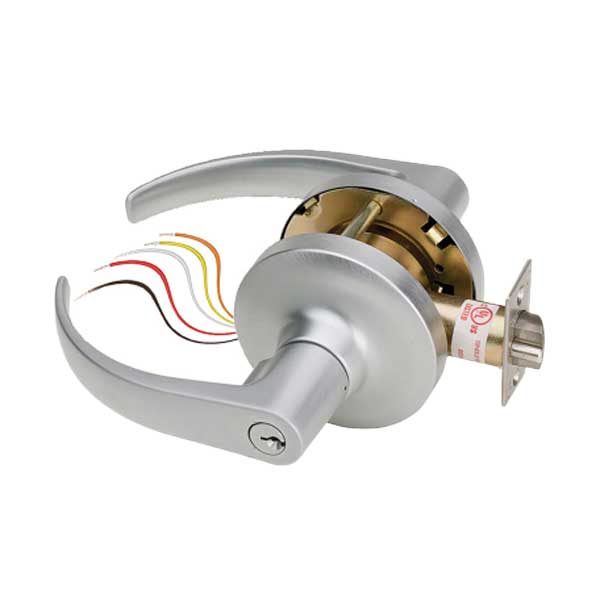

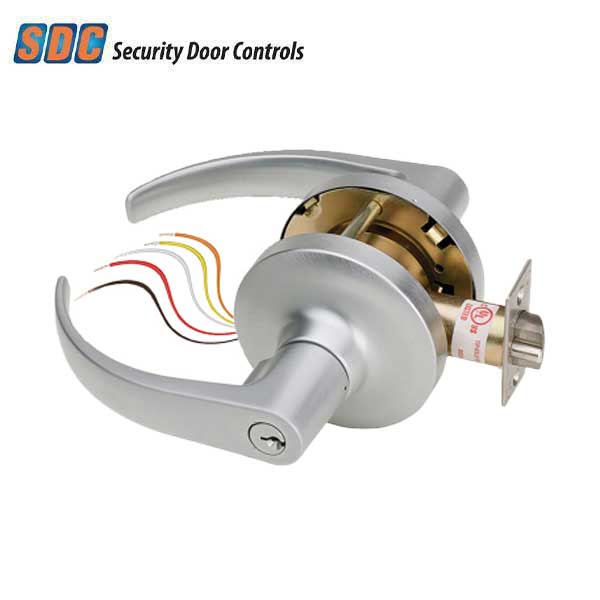

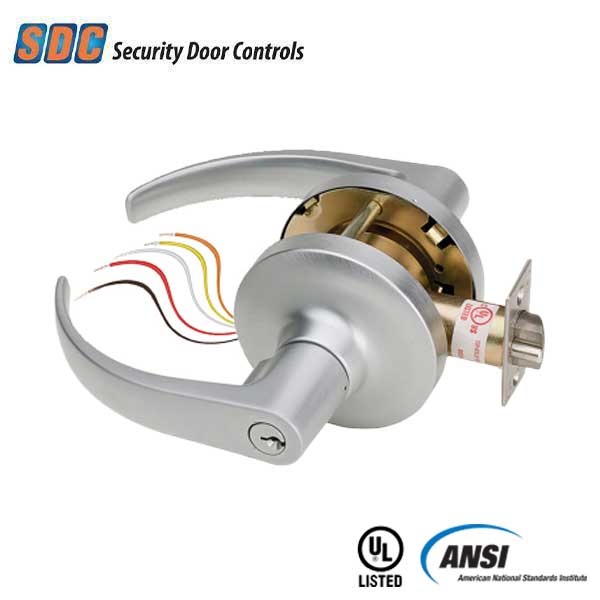

    The Electra Pro Z7200 SDC's premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard. These Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

    Features:

    • Ideal for high usage environments
    • Galaxy lever
    • Vandal resistant lever clutch mechanism
    • Independent power return springs for effective lever action and prevention of lever sag
    • ANSI Grade 1 Heavy Duty
    • CSFM and MEA Listed
    • ADA compliant
    • UL Listed for 3 Hr 'A' Label Fire Rated Doors


    $273.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Lock Function: Failsafe - Electronically Locked - Clutch, SPDT Output
Lever  Galaxy Lever Trim
Cylinder: Schlage "C" Keyway
Voltage: Dual 12/24VDC input
Current: 600/300mA @ 12/24VDC
Latch Status Output: SPDT 3 Amps @ 30VDC
Latch Bolt: 9/16” Throw
Backset: 2-3/4”
Strike: 4-7/8” ANSI A115.2
Door Thickness: 1-3/4” to 2-1/8”
Finish: Satin Chrome - 626
Certifications: ANSI Certified Grade 1 - UL Listed for 3 Hr 'A' Label Fire Rated Doors - CSFM and MEA Listed - ADA Compliant
Warranty: 5-Year Manufacturer Warranty



Downloads:

SDC-Z7250GQ

The Electra Pro Z7200 SDC's premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard. These Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Features:

  • Ideal for high usage environments
  • Galaxy lever
  • Vandal resistant lever clutch mechanism
  • Independent power return springs for effective lever action and prevention of lever sag
  • ANSI Grade 1 Heavy Duty
  • CSFM and MEA Listed
  • ADA compliant
  • UL Listed for 3 Hr 'A' Label Fire Rated Doors


Specifications:

Lock Function: Failsafe - Electronically Locked - Clutch, SPDT Output
Lever  Galaxy Lever Trim
Cylinder: Schlage "C" Keyway
Voltage: Dual 12/24VDC input
Current: 600/300mA @ 12/24VDC
Latch Status Output: SPDT 3 Amps @ 30VDC
Latch Bolt: 9/16” Throw
Backset: 2-3/4”
Strike: 4-7/8” ANSI A115.2
Door Thickness: 1-3/4” to 2-1/8”
Finish: Satin Chrome - 626
Certifications: ANSI Certified Grade 1 - UL Listed for 3 Hr 'A' Label Fire Rated Doors - CSFM and MEA Listed - ADA Compliant
Warranty: 5-Year Manufacturer Warranty
