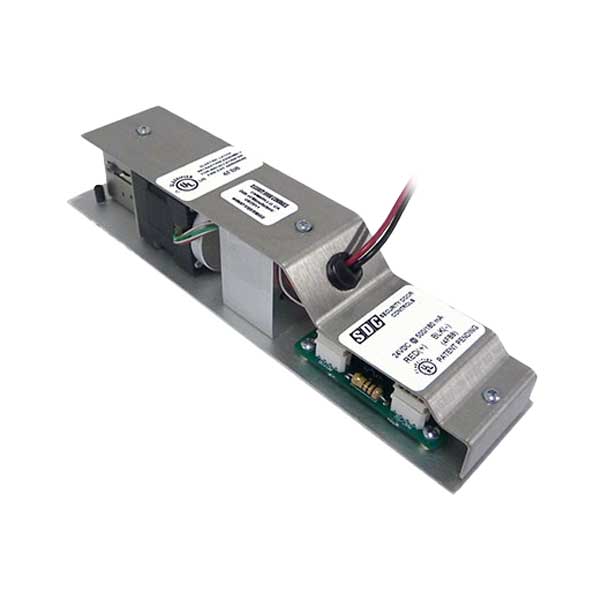

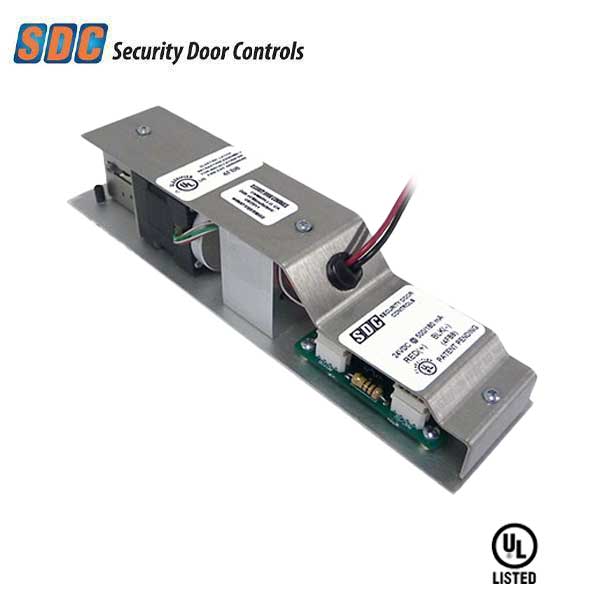

SDC - LR100FAK-EM - Electric Latch Retraction Kit - External Module - 24V - For Falcon 1690 & 1790 Series - 33" Doors
- Product SKU: SDC-LR100FAK-EM
- NSID: 21984
-
SDC-LR100FAK-EM
The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
This EM (External Module) Model has an external controller board which is intended to gain about 3/4" to an 1" of spacing within the device.Will Only Work with Falcon 1690 & 1790 Series
Features:
- Motorized Electric Latch Retraction & Dogging for Fire Rated & Non Fire Rated Devices
- Retrofits select exit device brands without removing device from the Door
- Only Latch head cover and end cover plate removable required for most other brands
- Low 700 mA Inrush, 200 mA Continuous @ 24VDC
- For access control and sustained dogging applications
- Automatic re-trigger if device does not pull on first try
- Eliminates need for costly replacement of existing exit device
- Significantly less labor and costs compared to competitive
retrofit kits - Low current enables longer wire runs with smaller gauge wire
- No door sequencers required for pairs of manual doors
- For Door Size 33"
- UL Listed
SDC-LR100FAK-EM
The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
This EM (External Module) Model has an external controller board which is intended to gain about 3/4" to an 1" of spacing within the device.
Will Only Work with Falcon 1690 & 1790 Series
Features:
- Motorized Electric Latch Retraction & Dogging for Fire Rated & Non Fire Rated Devices
- Retrofits select exit device brands without removing device from the Door
- Only Latch head cover and end cover plate removable required for most other brands
- Low 700 mA Inrush, 200 mA Continuous @ 24VDC
- For access control and sustained dogging applications
- Automatic re-trigger if device does not pull on first try
- Eliminates need for costly replacement of existing exit device
- Significantly less labor and costs compared to competitive
retrofit kits - Low current enables longer wire runs with smaller gauge wire
- No door sequencers required for pairs of manual doors
- For Door Size 33"
- UL Listed
