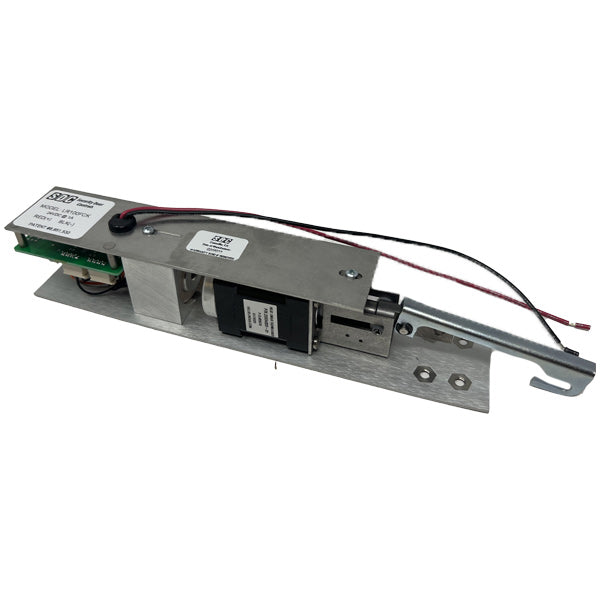

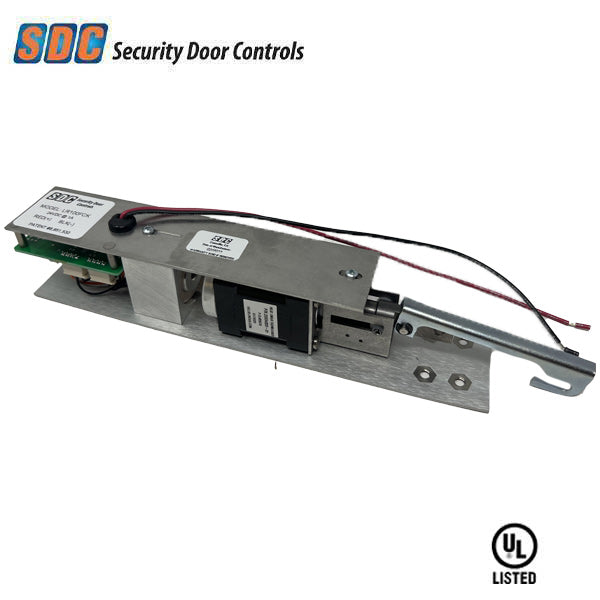

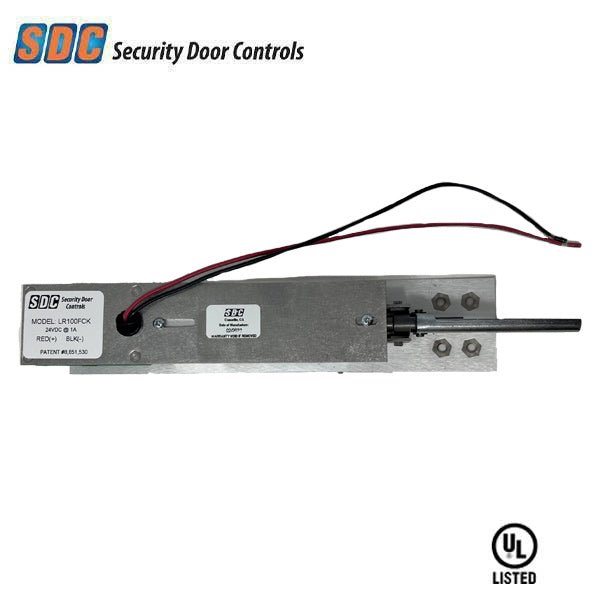

SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors
SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors
SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors
SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors
SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors

SDC - LR100FCK - Electric Latch Retraction Kit - 24V - For First Choice 3600 & 3700 Series - 36" Doors

$396.80 $425.55
Available: Out of Stock
Wishlist
  • Product SKU: SDC-LR100FCK
  • SDC-LR100FCK
    Item number: XXXX

    The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

    Will Only Work with First Choice 3600 & 3700 Series

    Features:

    • Motorized Electric Latch Retraction & Dogging for Fire Rated & Non Fire Rated Devices
    • Retrofits select exit device brands without removing device from the Door
    • Only Latch head cover and end cover plate removable required for most other brands
    • Low 700 mA Inrush, 200 mA Continuous @ 24VDC
    • For access control and sustained dogging applications
    • Automatic re-trigger if device does not pull on first try
    • Eliminates need for costly replacement of existing exit device
    • Significantly less labor and costs compared to competitive
      retrofit kits
    • Low current enables longer wire runs with smaller gauge wire
    • No door sequencers required for pairs of manual doors
    • For Standard Door Size 36"
    • UL Listed

    $396.80

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

SDC-LR100FCK
Item number: XXXX

The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

Will Only Work with First Choice 3600 & 3700 Series

Features:

  • Motorized Electric Latch Retraction & Dogging for Fire Rated & Non Fire Rated Devices
  • Retrofits select exit device brands without removing device from the Door
  • Only Latch head cover and end cover plate removable required for most other brands
  • Low 700 mA Inrush, 200 mA Continuous @ 24VDC
  • For access control and sustained dogging applications
  • Automatic re-trigger if device does not pull on first try
  • Eliminates need for costly replacement of existing exit device
  • Significantly less labor and costs compared to competitive
    retrofit kits
  • Low current enables longer wire runs with smaller gauge wire
  • No door sequencers required for pairs of manual doors
  • For Standard Door Size 36"
  • UL Listed

Downloads:

Compatible With
