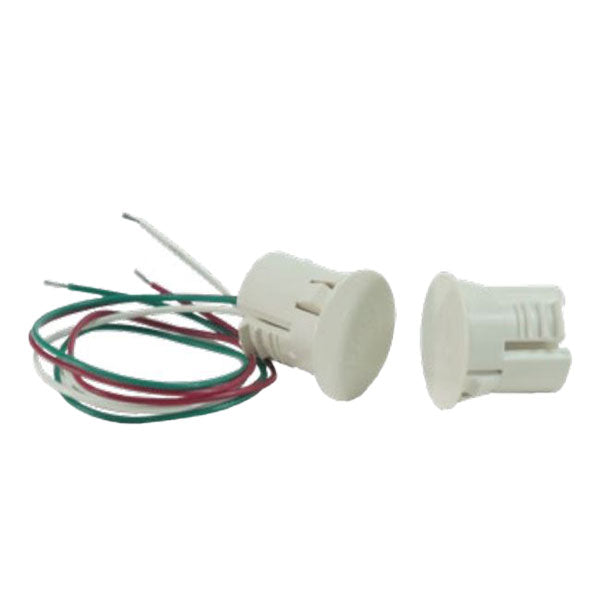

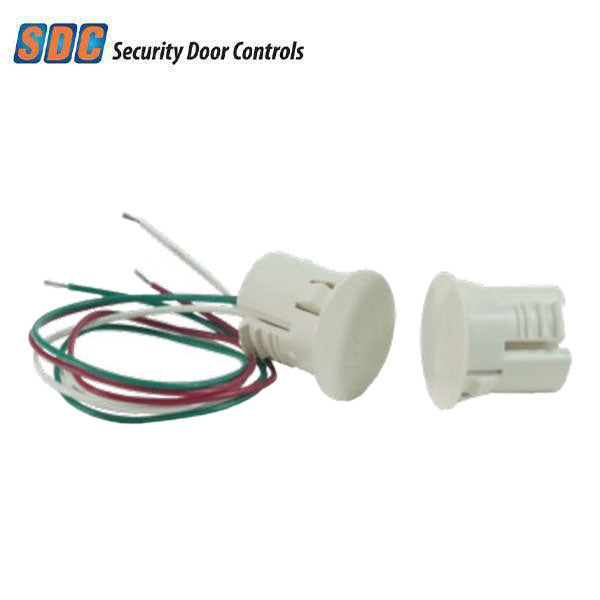

SDC - MC-4 - Door Position Sensor - Magnetic Switch - SPDT - Fire Rated - 30VDC
Available to Order
SKU:
SDC-MC-4
NSID:
32165
- $35.31
-
$40.93 - $35.31
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SDC’s MC series sensors employ magnetic contact switches to provide a cost-effective means of monitoring door position status (DPS). DPS monitors the current position of the door, open or closed. DPS switches change state when the door is opened or closed. Installed in the edge of the door and door frame, DPS switches are wired into remote devices, typically alarm panels or door controllers, to notify facility management of a change in state - aiding in an access control system’s integrity.
More Information Below:
Specifications:
| Type: | DPS Monitoring, Recessed Magnetic Switch |
| Door Gap (Max): | 1/2” |
| Contact: | SPDT |
| Rating: | 50 mA @ 30 VDC Resistive |
| Fire rated: | Positive Pressure 3 hours |
| Dimensions: | 3/4” Diameter |
| Depth: | 1” |
| Certifications: |
UL 10C |
| Manufacturer's Warranty: | 3 Years |
