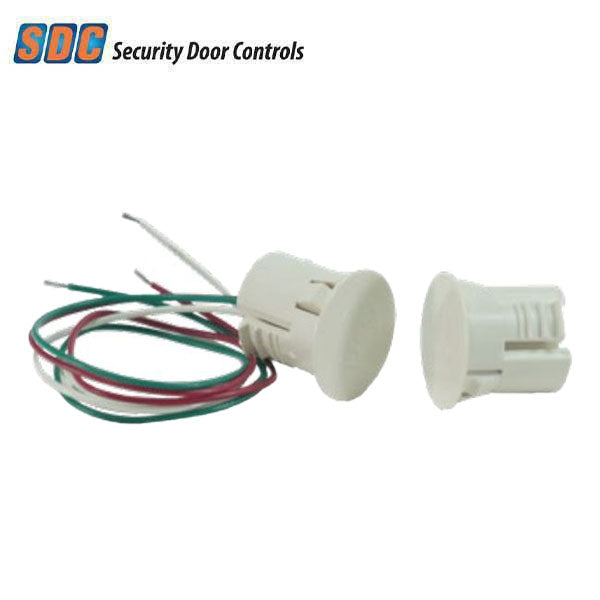

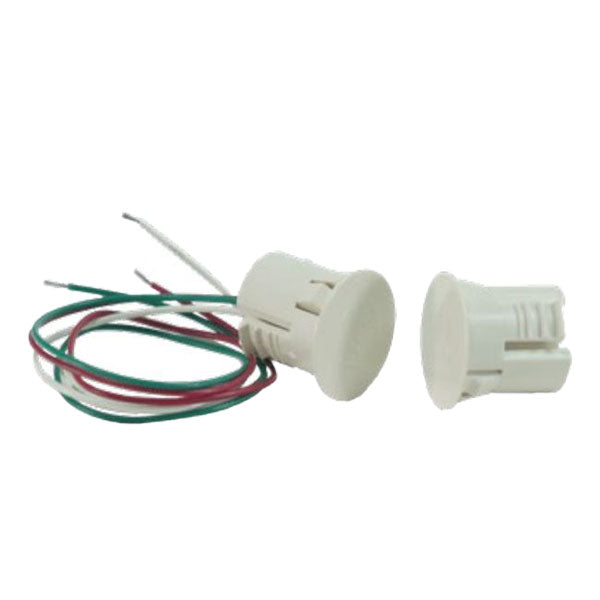

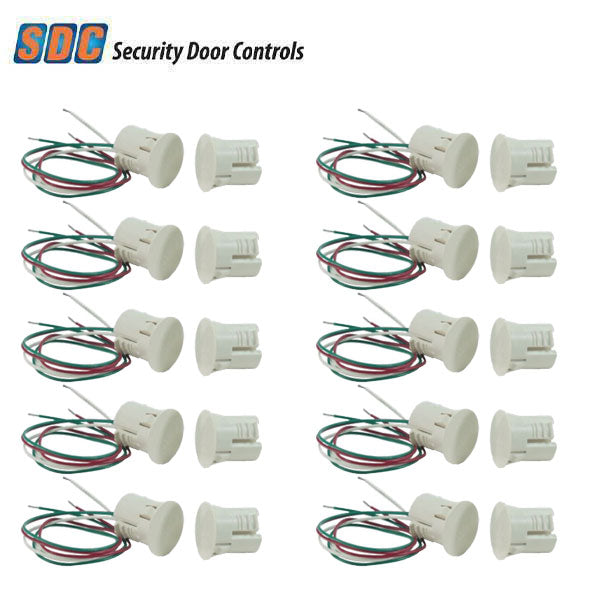

SDC - MC-4 - Door Position Sensor - Magnetic Switch - SPDT - Fire Rated - 30VDC - Pack of 10

SDC - MC-4 - Door Position Sensor - Magnetic Switch - SPDT - Fire Rated - 30VDC - Pack of 10

Available to order
SKU SDC-MC-4PAK NSID 32166
$311.25$393.16On Sale You save $81.91 (21%)
Please Note: This product has a lead time

SDC’s MC series sensors employ magnetic contact switches to provide a cost-effective means of monitoring door position status (DPS). DPS monitors the current position of the door, open or closed. DPS switches change state when the door is opened or closed. Installed in the edge of the door and door frame, DPS switches are wired into remote devices, typically alarm panels or door controllers, to notify facility management of a change in state - aiding in an access control system’s integrity.

More Information Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Type: DPS Monitoring, Recessed Magnetic Switch
Quantity: 10 Pack
Door Gap (Max): 1/2”
Contact: SPDT
Rating: 50 mA @ 30 VDC Resistive
Fire rated: Positive Pressure 3 hours
Dimensions: 3/4” Diameter
Depth: 1”
Certifications:
 UL 10C
Manufacturer's Warranty: 3 Years
