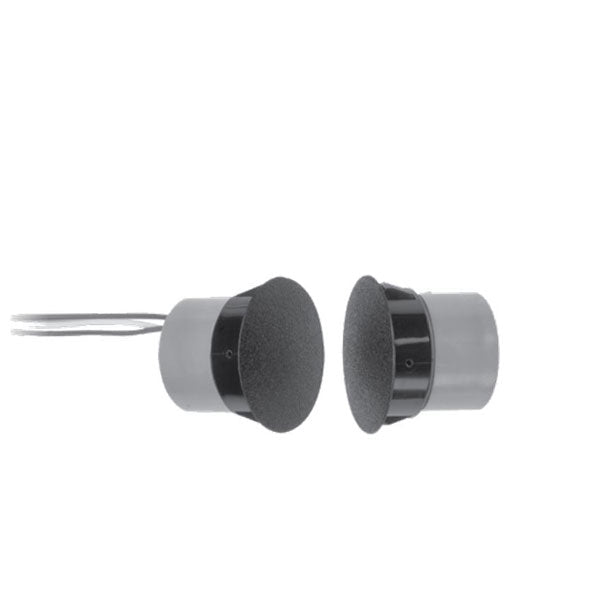

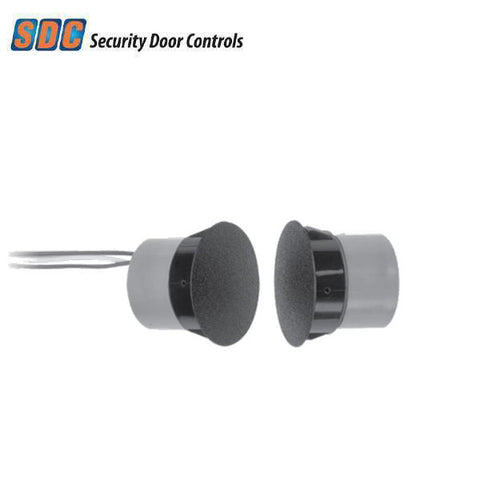

SDC - MC-7 - Door Position Sensor - High Security Magnetic Switch - SPDT - 30VDC
In Stock
SKU:
SDC-MC-7
NSID:
32167
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $47.02
-
$55.30 - $47.02
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SDC’s MC series sensors employ magnetic contact switches to provide a cost-effective means of monitoring door position status (DPS). DPS monitors the current position of the door, open or closed. DPS switches change state when the door is opened or closed. Installed in the edge of the door and door frame, DPS switches are wired into remote devices, typically alarm panels or door controllers, to notify facility management of a change in state - aiding in an access control system’s integrity.
More Information Below:
Specifications:
| Type: | DPS Monitoring, High Security Recessed Magnetic Switch |
| Door Gap (Max): | 1/2” |
| Contact: | SPDT |
| Rating: | 50 mA @ 30 VDC Resistive |
| Dimensions: | 3/4” Diameter |
| Depth: | 1” |
| Manufacturer's Warranty: | 5 Years |
